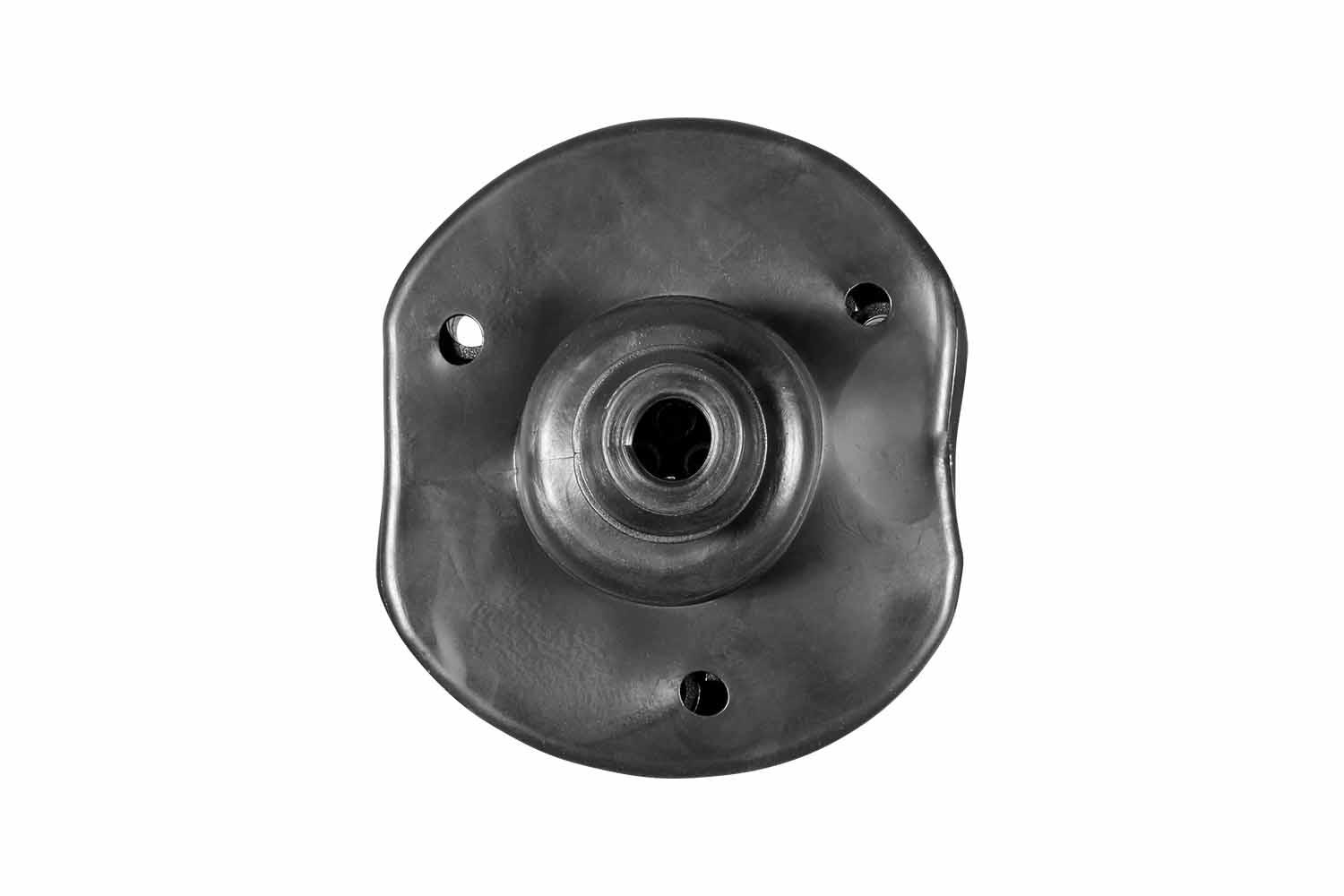

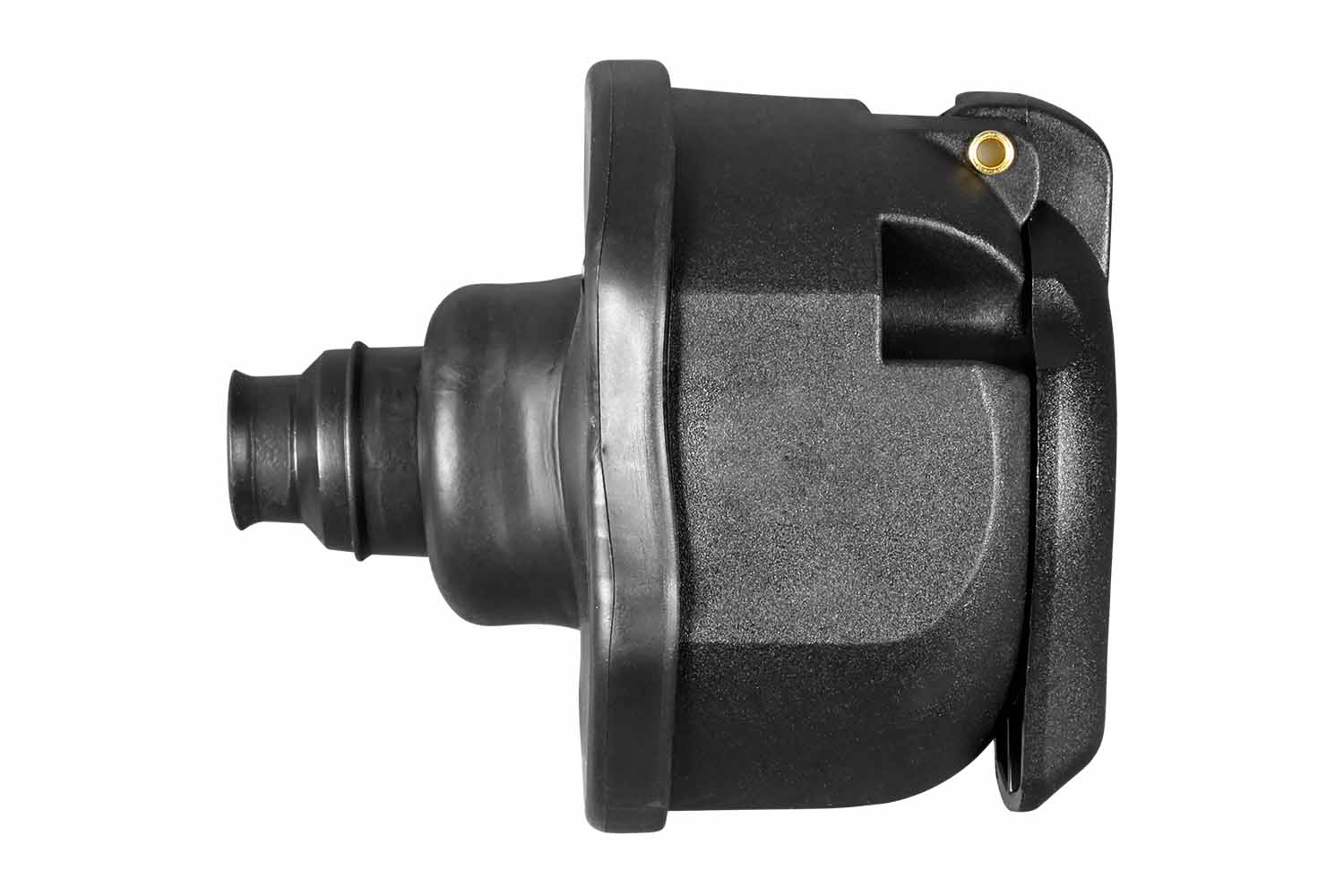

HELLA 8JB 005 949-001 Socket

Reference 8JB 005 949-001

Brand HELLA

€21.68

€19.51 Save 10%

Tax included

Quantity

Available in warehouses

W01: 12 qty

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Product Details

Reference 8JB 005 949-001

EAN13 4082300016109

MPN 8JB 005 949-001

In stock 12 Items

Condition New

Data sheet

DIN/ISO: 11446
11446 N-Typ
Quantity: 1
Number of pins: 13
Cross Section [mm²] from: 1,5
Cross Section [mm²] to: 2,5
Depth [mm]: 45
Plug Type: Screw Contact
Current Strength from [A]: 16
Current Strength to [A]: 25
Temperature range from [°C]: -40
Voltage [V]: 12
Temperature range to [°C]: +85
Diameter [mm]: 72
Assy./disassy. by qualified personnel required!
Bore Diameter [mm]: 6
Number of bores: 3
Colour: black
Mounting Type: Screw Connection

AEBI: 02416220
AEBI: 12409538
AGRIFAC: 7774413
AHLMANN: 23104244
AMAZONE: NF086
AUWÄRTER: 348ST006
BMW: 1378999
BMW: 61131378999
BOBCAT: L000005967
BOMAG: 60010012
BOSCH: 0 986 352 011
BOSCH: 0986352003
BOSCH: 0986352003090
BOSCH: 0986352011090
BREMI: 10471
BROSHUIS: 35417022
BUCHER: 76154510
CASE IH: 03252286
CASE IH: 84007466
CASE IH: DF065306
DEMAG: 46114240
DEUTZ-FAHR: 01231938
ERICH JAEGER: 121035
EVOBUS: 0045457726
EVOBUS: A0045457726
FACET: 10424
FACET: 10521
FAYMONVILLE: 9998
FELDBINDER: 004939
GOLDHOFER: 157643
HAKO: 00882022
HAKO: 90287699
HC-Cargo: 180214
HELLA: 005949001
HELLA: 8JB 005 949-001
HELLA: 8JB001943007
HERTH+BUSS ELPARTS: 51305031
HYMER: 0998450
HYMER: 1000105125
HYMER: 16030819
IKARUS: 700040049001
IKARUS: 7000449001
IRIZAR: 8033668
JAEGER: 121140
JAEGER: 72400008
JCB: 72390005
JOKON: 460001000
JUNGHEINRICH: 51375087
KÄSSBOHRER: 72351380000
KÖGEL: 351001
KRAMER: 0003332210
KRAMER: 1000105125
KRONE: 505806735
KRONE: 58067350
LANGENDORF: 1134638
LEONI: U104013030
LIEBHERR: 10029210
LIEBHERR: 104013030
LIEBHERR: 6002003
LINDNER: 3005446
MAFI: 0005791945
MEGA: 5131200
MENBER S: 00421300
NOOTEBOOM: 0223030
PAUS: 529366
PUTZMEISTER: 245802005
REISCH: 5003017
RENAULT TRUCKS: 7423167225
RENDERS: H2714389
ROSENBAUER: 081037
SAME: 01231938
SCANIA: 1866856
SCANIA: 1934332
SCANIA: N001793
SCHWARZMÜLLER: 38770
SOLARIS: 102200741900
SOMMER: 2800287003
SPERRY NEW HOLLAND: 84007466
STILL: 529127
TEREX: 46114240
TEREX: 5350642362
TEREX: 94746114240
TOYOTA: 0056571
VALMET: 32458500
VAN HOOL: 11084471
VDL: 30003337
VDL: 40450382
VOLVO: 11307604
VOLVO: 2052079
VOLVO: 20520796
VOLVO: 54490003
VOLVO: P15243264B01
WEIDEMANN: 5016005949
WEIRO: 12324
YANMAR: 5350642362

Reviews

No customer reviews for the moment.

1 other product in the same category:

-10% -10%

Quick view

Reference: 8JB 001 943-001

Brand: HELLA

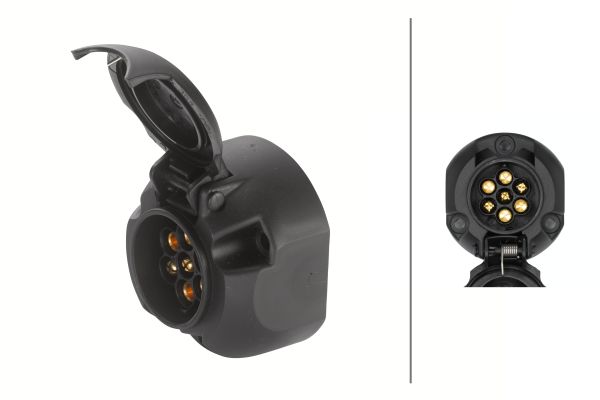

HELLA 8JB 001 943-001 Socket
