BOSCH 1 986 AD2 043 Condenser, air conditioning for VW

Reference 1 986 AD2 043

Brand BOSCH

VW ➤ CALIFORNIA T5 Camper | MULTIVAN T5 | TRANSPORTER T5 Bus | TRANSPORTER T5 Platform/Chassis | TRANSPORTER T5 Van

€99.00

€89.10 Save 10%

Tax included

Quantity

Available in warehouses

W01: 13 qty

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Product Details

Reference 1 986 AD2 043

EAN13 4047026791273

MPN 1 986 AD2 043

In stock 13 Items

Condition New

Data sheet

Core Length [mm]: 680
Core Width [mm]: 390
Core Depth [mm]: 16
Total width [mm]: 394
Mounting Points Distance top [mm]: 806
Mounting Points Distance right [mm]: 297
Supplementary Article/Supplementary Info: with nitrogen filling
Chemical Properties: Corrosion resistant
Supplementary Article/Info 2: with dryer
with mounting manual
without seal ring
Inlet Ø [mm]: 15,3
Outlet Ø [mm]: 13,7
Refrigerant: R 134a
Total Length [mm]: 577

HC-Cargo: 260506
HC-Cargo: F032260506
VW: 7H0820411B
VW: 7H0820411BC
VW: 7H0820411C
VW: 7H0820411D
VW: 7H0820411E

VW

CALIFORNIA T5 Camper (7EC, 7EF, 7EG, 7HF, 7HC) 1.9 TDI (2007 - 2009) 1896 ccm, 63 kw, 85 hp

CALIFORNIA T5 Camper (7EC, 7EF, 7EG, 7HF, 7HC) 1.9 TDI (2007 - 2009) 1896 ccm, 77 kw, 105 hp

CALIFORNIA T5 Camper (7EC, 7EF, 7EG, 7HF, 7HC) 1.9 TDI (2007 - 2009) 1896 ccm, 75 kw, 102 hp

CALIFORNIA T5 Camper (7EC, 7EF, 7EG, 7HF, 7HC) 1.9 TDI (2007 - 2009) 1896 ccm, 62 kw, 84 hp [Construction Year to :: 200911]

CALIFORNIA T5 Camper (7EC, 7EF, 7EG, 7HF, 7HC) 2.5 TDI (2007 - 2009) 2461 ccm, 96 kw, 130 hp [TecDoc Engine Number :: 16868]

CALIFORNIA T5 Camper (7EC, 7EF, 7EG, 7HF, 7HC) 2.5 TDI (2007 - 2009) 2461 ccm, 128 kw, 174 hp [TecDoc Engine Number :: 16869]

CALIFORNIA T5 Camper (7EC, 7EF, 7EG, 7HF, 7HC) 2.5 TDI 4motion (2007 - 2009) 2461 ccm, 96 kw, 130 hp [TecDoc Engine Number :: 16868]

CALIFORNIA T5 Camper (7EC, 7EF, 7EG, 7HF, 7HC) 2.5 TDI 4motion (2007 - 2009) 2461 ccm, 128 kw, 174 hp [TecDoc Engine Number :: 16869]

MULTIVAN T5 (7HM, 7HN, 7HF, 7EF, 7EM, 7EN) 1.9 TDI (2003 - 2009) 1896 ccm, 77 kw, 105 hp

MULTIVAN T5 (7HM, 7HN, 7HF, 7EF, 7EM, 7EN) 1.9 TDI (2006 - 2009) 1896 ccm, 75 kw, 102 hp

MULTIVAN T5 (7HM, 7HN, 7HF, 7EF, 7EM, 7EN) 1.9 TDI (2003 - 2009) 1896 ccm, 63 kw, 85 hp

MULTIVAN T5 (7HM, 7HN, 7HF, 7EF, 7EM, 7EN) 1.9 TDI (2006 - 2009) 1896 ccm, 62 kw, 84 hp

MULTIVAN T5 (7HM, 7HN, 7HF, 7EF, 7EM, 7EN) 2.0 (2003 - 2015) 1984 ccm, 85 kw, 115 hp [Construction Year to :: 200911, for model code :: 7H]

MULTIVAN T5 (7HM, 7HN, 7HF, 7EF, 7EM, 7EN) 2.5 TDI (2003 - 2009) 2461 ccm, 96 kw, 130 hp

MULTIVAN T5 (7HM, 7HN, 7HF, 7EF, 7EM, 7EN) 2.5 TDI (2003 - 2009) 2461 ccm, 128 kw, 174 hp

MULTIVAN T5 (7HM, 7HN, 7HF, 7EF, 7EM, 7EN) 2.5 TDI (2003 - 2009) 2461 ccm, 120 kw, 163 hp

MULTIVAN T5 (7HM, 7HN, 7HF, 7EF, 7EM, 7EN) 2.5 TDI 4motion (2004 - 2009) 2461 ccm, 96 kw, 130 hp

MULTIVAN T5 (7HM, 7HN, 7HF, 7EF, 7EM, 7EN) 2.5 TDI 4motion (2004 - 2009) 2461 ccm, 128 kw, 174 hp

MULTIVAN T5 (7HM, 7HN, 7HF, 7EF, 7EM, 7EN) VR6 3.2 (2004 - 2009) 3189 ccm, 173 kw, 235 hp [Construction Year to :: 200911, TecDoc Engine Number :: 16870]

MULTIVAN T5 (7HM, 7HN, 7HF, 7EF, 7EM, 7EN) VR6 3.2 4motion (2004 - 2009) 3189 ccm, 173 kw, 235 hp [Construction Year to :: 200911, TecDoc Engine Number :: 17186]

TRANSPORTER T5 Bus (7HB, 7HJ, 7EB, 7EJ) 1.9 TDI (2003 - 2009) 1896 ccm, 63 kw, 85 hp

TRANSPORTER T5 Bus (7HB, 7HJ, 7EB, 7EJ) 1.9 TDI (2003 - 2009) 1896 ccm, 77 kw, 105 hp

TRANSPORTER T5 Bus (7HB, 7HJ, 7EB, 7EJ) 1.9 TDI (2006 - 2009) 1896 ccm, 75 kw, 102 hp

TRANSPORTER T5 Bus (7HB, 7HJ, 7EB, 7EJ) 1.9 TDI (2006 - 2009) 1896 ccm, 62 kw, 84 hp

TRANSPORTER T5 Bus (7HB, 7HJ, 7EB, 7EJ) 2.0 (2003 - 2015) 1984 ccm, 85 kw, 115 hp [Construction Year to :: 200911, for model code :: 7H]

TRANSPORTER T5 Bus (7HB, 7HJ, 7EB, 7EJ) 2.0 CNG (2006 - 2015) 1984 ccm, 85 kw, 115 hp [Construction Year to :: 200911, for model code :: 7H]

TRANSPORTER T5 Bus (7HB, 7HJ, 7EB, 7EJ) 2.5 TDI (2003 - 2009) 2461 ccm, 96 kw, 130 hp [TecDoc Engine Number :: 16868]

TRANSPORTER T5 Bus (7HB, 7HJ, 7EB, 7EJ) 2.5 TDI (2003 - 2009) 2461 ccm, 128 kw, 174 hp [TecDoc Engine Number :: 16869]

TRANSPORTER T5 Bus (7HB, 7HJ, 7EB, 7EJ) VR6 3.2 (2004 - 2009) 3189 ccm, 173 kw, 235 hp [TecDoc Engine Number :: 17186]

TRANSPORTER T5 Platform/Chassis (7JD, 7JE, 7JL, 7JY, 7JZ, 7F 1.9 TDI (2003 - 2009) 1896 ccm, 63 kw, 85 hp

TRANSPORTER T5 Platform/Chassis (7JD, 7JE, 7JL, 7JY, 7JZ, 7F 1.9 TDI (2003 - 2009) 1896 ccm, 77 kw, 105 hp

TRANSPORTER T5 Platform/Chassis (7JD, 7JE, 7JL, 7JY, 7JZ, 7F 1.9 TDI (2006 - 2009) 1896 ccm, 75 kw, 102 hp

TRANSPORTER T5 Platform/Chassis (7JD, 7JE, 7JL, 7JY, 7JZ, 7F 1.9 TDI (2006 - 2009) 1896 ccm, 62 kw, 84 hp

TRANSPORTER T5 Platform/Chassis (7JD, 7JE, 7JL, 7JY, 7JZ, 7F 2.0 (2003 - 2013) 1984 ccm, 85 kw, 115 hp [Block Separation :: , Construction Year from :: 200909, Construction Year to :: 200911, for model code :: 7F, for model code :: 7J, Left-/right-hand drive vehicles :: for left-hand drive vehicles]

TRANSPORTER T5 Platform/Chassis (7JD, 7JE, 7JL, 7JY, 7JZ, 7F 2.0 BiTDI (2009 - 2015) 1968 ccm, 132 kw, 180 hp [Left-/right-hand drive vehicles :: for left-hand drive vehicles]

TRANSPORTER T5 Platform/Chassis (7JD, 7JE, 7JL, 7JY, 7JZ, 7F 2.0 BiTDI 4motion (2009 - 2015) 1968 ccm, 132 kw, 180 hp [Left-/right-hand drive vehicles :: for left-hand drive vehicles]

TRANSPORTER T5 Platform/Chassis (7JD, 7JE, 7JL, 7JY, 7JZ, 7F 2.0 CNG (2003 - 2011) 1984 ccm, 85 kw, 115 hp [Construction Year to :: 200911]

TRANSPORTER T5 Platform/Chassis (7JD, 7JE, 7JL, 7JY, 7JZ, 7F 2.0 TDI (2011 - 2015) 1968 ccm, 84 kw, 114 hp [Left-/right-hand drive vehicles :: for left-hand drive vehicles]

TRANSPORTER T5 Platform/Chassis (7JD, 7JE, 7JL, 7JY, 7JZ, 7F 2.0 TDI (2010 - 2015) 1968 ccm, 100 kw, 136 hp [Left-/right-hand drive vehicles :: for left-hand drive vehicles]

TRANSPORTER T5 Platform/Chassis (7JD, 7JE, 7JL, 7JY, 7JZ, 7F 2.0 TDI (2009 - 2015) 1968 ccm, 62 kw, 84 hp [Left-/right-hand drive vehicles :: for left-hand drive vehicles]

TRANSPORTER T5 Platform/Chassis (7JD, 7JE, 7JL, 7JY, 7JZ, 7F 2.0 TDI (2009 - 2015) 1968 ccm, 75 kw, 102 hp [Left-/right-hand drive vehicles :: for left-hand drive vehicles]

TRANSPORTER T5 Platform/Chassis (7JD, 7JE, 7JL, 7JY, 7JZ, 7F 2.0 TDI (2009 - 2015) 1968 ccm, 103 kw, 140 hp [Left-/right-hand drive vehicles :: for left-hand drive vehicles]

TRANSPORTER T5 Platform/Chassis (7JD, 7JE, 7JL, 7JY, 7JZ, 7F 2.0 TDI 4motion (2010 - 2015) 1968 ccm, 100 kw, 136 hp [Construction Year from :: 201006, Left-/right-hand drive vehicles :: for left-hand drive vehicles]

TRANSPORTER T5 Platform/Chassis (7JD, 7JE, 7JL, 7JY, 7JZ, 7F 2.0 TDI 4motion (2009 - 2015) 1968 ccm, 103 kw, 140 hp [Left-/right-hand drive vehicles :: for left-hand drive vehicles]

TRANSPORTER T5 Platform/Chassis (7JD, 7JE, 7JL, 7JY, 7JZ, 7F 2.0 TSI (2012 - 2015) 1984 ccm, 110 kw, 150 hp [Left-/right-hand drive vehicles :: for left-hand drive vehicles]

TRANSPORTER T5 Platform/Chassis (7JD, 7JE, 7JL, 7JY, 7JZ, 7F 2.5 TDI (2003 - 2009) 2461 ccm, 96 kw, 130 hp

TRANSPORTER T5 Platform/Chassis (7JD, 7JE, 7JL, 7JY, 7JZ, 7F 2.5 TDI (2003 - 2009) 2461 ccm, 128 kw, 174 hp [Construction Year from :: 200401]

TRANSPORTER T5 Platform/Chassis (7JD, 7JE, 7JL, 7JY, 7JZ, 7F 2.5 TDI 4motion (2004 - 2009) 2461 ccm, 96 kw, 130 hp

TRANSPORTER T5 Platform/Chassis (7JD, 7JE, 7JL, 7JY, 7JZ, 7F 2.5 TDI 4motion (2004 - 2009) 2461 ccm, 128 kw, 174 hp [Construction Year from :: 200407]

TRANSPORTER T5 Platform/Chassis (7JD, 7JE, 7JL, 7JY, 7JZ, 7F VR6 3.2 (2003 - 2009) 3189 ccm, 173 kw, 235 hp [Construction Year from :: 200402, TecDoc Engine Number :: 16870]

TRANSPORTER T5 Platform/Chassis (7JD, 7JE, 7JL, 7JY, 7JZ, 7F VR6 3.2 4motion (2003 - 2009) 3189 ccm, 173 kw, 235 hp

TRANSPORTER T5 Van (7HA, 7HH, 7EA, 7EH) 1.9 TDI (2003 - 2009) 1896 ccm, 63 kw, 85 hp

TRANSPORTER T5 Van (7HA, 7HH, 7EA, 7EH) 1.9 TDI (2003 - 2009) 1896 ccm, 77 kw, 105 hp

TRANSPORTER T5 Van (7HA, 7HH, 7EA, 7EH) 1.9 TDI (2006 - 2009) 1896 ccm, 75 kw, 102 hp

TRANSPORTER T5 Van (7HA, 7HH, 7EA, 7EH) 1.9 TDI (2006 - 2009) 1896 ccm, 62 kw, 84 hp

TRANSPORTER T5 Van (7HA, 7HH, 7EA, 7EH) 2.0 (2003 - 2015) 1984 ccm, 85 kw, 115 hp [Construction Year to :: 200911, for model code :: 7H]

TRANSPORTER T5 Van (7HA, 7HH, 7EA, 7EH) 2.5 TDI (2003 - 2009) 2461 ccm, 96 kw, 130 hp

TRANSPORTER T5 Van (7HA, 7HH, 7EA, 7EH) 2.5 TDI (2003 - 2009) 2461 ccm, 128 kw, 174 hp

TRANSPORTER T5 Van (7HA, 7HH, 7EA, 7EH) 2.5 TDI 4motion (2004 - 2009) 2461 ccm, 96 kw, 130 hp

TRANSPORTER T5 Van (7HA, 7HH, 7EA, 7EH) 2.5 TDI 4motion (2004 - 2009) 2461 ccm, 128 kw, 174 hp

TRANSPORTER T5 Van (7HA, 7HH, 7EA, 7EH) VR6 3.2 (2004 - 2009) 3189 ccm, 173 kw, 235 hp [TecDoc Engine Number :: 16870, TecDoc Engine Number :: 20920]

Reviews

No customer reviews for the moment.

8 other products in the same category:

-10% -10%

Quick view

Reference: DCN32020

Brand: DENSO

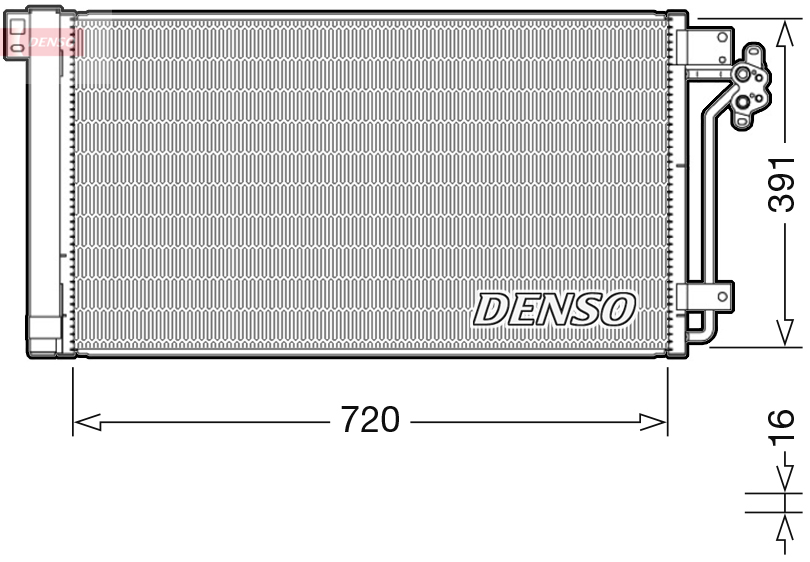

DENSO DCN32020 Condenser, air conditioning for VW

alternative item : -, for OE number : 7H0820411B, Gross Weight [g] : 3742, Refrigerant : R 134a, Supplementary Article/Info 2 : with dryer, Weight [g] : 2742

Review(s): 0

€116.13 €129.03

Last items in stock

-10% -10%

Quick view

Reference: AC 672 000S

Brand: MAHLE

MAHLE AC 672 000S BEHR Condenser, air conditioning for VW

Core Depth [mm] : 16, Core Length [mm] : 680, Core Width [mm] : 387, Inlet Ø [mm] : 15, Net Weight [g] : 2092, Outlet Ø [mm] : 13,7, Packaging height [cm] : 57,00, Packaging length [cm] : 90,5, Packaging width [cm] : 12,50, Radiator type : Parallel cooling pipes, Supplementary Article/Info 2 : with dryer

Review(s): 0

€96.74 €107.48

In stock

-10% -10%

Quick view

Reference: 053-016-0033

Brand: ABAKUS

ABAKUS 053-016-0033 Condenser, air conditioning for VW

Assy./disassy. by qualified personnel required! : , Core Depth [mm] : 16, Core Length [mm] : 720, Core Width [mm] : 390, Material : Aluminium, Supplementary Article/Info 2 : with dryer, Transmission Type : Automatic Transmission, Transmission Type : Manual Transmission

Review(s): 0

€71.70 €79.67

Last items in stock

-10% -10%

Quick view

Reference: 94604

Brand: NISSENS

NISSENS 94604 FIRST FIT Condenser, air conditioning for VW

Chemical Properties : Corrosion resistant, Core Depth [mm] : 16, Core Length [mm] : 680, Core Width [mm] : 369, Inlet Ø [mm] : 15,4, Material : Aluminium, Outlet Ø [mm] : 13,8, Refrigerant : R 1234yf, Refrigerant : R 134a, Supplementary Article/Info 2 : with dryer, Supplementary Article/Supplementary Info : with nitrogen filling

Review(s): 0

€87.01 €96.68

In stock

-10% -10%

Quick view

Reference: 814015

Brand: VALEO

VALEO 814015 Condenser, air conditioning for VW

Core Depth [mm] : 17, Core Length [mm] : 375, Core Width [mm] : 690, Inlet Ø [mm] : 15, Material : Aluminium, Outlet Ø [mm] : 14, Refrigerant : R 134a, Supplementary Article/Info 2 : with dryer, Weight [kg] : 4

Review(s): 0

€144.88 €160.98

In stock

-10% -10%

Quick view

Reference: 7800144

Brand: KAMOKA

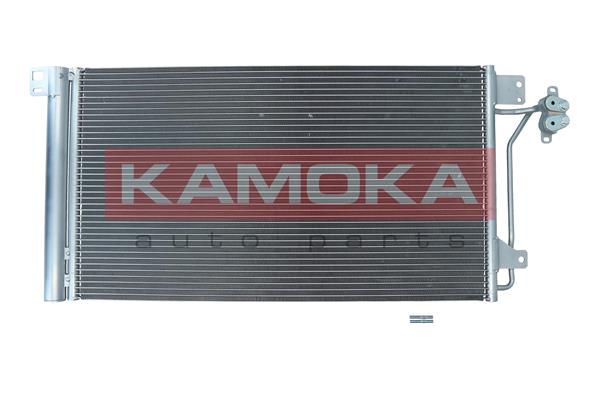

KAMOKA 7800144 Condenser, air conditioning for VW

Core Depth [mm] : 16, Core Length [mm] : 715, Core Width [mm] : 391, Material : Aluminium, Refrigerant : R 134a, Supplementary Article/Info 2 : with dryer

Review(s): 0

€59.03 €65.59

In stock

-10% -10%

Quick view

Reference: 194590

Brand: FEBI BILSTEIN

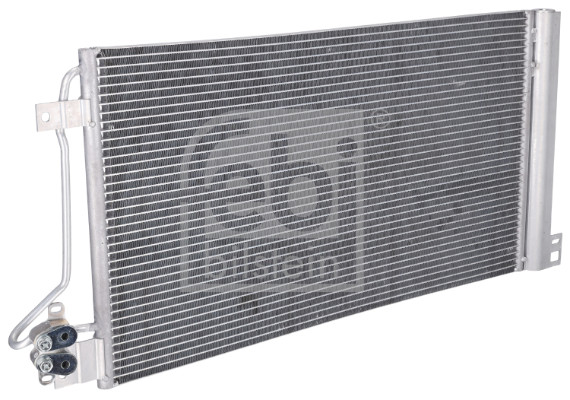

FEBI BILSTEIN 194590 Condenser, air conditioning for VW
