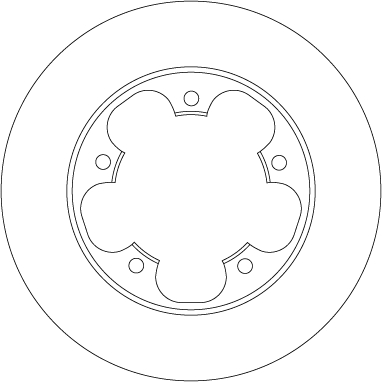

TRW DF6748 Brake Disc for FORD

Reference DF6748

Brand TRW

FORD ➤ TRANSIT V363 Bus | TRANSIT V363 Platform/Chassis | TRANSIT V363 Van

€46.89

€42.20 Save 10%

Tax included

Quantity

Available in warehouses

W01: 26 qty

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Product Details

Reference DF6748

EAN13 3322938315535

MPN DF6748

In stock 26 Items

Condition New

Data sheet

Bolt Hole Circle Ø [mm]: 150
Surface: Painted
Thread Size 1: M12
Test Mark: E190R-02C0190/0595
Height [mm]: 25,6
Brake Disc Type: solid
Brake Disc Thickness [mm]: 16
Minimum thickness [mm]: 13
Colour: black
Outer Diameter [mm]: 308
Number of Holes: 5
Centering Diameter [mm]: 122,5

A.B.S.: 18449
AKEBONO: BN1355
AKEBONO: BN1355E
APEC: DSK3173
APEC: DSK3334
ATE: 24.0116-0137.1
BLUE PRINT: ADF124354
BORG & BECK: BBD5364
BOSCH: 0 986 479 F44
BREMBO: 08.C539.11
COMLINE: ADC1268
DBA Australia: DBA3105E
DELPHI: BG4681C
DT Spare Parts: 1331012
FEBI BILSTEIN: 105712
FERODO: DDF2484C
FORD: 1815599
FORD: BK312A315AB
FREMAX: BD5646
FTE: 9072123
FTE: 9082258
FTE: BS7807
FTE: BS7807B
GIRLING: 6067484
HELLA: 8DD 355 122-781
HELLA PAGID: 8DD355122781
KAWE: 6156700
METZGER: 6110816
MEYLE: 715 523 0029/PD
MINTEX: MDC2694
MOTAQUIP: LVBD1743
NK: 202595
NK: 312595
OPEN PARTS: BDA273410
OPTIMAL: BS9278
OPTIMAL: BS9278C
PAGID: 55741
RAICAM: RD01333
REMSA: 6156700
REMY: RAD1969C
ROADHOUSE: 6156700
sbs: 1815202595
sbs: 1815312595
SWAG: 50105712
TEXTAR: 92274103
VAICO: V2540013
WOKING: D6156700
ZIMMERMANN: 250.1381.20

FORD

TRANSIT V363 Bus (FAD, FBD) 2.2 TDCi 4x4 (2013 - 2018) 2198 ccm, 92 kw, 125 hp [Fitting Position :: Rear Axle, Tyres :: for single tyres]

TRANSIT V363 Bus (FAD, FBD) 2.2 TDCi RWD (2013 - 2018) 2198 ccm, 92 kw, 125 hp [Fitting Position :: Rear Axle, Tyres :: for single tyres]

TRANSIT V363 Bus (FAD, FBD) 2.2 TDCi RWD (2013 - 2018) 2198 ccm, 114 kw, 155 hp [Fitting Position :: Rear Axle, Tyres :: for single tyres]

TRANSIT V363 Bus (FAD, FBD) 2.2 TDCi RWD (2013 - 2018) 2198 ccm, 74 kw, 100 hp [Fitting Position :: Rear Axle, Tyres :: for single tyres]

TRANSIT V363 Bus (FAD, FBD) 2.2 TDCi RWD (2013 - ) 2198 ccm, 99 kw, 135 hp [Fitting Position :: Rear Axle, Tyres :: with single tyres]

TRANSIT V363 Platform/Chassis (FED, FFD) 2.0 EcoBlue 4x4 (2017 - ) 1995 ccm, 96 kw, 130 hp [Fitting Position :: Rear Axle, Tyres :: with single tyres]

TRANSIT V363 Platform/Chassis (FED, FFD) 2.0 EcoBlue 4x4 (2017 - 2024) 1995 ccm, 125 kw, 170 hp [Fitting Position :: Rear Axle, Tyres :: with single tyres]

TRANSIT V363 Platform/Chassis (FED, FFD) 2.0 EcoBlue RWD (2016 - ) 1995 ccm, 77 kw, 105 hp [Fitting Position :: Rear Axle, Tyres :: for single tyres]

TRANSIT V363 Platform/Chassis (FED, FFD) 2.0 EcoBlue RWD (2016 - ) 1995 ccm, 96 kw, 130 hp [Fitting Position :: Rear Axle, Tyres :: for single tyres]

TRANSIT V363 Platform/Chassis (FED, FFD) 2.0 EcoBlue RWD (2016 - 2024) 1995 ccm, 125 kw, 170 hp [Fitting Position :: Rear Axle, Tyres :: for single tyres]

TRANSIT V363 Platform/Chassis (FED, FFD) 2.2 TDCi 4x4 (2013 - 2018) 2198 ccm, 92 kw, 125 hp [Fitting Position :: Rear Axle, Tyres :: for single tyres]

TRANSIT V363 Platform/Chassis (FED, FFD) 2.2 TDCi 4x4 (2013 - 2018) 2198 ccm, 114 kw, 155 hp [Fitting Position :: Rear Axle, Tyres :: for single tyres]

TRANSIT V363 Platform/Chassis (FED, FFD) 2.2 TDCi RWD (2013 - 2018) 2198 ccm, 74 kw, 100 hp [Fitting Position :: Rear Axle, Tyres :: for single tyres]

TRANSIT V363 Platform/Chassis (FED, FFD) 2.2 TDCi RWD (2013 - 2018) 2198 ccm, 92 kw, 125 hp [Fitting Position :: Rear Axle, Tyres :: for single tyres]

TRANSIT V363 Platform/Chassis (FED, FFD) 2.2 TDCi RWD (2013 - ) 2198 ccm, 114 kw, 155 hp [Fitting Position :: Rear Axle, Tyres :: for single tyres]

TRANSIT V363 Platform/Chassis (FED, FFD) 2.2 TDCi RWD (2013 - 2018) 2198 ccm, 99 kw, 135 hp [Fitting Position :: Rear Axle, Tyres :: for single tyres]

TRANSIT V363 Van (FCD, FDD) 2.0 EcoBlue 4x4 (2017 - ) 1995 ccm, 96 kw, 130 hp [Fitting Position :: Rear Axle, Tyres :: with single tyres]

TRANSIT V363 Van (FCD, FDD) 2.0 EcoBlue 4x4 (2017 - 2024) 1995 ccm, 125 kw, 170 hp [Fitting Position :: Rear Axle, Tyres :: with single tyres]

TRANSIT V363 Van (FCD, FDD) 2.0 EcoBlue RWD (2016 - ) 1995 ccm, 77 kw, 105 hp [Fitting Position :: Rear Axle, Tyres :: for single tyres, Vehicle type :: 350]

TRANSIT V363 Van (FCD, FDD) 2.0 EcoBlue RWD (2016 - ) 1995 ccm, 96 kw, 130 hp [Fitting Position :: Rear Axle, Tyres :: for single tyres, Vehicle type :: 350]

TRANSIT V363 Van (FCD, FDD) 2.0 EcoBlue RWD (2016 - 2024) 1995 ccm, 125 kw, 170 hp [Fitting Position :: Rear Axle, Tyres :: for single tyres]

TRANSIT V363 Van (FCD, FDD) 2.2 TDCi (2013 - 2018) 2198 ccm, 114 kw, 155 hp [Fitting Position :: Rear Axle, Tyres :: for single tyres, Vehicle type :: 350]

TRANSIT V363 Van (FCD, FDD) 2.2 TDCi 4x4 (2015 - 2018) 2198 ccm, 114 kw, 155 hp [Fitting Position :: Rear Axle, Tyres :: for single tyres, Vehicle type :: 350]

TRANSIT V363 Van (FCD, FDD) 2.2 TDCi 4x4 (2013 - 2018) 2198 ccm, 92 kw, 125 hp [Fitting Position :: Rear Axle, Tyres :: for single tyres, Vehicle type :: 350]

TRANSIT V363 Van (FCD, FDD) 2.2 TDCi RWD (2013 - 2018) 2198 ccm, 114 kw, 155 hp [Fitting Position :: Rear Axle, Tyres :: for single tyres, Vehicle type :: 350, Vehicle type :: 430, Vehicle type :: 470]

TRANSIT V363 Van (FCD, FDD) 2.2 TDCi RWD (2013 - 2018) 2198 ccm, 92 kw, 125 hp [Fitting Position :: Rear Axle, Tyres :: for single tyres, Vehicle type :: 350, Vehicle type :: 430, Vehicle type :: 470]

TRANSIT V363 Van (FCD, FDD) 2.2 TDCi RWD (2013 - 2018) 2198 ccm, 74 kw, 100 hp [Fitting Position :: Rear Axle, Tyres :: for single tyres, Vehicle type :: 350]
