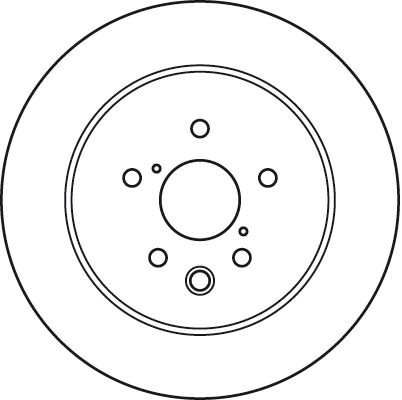

TRW DF6063 Brake Disc for LEXUS TOYOTA TOYOTA (FAW)

Reference DF6063

Brand TRW

€51.85

€46.67 Save 10%

Tax included

Quantity

Available in warehouses

W01: 36 qty

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Product Details

Reference DF6063

EAN13 3322937991501

MPN DF6063

In stock 36 Items

Condition New

Data sheet

Test Mark: E1 90R-02 C0226/0643
Height [mm]: 67,2
Brake Disc Type: Vented
Brake Disc Thickness [mm]: 18
Thread Size: 14,5
Minimum thickness [mm]: 16,5
Colour: black
Outer Diameter [mm]: 310
Number of Holes: 5
Centering Diameter [mm]: 62
Bolt Hole Circle Ø [mm]: 114,3
Surface: Painted

ASHUKI by Palidium: 09933602
ATE: 24.0118-0147.1
BENDIX - OLD: 562823BC
BLUE PRINT: ADT343203
BORG & BECK: BBD4535
BOSCH: 0 986 479 615
BOSCH: 0 986 AB5 582
BOSCH: 0986AB5254
Brake ENGINEERING: DI956638
BREMBO: 09.C930.11
CAR: 1421549
DELPHI: BG4024
FEBI BILSTEIN: 108546
FERODO: DDF1878C
FERODO: DDF1878C1D
fri.tech.: DF1124
FTE: 9072806
FTE: BS7615
HELLA: 8DD 355 112-881
HELLA: 8DD355121961
HELLA PAGID: 8DD355112881
HELLA PAGID: 8DD355121961
HERTH+BUSS JAKOPARTS: J3312010
Hi-Q: SD4649
LEXUS: 4243130290
LPR: T2044V
METELLI: 23-1541C
MEYLE: 30-15 523 0036
MEYLE: 30155230036PD
NIPPARTS: N3312063
NK: 2045106
NK: 3145106
OPTIMAL: BS8818
OPTIMAL: BS8818C
PAGID: 54480
PILENGA: V394
QUINTON HAZELL: BDC5657
REMSA: 6125510
ROADHOUSE: 6125510
ROULUNDS RUBBER: WD01137
sbs: 18152045106
SWAG: 33105635
TEXTAR: 92148000
TEXTAR: 92148003
TEXTAR: 98200148001
TOYOTA: 4243130290
TOYOTA (FAW): 424310N020
TRISCAN: 8120131025

LEXUS

GS (_S19_) 300 (GRS190_) (2005 - 2011) 2994 ccm, 170 kw, 231 hp [Fitting Position :: Rear Axle]

GS (_S19_) 300 (GRS190_, GRS190R) (2005 - 2011) 2995 ccm, 183 kw, 249 hp [Fitting Position :: Rear Axle]

GS (_S19_) 350 (GRS191_, GRS191R) (2005 - 2011) 3456 ccm, 226 kw, 307 hp [Fitting Position :: Rear Axle]

GS (_S19_) 350 AWD (GRS196_, GRS196R) (2008 - 2011) 3456 ccm, 232 kw, 316 hp [Fitting Position :: Rear Axle]

GS (_S19_) 350 AWD (GRS196_, GRS196R) (2006 - 2011) 3456 ccm, 226 kw, 307 hp [Fitting Position :: Rear Axle]

GS (_S19_) 430 (UZS190_, UZS190R) (2005 - 2011) 4293 ccm, 208 kw, 283 hp [Fitting Position :: Rear Axle]

GS (_S19_) 450h (GRS191_, GWS191_, GRS191R, GWS191R) (2006 - 2011) 3456 ccm, 254 kw, 345 hp [Fitting Position :: Rear Axle]

GS (_S19_) 460 (URS190_, URS190R) (2007 - 2011) 4608 ccm, 255 kw, 347 hp [Fitting Position :: Rear Axle]

IS C (GSE2_) 250 (GSE20) (2009 - 2015) 2499 ccm, 153 kw, 208 hp [Construction Year from :: 200904, Fitting Position :: Rear Axle]

IS II (_E2_) 200d (ALE20_, ALE20R) (2010 - 2012) 2231 ccm, 110 kw, 150 hp [Fitting Position :: Rear Axle]

IS II (_E2_) 220d (ALE20) (2005 - 2012) 2231 ccm, 130 kw, 177 hp [Construction Year from :: 200608, Fitting Position :: Rear Axle]

IS II (_E2_) 250 (GSE20) (2005 - 2013) 2499 ccm, 153 kw, 208 hp [Construction Year from :: 200608, Fitting Position :: Rear Axle]

IS II (_E2_) 350 (GSE21_, GSE21R) (2005 - 2013) 3456 ccm, 228 kw, 310 hp [Fitting Position :: Rear Axle]

IS III (_E3_) 250 (GSE30_, GSE30R) (2013 - 2015) 2499 ccm, 153 kw, 208 hp [Fitting Position :: Rear Axle]

TOYOTA

MARK X I (GRX12_) 2.5 VVTi (GRX120_, GRX120) (2004 - 2009) 2499 ccm, 158 kw, 215 hp [Fitting Position :: Rear Axle, Vehicle configuration line / variant :: S PACKAGE]

MARK X I (GRX12_) 3.0 VVTi (GRX121) (2004 - 2009) 2995 ccm, 188 kw, 256 hp [Fitting Position :: Rear Axle, Vehicle configuration line / variant :: S PACKAGE]

MARK X II (GRX13_) 2.5 (GRX130) (2009 - ) 2499 ccm, 149 kw, 203 hp [Construction Year to :: 201408, Fitting Position :: Rear Axle, Vehicle configuration line / variant :: GR SPORT, Vehicle configuration line / variant :: GS]

MARK X II (GRX13_) 3.5 (GRX133_, GRX133) (2009 - ) 3456 ccm, 234 kw, 318 hp [Construction Year to :: 201409, Fitting Position :: Rear Axle]

TOYOTA (FAW)

CROWN ROYAL (_S20_) 2.5 (GRS208) (2009 - 2014) 2497 ccm, 142 kw, 193 hp [Fitting Position :: Rear Axle]
