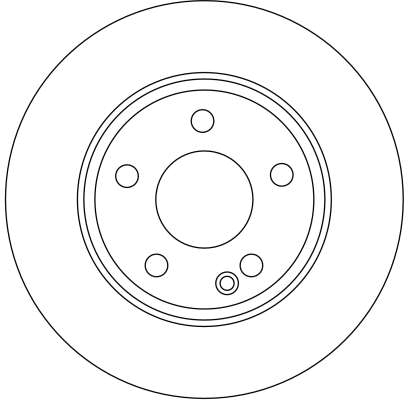

TRW DF4393 Brake Disc for MERCEDES-BENZ

Reference DF4393

Brand TRW

MERCEDES-BENZ ➤ A-CLASS | B-CLASS Sports Tourer

€43.10

€38.79 Save 10%

Tax included

Quantity

Available in warehouses

W01: 22 qty

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Product Details

Reference DF4393

EAN13 3322937402731

MPN DF4393

In stock 22 Items

Condition New

Data sheet

Brake Disc Type: Vented
Brake Disc Thickness [mm]: 22
Thread Size: 15,3
Minimum thickness [mm]: 19,4
Colour: black
Machining: High-carbon
Outer Diameter [mm]: 276
Number of Holes: 5
Centering Diameter [mm]: 67
Bolt Hole Circle Ø [mm]: 112
Surface: Painted
Test Mark: E190R-02C0176/0003
Height [mm]: 44,5

A.B.S.: 09868011
A.B.S.: 17646
A.P.: 24851E
A.P.: 24851V
ATE: 24.0122-0232.1
ATE: 24.0322-0232.1
BENDIX - OLD: 562312B
BENDIX - OLD: 562312BC
BLUE PRINT: ADU174328
BORG & BECK: BBD4485
BOSCH: 0 986 479 186
BOSCH: F 026 A09 341
Brake ENGINEERING: DI956444
BREMBO: 09.8680.11
BREMBO: 09.8680.14
CAR: 1421167
CAR: HPD1167
CIFAM: 800831
DBA Australia: DBA2689E
DELPHI: BG3845
DELPHI: BG3845C
DON: PCD10502
FEBI BILSTEIN: 28635
FERODO: DDF1220
FERODO: DDF12201
FERODO: DDF1220C
FERODO: DDF1220C1
FERODO: DDF1220C1D
FERODO: DDF1220X
FIRST LINE: FBD1533
fri.tech.: DF247
FTE: 9072081
FTE: 9082115
FTE: 9082574
FTE: BS5440
FTE: BS5440B
FTE: BS5440HB
GRAF: DF29831
HELLA: 8DD 355 111-061
HELLA: 8DD 355 128-271
HELLA: 8DD355111051
HELLA PAGID: 8DD355111061
HELLA PAGID: 8DD355128271
Hi-Q: SD5611
JURID: 562312J
JURID: 562312JC
LEMFÖRDER: 30850 01
LPR: M2016V
LPR: M2016VR
MAGNETI MARELLI: 351286220500
MAGNETI MARELLI: 360704022200
MAGNETI MARELLI: 361302040178
MERCEDES-BENZ: 1694210112
MERCEDES-BENZ: 1694210812
MERCEDES-BENZ: A1694210112
MERCEDES-BENZ: A1694210812
METELLI: 23-0831C
METELLI: 230831
METZGER: 24851E
METZGER: 24851V
METZGER: 6110141
MEYLE: 015 521 0038
MEYLE: 015 521 0038/PD
MEYLE: 0155212089
MEYLE: 0155212089PD
MINTEX: MDC1752
MINTEX: MDC1752C
NK: 203372
NK: 313372
Omnicraft: 2134064
OPEN PARTS: BDA220020
OPEN PARTS: BDR220020
OPTIMAL: BS7808
OPTIMAL: BS7808C
PAGID: 54319
PAGID: 54319PRO
PILENGA: V914
QUINTON HAZELL: BDC5440
QUINTON HAZELL: BSF5440
REMSA: 667510
REMY: RAD1193C
ROADHOUSE: 667510
sbs: 1815203372
sbs: 1815313372
ST-TEMPLIN: 0311020970
ST-TEMPLIN: 0311020975
SWAG: 10928635
TEXTAR: 92131900
TEXTAR: 92131903
TRISCAN: 812023170
TRISCAN: 812023170C
TRUCKTEC AUTOMOTIVE: 0235157
TRUSTING: DF247
VAICO: V3080066
VALEO: 186799
WOKING: D667510
ZIMMERMANN: 400.3643.20
ZIMMERMANN: 400.3643.52

MERCEDES-BENZ

A-CLASS (W169) A 160 CDI (169.006, 169.306) (2004 - 2012) 1991 ccm, 60 kw, 82 hp [Fitting Position :: Front Axle, Payload :: for increased payload]

A-CLASS (W169) A 170 (169.032, 169.332) (2004 - 2012) 1699 ccm, 85 kw, 116 hp [Fitting Position :: Front Axle]

A-CLASS (W169) A 180 (169.032, 169.332) (2009 - 2012) 1699 ccm, 85 kw, 116 hp [Fitting Position :: Front Axle]

A-CLASS (W169) A 180 CDI (169.007, 169.307) (2004 - 2012) 1991 ccm, 80 kw, 109 hp [Fitting Position :: Front Axle]

A-CLASS (W169) A 200 (169.033, 169.333) (2004 - 2012) 2034 ccm, 100 kw, 136 hp [Fitting Position :: Front Axle]

B-CLASS Sports Tourer (W245) B 150 (245.231) (2005 - 2011) 1498 ccm, 70 kw, 95 hp [Fitting Position :: Front Axle]

B-CLASS Sports Tourer (W245) B 160 (245.231) (2009 - 2011) 1498 ccm, 70 kw, 95 hp [Fitting Position :: Front Axle]

B-CLASS Sports Tourer (W245) B 170 (245.232) (2005 - 2011) 1699 ccm, 85 kw, 116 hp [Fitting Position :: Front Axle]

B-CLASS Sports Tourer (W245) B 180 (245.232) (2009 - 2011) 1699 ccm, 85 kw, 116 hp [Fitting Position :: Front Axle]
