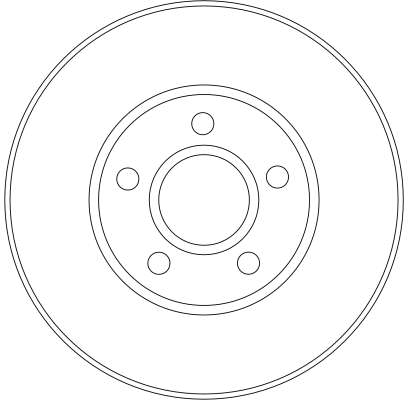

TRW DF4277 Brake Disc for FORD

Reference DF4277

Brand TRW

FORD ➤ TOURNEO CONNECT | TRANSIT CONNECT

€45.33

€40.80 Save 10%

Tax included

Quantity

Available in warehouses

W01: 6 qty

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Product Details

Reference DF4277

EAN13 3322937369805

MPN DF4277

In stock 6 Items

Condition New

Data sheet

Test Mark: E190R-02C0176/0041
Height [mm]: 44,7
Brake Disc Type: Vented
Brake Disc Thickness [mm]: 24
Thread Size: 13,8
Minimum thickness [mm]: 22
Colour: black
Machining: High-carbon
Outer Diameter [mm]: 278
Number of Holes: 5
Centering Diameter [mm]: 63,6
Bolt Hole Circle Ø [mm]: 108
Surface: Painted

A.B.S.: 17416
A.P.: 24928E
APEC: DSK2179
ATE: 24.0124-0179.1
BENDIX - OLD: 562251B
BENDIX - OLD: 562251BC
BORG & BECK: BBD4316
BOSCH: 0 986 479 069
BOSCH: 0 986 479 B66
Brake ENGINEERING: DI956228
BREMBO: 09.9589.11
BREMBO: 09.9589.14
CAR: 142227
DELPHI: BG3826
DELPHI: BG3826T
DITAS: DFD1025
FEBI BILSTEIN: 26592
FERODO: DDF1172
FERODO: DDF11721
FERODO: DDF1172C
FIRST LINE: FBD1326
FORD: 1361298
FORD: 1361300
FORD: 2268027
FORD: 2T141125CC
FORD: 2T141125EC
FORD: 4367104
FORD: 4367105
FORD: 4367106
FORD: 4455980
FORD: 4457985
FTE: 9072121
FTE: BS5366
HELLA: 8DD 355 110-281
HELLA: 8DD 355 110-282
HELLA PAGID: 8DD355110281
HELLA PAGID: 8DD355110282
Hi-Q: SD5305
JURID: 562251J
JURID: 562251JC
LEMFÖRDER: 30370 01
LPR: F1006V
LPR: F1006VR
MAGNETI MARELLI: 353611765240
MAGNETI MARELLI: 360704000300
MAPCO: 15699
MERITOR: MBR6022
METELLI: 23-0760C
METELLI: 230760
METZGER: 24928E
MEYLE: 715 521 7030
MEYLE: 783 521 7030/PD
MGA: D1469
MINTEX: MDC1556
MINTEX: MDC1556C
National: NBD1244
NK: 202555
NK: 312555
PAGID: 54248
PAGID: 54248PRO
PE Automotive: 11600900A
PEX: 140907
PILENGA: V256
QH Benelux: 58080
QUINTON HAZELL: BDC5366
QUINTON HAZELL: BSF5366
RAICAM: RD00264
REMSA: 666210
ROADHOUSE: 666210
ST-TEMPLIN: 0311080970
ST-TEMPLIN: 0311080975
SWAG: 50926592
TEXTAR: 92124800
TEXTAR: 92124803
TRISCAN: 812016141
TRUSTING: DF921
VALEO: 186748
VALEO: 297748
ZIMMERMANN: 250.1350.20
ZIMMERMANN: 250135000
ZIMMERMANN: 250135050

FORD

TOURNEO CONNECT 1.8 16V (2002 - 2013) 1796 ccm, 85 kw, 116 hp [Braking/Driving Dynamics :: for vehicles with ABS, Braking/Driving Dynamics :: for vehicles with TC, Fitting Position :: Front Axle]

TOURNEO CONNECT 1.8 TDCi (2002 - 2013) 1753 ccm, 66 kw, 90 hp [Braking/Driving Dynamics :: for vehicles with ABS, Braking/Driving Dynamics :: for vehicles with TC, Fitting Position :: Front Axle]

TOURNEO CONNECT 1.8 TDCi (2006 - 2013) 1753 ccm, 81 kw, 110 hp [Fitting Position :: Front Axle, Rims :: for steel rims]

TOURNEO CONNECT 1.8 TDCi /TDDi /DI (2002 - 2013) 1753 ccm, 55 kw, 75 hp [Braking/Driving Dynamics :: for vehicles with ABS, Braking/Driving Dynamics :: for vehicles without TC, Fitting Position :: Front Axle]

TRANSIT CONNECT (P65_, P70_, P80_) 1.8 16V (2002 - 2013) 1796 ccm, 85 kw, 116 hp [Fitting Position :: Front Axle]

TRANSIT CONNECT (P65_, P70_, P80_) 1.8 16V LPG (2002 - 2013) 1796 ccm, 85 kw, 116 hp [Fitting Position :: Front Axle]

TRANSIT CONNECT (P65_, P70_, P80_) 1.8 Di (2002 - 2013) 1753 ccm, 55 kw, 75 hp [Fitting Position :: Front Axle]

TRANSIT CONNECT (P65_, P70_, P80_) 1.8 TDCi (2002 - 2013) 1753 ccm, 66 kw, 90 hp [Fitting Position :: Front Axle]

TRANSIT CONNECT (P65_, P70_, P80_) 1.8 TDCi (2006 - 2013) 1753 ccm, 81 kw, 110 hp [Fitting Position :: Front Axle]

Reviews

No customer reviews for the moment.

13 other products in the same category:

-10% -10%

Quick view

Reference: 24.0124-0179.1

Brand: ATE

ATE 24.0124-0179.1 Brake Disc for FORD

Bolt Hole Circle Ø [mm] : 108,0, Bore Diameter [mm] : 13,7, Brake Disc Thickness [mm] : 24,0, Brake Disc Type : Vented, Centering Diameter [mm] : 63,5, Height [mm] : 44,5, Inner Diameter [mm] : 136,0, MAPP code available : , Minimum thickness [mm] : 22,0, Number of Holes : 5, Outer Diameter [mm] : 278,0, Surface : Coated, Test Mark : E1 90R-02C0115/0277

Review(s): 0

€43.01 €47.79

In stock

-10% -10%

Quick view

Reference: 60-00-0325C

Brand: ASHIKA

ASHIKA 60-00-0325C Brake Disc Front Axle for FORD

Fitting Position : Front Axle, Brake Disc Thickness [mm] : 24,0, Brake Disc Type : internally vented, for OE number : 2T141125CC, Height [mm] : 44,4, Minimum thickness [mm] : 22,0, Outer Diameter [mm] : 278, Surface : Painted

Review(s): 0

€36.03 €40.03

In stock

-10% -10%

Quick view

Reference: 250.1350.20

Brand: ZIMMERMANN

ZIMMERMANN 250.1350.20 COAT Z Brake Disc for FORD

Bolt Hole Circle Ø [mm] : 108, Brake Disc Thickness [mm] : 24, Brake Disc Type : internally vented, Centering Diameter [mm] : 64, Height [mm] : 44, Hole Arrangement/Number : 5/5, Minimum thickness [mm] : 22, Outer Diameter [mm] : 278, Rim Hole Number : 5, Surface : Coated, Test Mark : ECE R90 Approved, Weight [kg] : 7,1

Review(s): 0

€47.11 €52.34

Last items in stock

-10% -10%

Quick view

Reference: 0 986 479 B66

Brand: BOSCH

BOSCH 0 986 479 B66 Brake Disc for FORD

Bolt Hole Circle Ø [mm] : 108, Bore Diameter up to [mm] : 13,8, Brake Disc Thickness [mm] : 24, Brake Disc Type : Vented, Centering Diameter [mm] : 63,55, fulfils ECE norm : ECE-R90, Height [mm] : 44,4, Minimum thickness [mm] : 22, Number of Holes : 5, Outer Diameter [mm] : 278, Surface : Coated

Review(s): 0

€42.70 €47.45

In stock

-10% -10%

Quick view

Reference: 23-0760C

Brand: METELLI

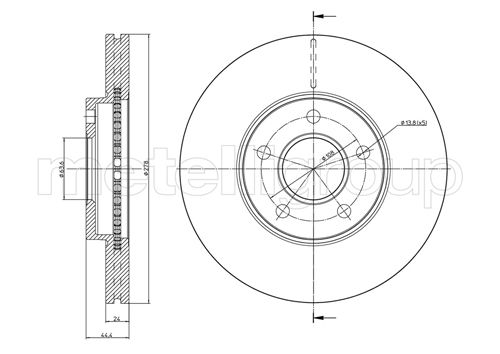

METELLI 23-0760C Brake Disc for FORD
