TRW DF4209S TRW SINGLE Brake Disc for AUDI VW

Reference DF4209S

Brand TRW

AUDI, VW ➤ A6 C4 | A6 C4 Avant | A8 D2 | A8 D3 | PHAETON

€62.37

€56.14 Save 10%

Tax included

Quantity

Available in warehouses

W01: 11 qty

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Product Details

Reference DF4209S

EAN13 3322937364411

MPN DF4209S

In stock 11 Items

Condition New

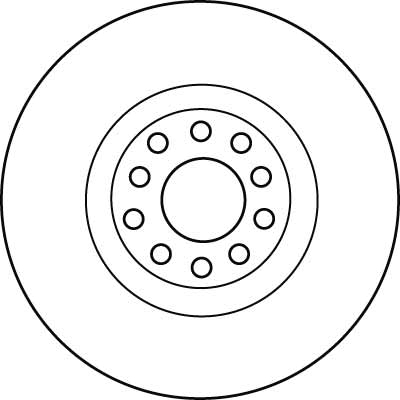

Data sheet

Centering Diameter [mm]: 68
Bolt Hole Circle Ø [mm]: 112
Surface: Painted
Height [mm]: 59,5
Brake Disc Type: Vented
Brake Disc Thickness [mm]: 30
Thread Size: 15,5
Minimum thickness [mm]: 28
Colour: black
Machining: High-carbon
Outer Diameter [mm]: 323
Number of Holes: 10

A.B.S.: 16929
A.P.: 24784V
A.P.: 25073V
APEC: DSK2119
ATE: 24.0130-0108.1
ATE: 24.0130-0183.1
ATE: 24113001081
AUDI: 3D0615301G
AUDI: 4D0615301A
AUDI: 4D0615301F
AUDI: 4D0615301J
BENDIX - OLD: 562175B
BENDIX - OLD: 562175BC
BLUE PRINT: ADV1843128
BORG & BECK: BBD5730S
BOSCH: 0 986 479 060
BOSCH: 0 986 AB6 136
BOSCH: 0986478575
Brake ENGINEERING: DI956026S
BREMBO: 09.8324.11
BREMBO: 09.9911.11
CAR: 1421573
CAR: 142288
CAR: HPD288
DBA Australia: DBA242
DBA Australia: DBA5242
DELPHI: BG3524
FEBI BILSTEIN: 22964
FERODO: DDF1150
FERODO: DDF1150C
FERODO: DDF1150C1
FERODO: DDF1563
FERODO: DDF1563C
FERODO: DDF1563C1
FIRST LINE: FBD1258
FTE: 9071302
FTE: 9081246
FTE: BS5009
FTE: BS5009B
FTE: BS5009HB
HELLA: 8DD 355 106-702
HELLA: 8DD 355 118-611
HELLA: 8DD 355 127-421
HELLA: 8DD355106691
HELLA: 8DD355106701
HELLA: 8DD355109831
HELLA: 8DD355121001
HELLA PAGID: 8DD355106702
HELLA PAGID: 8DD355121001
HELLA PAGID: 8DD355127421
JURID: 562175J
JURID: 562175JC
LPR: A1018V
MAGNETI MARELLI: 351013920500
MAPCO: 15873
METELLI: 230737
METELLI: 230737C
METZGER: 24784V
METZGER: 25073V
METZGER: 6110557
MEYLE: 115 521 1109
MEYLE: 1155211109PD
MEYLE: 183 521 1109/PD
MGA: D1517
MINTEX: MDC1419
National: NBD1049
NK: 204791
NK: 314791
NK: 344791
OPEN PARTS: BDR220620
OPTIMAL: BS7552
OPTIMAL: BS7552C
OPTIMAL: BS7552HC
PAGID: 50264
PAGID: 50264PRO
PAGID: 54221
PEX: 140788
PILENGA: V879
QH Benelux: 57914
QUINTON HAZELL: BDC5009
QUINTON HAZELL: BSF5009
REMSA: 678110
REMY: RAD2228C
ROADHOUSE: 678110
ST-TEMPLIN: 0311010390
ST-TEMPLIN: 0311010395
SWAG: 30922964
TEXTAR: 92098300
TEXTAR: 92098303
TEXTAR: 92098305
TEXTAR: 92122100
TEXTAR: 92122103
TRISCAN: 812029186
TRISCAN: 812029188
TRISCAN: 812029188C
TRUSTING: DF1199
TRW: DF4209
VAICO: V1080011
VW: 3D0615301G
VW: 4D0615301F
VW: 4D0615301J
ZIMMERMANN: 100.3303.20
ZIMMERMANN: 100.3303.52
ZIMMERMANN: 100123800
ZIMMERMANN: 100123850
ZIMMERMANN: 100330300
ZIMMERMANN: 100330350

AUDI

A6 C4 (4A2) S6 Plus quattro (1996 - 1997) 4172 ccm, 240 kw, 326 hp [Fitting Position :: Front Axle]

A6 C4 Avant (4A5) S6 Plus quattro (1996 - 1997) 4172 ccm, 240 kw, 326 hp [Fitting Position :: Front Axle]

A8 D2 (4D2, 4D8) 2.5 TDI (1997 - 2000) 2496 ccm, 110 kw, 150 hp [Construction Year from :: 199810, Fitting Position :: Front Axle]

A8 D2 (4D2, 4D8) 2.5 TDI (2000 - 2002) 2496 ccm, 132 kw, 180 hp [Fitting Position :: Front Axle]

A8 D2 (4D2, 4D8) 2.5 TDI quattro (1997 - 2000) 2496 ccm, 110 kw, 150 hp [Construction Year from :: 199810, Fitting Position :: Front Axle]

A8 D2 (4D2, 4D8) 2.8 (1996 - 2002) 2771 ccm, 142 kw, 193 hp [Construction Year from :: 199810, Fitting Position :: Front Axle]

A8 D2 (4D2, 4D8) 2.8 quattro (1996 - 2002) 2771 ccm, 142 kw, 193 hp [Construction Year from :: 199811, Fitting Position :: Front Axle, for PR number :: 1LX, Vehicle Identification Number (VIN) from :: 4DX005001]

A8 D2 (4D2, 4D8) 3.7 (1998 - 2002) 3697 ccm, 191 kw, 260 hp [Construction Year from :: 199901, Fitting Position :: Front Axle]

A8 D2 (4D2, 4D8) 3.7 quattro (1998 - 2002) 3697 ccm, 191 kw, 260 hp [Construction Year from :: 199901, Fitting Position :: Front Axle, Vehicle Identification Number (VIN) from :: 4DX005001]

A8 D2 (4D2, 4D8) 4.2 quattro (1998 - 2002) 4172 ccm, 228 kw, 310 hp [Fitting Position :: Front Axle, for PR number :: 1LX, Special Purpose Vehicle :: not for armoured vehicles]

A8 D2 (4D2, 4D8) 4.2 quattro (1999 - 2000) 4172 ccm, 175 kw, 238 hp [Fitting Position :: Front Axle, for PR number :: 1LX]

A8 D2 (4D2, 4D8) S8 quattro (1996 - 1999) 4172 ccm, 250 kw, 340 hp [Fitting Position :: Front Axle]

A8 D2 (4D2, 4D8) S8 quattro (1999 - 2002) 4172 ccm, 265 kw, 360 hp [Fitting Position :: Front Axle, Special Purpose Vehicle :: not for armoured vehicles]

A8 D3 (4E2, 4E8) 3.0 (2003 - 2005) 2976 ccm, 162 kw, 220 hp [Construction Year to :: 200406, Fitting Position :: Front Axle, for PR number :: 1LG]

A8 D3 (4E2, 4E8) 3.0 (2003 - 2006) 2976 ccm, 160 kw, 218 hp [Construction Year to :: 200406, Fitting Position :: Front Axle, for PR number :: 1LG]

A8 D3 (4E2, 4E8) 3.0 quattro (2003 - 2004) 2976 ccm, 160 kw, 218 hp [Fitting Position :: Front Axle, for PR number :: 1LG]

A8 D3 (4E2, 4E8) 3.0 quattro (2003 - 2005) 2976 ccm, 162 kw, 220 hp [Construction Year to :: 200406, Fitting Position :: Front Axle, for PR number :: 1LG]

A8 D3 (4E2, 4E8) 3.0 TDI quattro (2003 - 2010) 2967 ccm, 171 kw, 233 hp [Construction Year to :: 200406, Fitting Position :: Front Axle, for PR number :: 1LG]

A8 D3 (4E2, 4E8) 3.0 TDI quattro (2003 - 2010) 2967 ccm, 155 kw, 211 hp [Construction Year to :: 200406, Fitting Position :: Front Axle, for PR number :: 1LG]

A8 D3 (4E2, 4E8) 3.7 quattro (2002 - 2006) 3697 ccm, 206 kw, 280 hp [Construction Year to :: 200406, Fitting Position :: Front Axle, for PR number :: 1LG]

A8 D3 (4E2, 4E8) 4.0 TDI quattro (2003 - 2005) 3936 ccm, 202 kw, 275 hp [Construction Year to :: 200406, Fitting Position :: Front Axle, for PR number :: 1LG]

A8 D3 (4E2, 4E8) 4.2 quattro (2002 - 2010) 4172 ccm, 246 kw, 335 hp [Construction Year to :: 200406, Fitting Position :: Front Axle, for PR number :: 1LG]

A8 D3 (4E2, 4E8) 6.0 W12 quattro (2003 - 2010) 5998 ccm, 331 kw, 450 hp [Construction Year to :: 200406, Fitting Position :: Front Axle, for PR number :: 1LG]

A8 D3 (4E2, 4E8) S8 quattro (2006 - 2010) 5204 ccm, 331 kw, 450 hp [Fitting Position :: Front Axle, for PR number :: 1LG]

VW

PHAETON (3D1, 3D2, 3D3, 3D4, 3D6, 3D7, 3D8, 3D9) 3.0 V6 TDI 4motion (2004 - 2007) 2967 ccm, 165 kw, 224 hp [Fitting Position :: Front Axle, for PR number :: 1LX]

PHAETON (3D1, 3D2, 3D3, 3D4, 3D6, 3D7, 3D8, 3D9) 3.2 V6 (2002 - 2005) 3189 ccm, 177 kw, 241 hp [Fitting Position :: Front Axle, for PR number :: 1LX]
