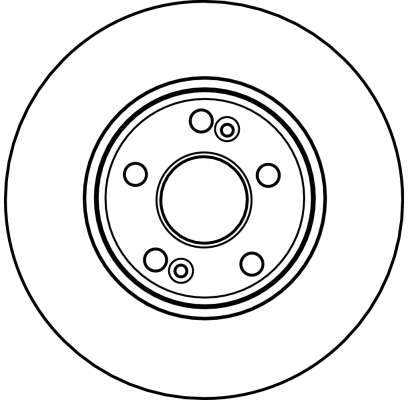

TRW DF4109 Brake Disc for RENAULT

DF4109
RENAULT ➤ ESPACE III | KANGOO Express | LAGUNA I | LAGUNA I Grandtour | SAFRANE I | SAFRANE II | SCÉNIC I MPV
€33.20
€29.88 Save 10%
Tax included
Quantity

Available in warehouses
W01
6 qty
  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Product Details
DF4109
3322937280513
DF4109
6 Items
New

Data sheet

Centering Diameter [mm]
61
Bolt Hole Circle Ø [mm]
108
Surface
Painted
Supplementary Article/Info 2
with bolts/screws
Test Mark
E1 90R-02 C0185/0607
Height [mm]
44
Brake Disc Type
Vented
Brake Disc Thickness [mm]
24
Thread Size
13,5
Minimum thickness [mm]
21,8
Colour
black
Machining
High-carbon
Outer Diameter [mm]
280
Number of Holes
5
A.B.S.
16219
A.P.
22025E
ACDelco
AC2168D
ACDelco
AC2513D
APEC
DSK834
ATE
24.0124-0126.1
ATE
24.0124-0171.1
ATE
24.0324-0126.1
ATE
24.0324-0171.1
BENDIX - OLD
561593B
BENDIX - OLD
561593BC
BENDIX - OLD
562104B
BENDIX - OLD
562104BC
BORG & BECK
BBD5020
BOSCH
0 986 478 734
BOSCH
0 986 BB4 080
BOSCH
0986478797
BRADI
140302F
Brake ENGINEERING
DI955321
BREMBO
09.8137.11
BREMBO
09.8137.14
BREMBO
09.8137.75
BREMBO
09568610
BREMBO
09738610
BREMBO
09738630
CAR
142544
CAR
142561
CAR
HPD544
CAR
HPD561
DBA Australia
DBA2353
DELPHI
BG2697
DELPHI
BS4406
FEBI BILSTEIN
12097
FERODO
DDF1101
FERODO
DDF1123
FERODO
DDF11231
FERODO
DDF1123C
FERODO
DDF369
FERODO
DRF1123
FERODO
DRF3695
FERODO
DRF369S
FIRST LINE
FBD1240
FIRST LINE
FBD540
FTE
9072130
FTE
9082304
FTE
BS4406
FTE
BS4406B
HELLA
8DD 355 127-741
HELLA
8DD355108621
HELLA
8DD355108631
HELLA PAGID
8DD355127741
JURID
561593J
JURID
561593JC
JURID
562104J
JURID
562104JC
LEMFÖRDER
18163 01
LPR
R1311V
LPR
R1571V
MAGNETI MARELLI
353614030206
MAGNETI MARELLI
431602040790
MAGNETI MARELLI
431602041760
MAPCO
151182
METELLI
23-0533
METELLI
230540
METZGER
22025E
MEYLE
16-15 521 0016
MGA
D1372
MINTEX
MDC778
National
NBD491
NK
203913
NK
313913
OBTEC A/S
272757V
OPTIMAL
BS3010
OPTIMAL
BS6360
OPTIMAL
BS6360C
PAGID
50288
PAGID
54138
PAGID
54138PRO
PEX
140498
PILENGA
V744
QH Benelux
57453
QH Benelux
57969
QUINTON HAZELL
820805
QUINTON HAZELL
BDC4339
QUINTON HAZELL
BDC4406
QUINTON HAZELL
BSF4339
QUINTON HAZELL
BSF4406
REMSA
630110
REMSA
662210
REMSA
820805
REMY
RAD1616C
RENAULT
7700802231
RENAULT
7700830283
RENAULT
7701204305
RENAULT
7701205231
RENAULT
7701205843
RENAULT
7701206198
RENAULT
7703004128
ROADHOUSE
630110
ROADHOUSE
820805
ROULUNDS RUBBER
D2168
ROULUNDS RUBBER
D2513
ST-TEMPLIN
0311025230
ST-TEMPLIN
0311025235
SWAG
60912097
TEXTAR
92113800
TEXTAR
92113803
TEXTAR
98200065201
TEXTAR
98200102101
TRISCAN
812025110
TRISCAN
812025127
TRUSTING
DF507
TRW
DF1033
TRW
DF4164
VALEO
186600
WOKING
P630110
ZIMMERMANN
47024110
ZIMMERMANN
470241100
ZIMMERMANN
470241120
ZIMMERMANN
470241150
ZIMMERMANN
47241150

ESPACE III (JE0_) 1.9 dTi (JE0M) (1999 - 2002) 1870 ccm, 72 kw, 98 hp [Fitting Position :: Front Axle]

ESPACE III (JE0_) 2.0 (2001 - 2002) 1998 ccm, 102 kw, 139 hp [Fitting Position :: Front Axle]

ESPACE III (JE0_) 2.0 (JE0A) (1996 - 2000) 1998 ccm, 84 kw, 114 hp [Fitting Position :: Front Axle]

ESPACE III (JE0_) 2.0 16V (JE0N, JE0L, JE02) (1998 - 2002) 1998 ccm, 103 kw, 140 hp [Fitting Position :: Front Axle]

ESPACE III (JE0_) 2.2 12V TD (JE0E, JE0H, JE0P) (1996 - 2000) 2188 ccm, 83 kw, 113 hp [Fitting Position :: Front Axle]

ESPACE III (JE0_) 2.2 D (1997 - 2000) 2188 ccm, 84 kw, 114 hp [Fitting Position :: Front Axle]

ESPACE III (JE0_) 3.0 (JE0D) (1996 - 1998) 2963 ccm, 123 kw, 167 hp [Fitting Position :: Front Axle]

KANGOO Express (FW0/1_) 1.6 16V FLEX (FW01) (2008 - ) 1598 ccm, 78 kw, 106 hp [Brake Size :: 15", Brake Size :: 16", Fitting Position :: Front Axle]

LAGUNA I (B56_, 556_) 1.8 16V (B563, B564) (1998 - 2001) 1783 ccm, 88 kw, 120 hp [Construction Year to :: 199909, Fitting Position :: Front Axle]

LAGUNA I (B56_, 556_) 2.0 (1999 - 2001) 1998 ccm, 80 kw, 109 hp [Construction Year to :: 199909, Fitting Position :: Front Axle]

LAGUNA I (B56_, 556_) 2.0 (1995 - 2001) 1948 ccm, 103 kw, 140 hp [Fitting Position :: Front Axle]

LAGUNA I (B56_, 556_) 2.0 16V (B56D, B56M) (1995 - 2001) 1948 ccm, 102 kw, 139 hp [Fitting Position :: Front Axle]

LAGUNA I (B56_, 556_) 2.2 dT (B569) (1996 - 2001) 2188 ccm, 83 kw, 113 hp [Construction Year to :: 199909, Fitting Position :: Front Axle]

LAGUNA I (B56_, 556_) 3.0 (B56E, B565, B56R) (1993 - 2001) 2963 ccm, 123 kw, 167 hp [Fitting Position :: Front Axle]

LAGUNA I (B56_, 556_) 3.0 24V (B56V) (1997 - 2001) 2946 ccm, 140 kw, 190 hp [Construction Year to :: 199909, Fitting Position :: Front Axle]

LAGUNA I Grandtour (K56_) 1.6 16V (K568) (1997 - 2001) 1598 ccm, 79 kw, 107 hp [Fitting Position :: Front Axle, TecDoc Engine Number :: 16269]

LAGUNA I Grandtour (K56_) 2.0 16V (K56D, K56M) (1995 - 2001) 1948 ccm, 102 kw, 139 hp [Fitting Position :: Front Axle]

LAGUNA I Grandtour (K56_) 2.2 dT (K569) (1996 - 2001) 2188 ccm, 83 kw, 113 hp [Fitting Position :: Front Axle]

LAGUNA I Grandtour (K56_) 3.0 (K56R, K565) (1996 - 2001) 2963 ccm, 123 kw, 167 hp [Fitting Position :: Front Axle]

LAGUNA I Grandtour (K56_) 3.0 24V (K56V) (1997 - 2001) 2946 ccm, 140 kw, 190 hp [Construction Year to :: 199909, Fitting Position :: Front Axle]

SAFRANE I (B54_) 3.0 (1993 - 1996) 2963 ccm, 125 kw, 170 hp [Fitting Position :: Front Axle]

SAFRANE I (B54_) 3.0 (1993 - 1996) 2975 ccm, 125 kw, 170 hp [Fitting Position :: Front Axle]

SAFRANE I (B54_) 3.0 Biturbo 4x4 (B545) (1993 - 1996) 2963 ccm, 193 kw, 262 hp [Fitting Position :: Front Axle]

SAFRANE I (B54_) 3.0 V6 (B54B, B544) (1992 - 1996) 2975 ccm, 123 kw, 167 hp [Fitting Position :: Front Axle]

SAFRANE I (B54_) 3.0 V6 4x4 (B54B, B544) (1992 - 1996) 2975 ccm, 123 kw, 167 hp [Fitting Position :: Front Axle]

SAFRANE II (B54_) 2.0 16V (B54L) (1996 - 2000) 1948 ccm, 100 kw, 136 hp [Construction Year from :: 199802, Fitting Position :: Front Axle]

SAFRANE II (B54_) 2.2 dT (B54G) (1996 - 2000) 2188 ccm, 83 kw, 113 hp [Fitting Position :: Front Axle]

SAFRANE II (B54_) 2.5 20V (B54F) (1996 - 2000) 2435 ccm, 121 kw, 165 hp [Fitting Position :: Front Axle]

SAFRANE II (B54_) 2.9 24V (B54N) (1999 - 2000) 2946 ccm, 140 kw, 190 hp [Fitting Position :: Front Axle]

SAFRANE II (B54_) 3.0 V6 (B54M) (1996 - 2000) 2963 ccm, 123 kw, 167 hp [Fitting Position :: Front Axle]

SCÉNIC I MPV (JA0/1_, FA0_) 1.9 dCi RX4 (2000 - 2003) 1870 ccm, 75 kw, 102 hp [Construction Year to :: 200203, Fitting Position :: Front Axle]

SCÉNIC I MPV (JA0/1_, FA0_) 2.0 16V RX4 (2000 - 2003) 1998 ccm, 102 kw, 139 hp [Construction Year to :: 200203, Fitting Position :: Front Axle]
