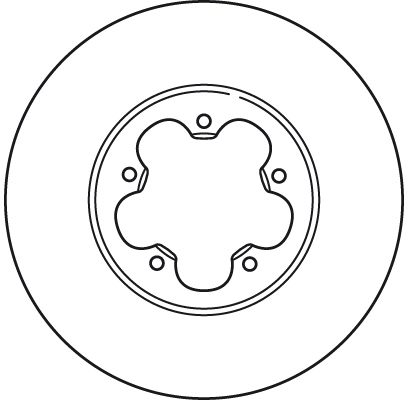

TRW DF2389S TRW SINGLE Brake Disc for FORD

Reference DF2389S

Brand TRW

FORD ➤ TRANSIT Bus | TRANSIT Platform/Chassis | TRANSIT TOURNEO Bus | TRANSIT Van

€37.27

€33.54 Save 10%

Tax included

Quantity

Available in warehouses

W01: 42 qty

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Product Details

Reference DF2389S

EAN13 3322937957040

MPN DF2389S

In stock 42 Items

Condition New

Data sheet

Bolt Hole Circle Ø [mm]: 111,5
Surface: Painted
Test Mark: E190R-02C0176/0571
Height [mm]: 54
Brake Disc Type: Vented
Brake Disc Thickness [mm]: 28
Thread Size: M10
Minimum thickness [mm]: 25
Colour: black
Outer Diameter [mm]: 280
Number of Holes: 5
Centering Diameter [mm]: 93

A.B.S.: 09A52910
A.P.: 25266
APEC: DSK2425
ATE: 24.0128-0156.1
BENDIX - OLD: 562541BC
BORG & BECK: BBD4563
BOSCH: 0 986 479 392
BOSCH: 0 986 479 C09
BREMBO: 09.A529.10
CAR: 1421419
CAR: HPD1419
DELPHI: BG4007
FEBI BILSTEIN: 28388
FERODO: DDF1554
FERODO: DDF15541
FERODO: DDF1554C
FIRST LINE: FBD1626
FORD: 1371394
FORD: 1503290
FORD: 1547061
FORD: 6C111125B1B
FORD: 6C111125BB
FTE: 9071142
FTE: 9081133
FTE: BS7112
FTE: BS7112B
HELLA: 8DD 355 113-261
HELLA: 8DD 355 128-621
HELLA: 8DD355113251
HELLA PAGID: 8DD355113261
HELLA PAGID: 8DD355128621
JURID: 562541JC
LPR: F1017V
LPR: F1017VR
MAGNETI MARELLI: 360406105300
MAGNETI MARELLI: 360704016300
MAGNETI MARELLI: 361302040540
METELLI: 23-0898
MEYLE: 715 521 7043
MEYLE: 7155217043PD
MEYLE: 783 521 7043/PD
MGA: D1641
MINTEX: MDC1759
MINTEX: MDC1759C
NK: 202575
NK: 312575
PAGID: 54518
PAGID: 54518PRO
QUINTON HAZELL: BDC5523
QUINTON HAZELL: BSF5523
REMSA: 6102110
REMY: RAD1368C
ROADHOUSE: 6102110
ST-TEMPLIN: 031102600130
ST-TEMPLIN: 0311080990
ST-TEMPLIN: 0311080995
SWAG: 50928388
TEXTAR: 92151800
TEXTAR: 92151803
TRISCAN: 812016145
TRUSTING: DF1007
TRW: DF4820S
VALEO: 187150
VALEO: 197249
ZIMMERMANN: 250135600

FORD

TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.2 TDCi (2011 - 2014) 2198 ccm, 74 kw, 100 hp [Fitting Position :: Front Axle]

TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.2 TDCi (2011 - 2014) 2198 ccm, 92 kw, 125 hp [Fitting Position :: Front Axle, Vehicle type :: Transit 280, Vehicle type :: Transit 300, Vehicle type :: Transit Tourneo]

TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.2 TDCi (2006 - 2014) 2198 ccm, 63 kw, 85 hp [Fitting Position :: Front Axle, Vehicle type :: 280, Vehicle type :: 300]

TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.2 TDCi (2006 - 2014) 2198 ccm, 81 kw, 110 hp [Fitting Position :: Front Axle, Vehicle type :: 280, Vehicle type :: 300]

TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.2 TDCi (2006 - 2014) 2198 ccm, 96 kw, 130 hp [Fitting Position :: Front Axle, Vehicle type :: 280, Vehicle type :: 300]

TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.2 TDCi (2007 - 2014) 2198 ccm, 103 kw, 140 hp [Fitting Position :: Front Axle, Vehicle type :: 280, Vehicle type :: 300]

TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.2 TDCi (2008 - 2014) 2198 ccm, 85 kw, 115 hp [Fitting Position :: Front Axle, Vehicle type :: Transit 280, Vehicle type :: Transit 300]

TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) 2.2 TDCi (2011 - 2014) 2198 ccm, 74 kw, 100 hp [Fitting Position :: Front Axle, Vehicle type :: 300]

TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) 2.2 TDCi (2011 - 2014) 2198 ccm, 92 kw, 125 hp [Fitting Position :: Front Axle, Vehicle type :: Transit 300]

TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) 2.2 TDCi (2006 - 2014) 2198 ccm, 81 kw, 110 hp [Fitting Position :: Front Axle, Vehicle type :: 300]

TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) 2.2 TDCi (2006 - 2014) 2198 ccm, 63 kw, 85 hp [Fitting Position :: Front Axle]

TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) 2.2 TDCi (2006 - 2014) 2198 ccm, 96 kw, 130 hp [Fitting Position :: Front Axle, Vehicle type :: 300]

TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) 2.2 TDCi (2007 - 2011) 2198 ccm, 103 kw, 140 hp [Fitting Position :: Front Axle, Vehicle type :: Transit 300]

TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) 2.2 TDCi (2008 - 2014) 2198 ccm, 85 kw, 115 hp [Fitting Position :: Front Axle, Vehicle type :: Transit 300]

TRANSIT TOURNEO Bus 2.2 (2011 - 2014) 2198 ccm, 92 kw, 125 hp [Fitting Position :: Front Axle]

TRANSIT TOURNEO Bus 2.2 TDCi (2006 - 2014) 2198 ccm, 81 kw, 110 hp [Fitting Position :: Front Axle, Payload [kg] :: 2825, Payload [kg] :: 3025]

TRANSIT TOURNEO Bus 2.2 TDCi (2006 - 2014) 2198 ccm, 96 kw, 131 hp [Fitting Position :: Front Axle, Payload [kg] :: 2825, Payload [kg] :: 3025]

TRANSIT TOURNEO Bus 2.2 TDCi (2007 - 2014) 2198 ccm, 103 kw, 140 hp [Fitting Position :: Front Axle, Payload [kg] :: 2825, Payload [kg] :: 3025]

TRANSIT TOURNEO Bus 2.2 TDCi (2008 - 2014) 2198 ccm, 85 kw, 115 hp [Fitting Position :: Front Axle, Payload [kg] :: 2825, Payload [kg] :: 3025]

TRANSIT Van (FA_ _) 2.2 TDCi (2011 - 2014) 2198 ccm, 74 kw, 100 hp [Fitting Position :: Front Axle, Vehicle type :: Transit 260, Vehicle type :: Transit 280, Vehicle type :: Transit 300]

TRANSIT Van (FA_ _) 2.2 TDCi (2011 - 2014) 2198 ccm, 92 kw, 125 hp [Fitting Position :: Front Axle, Vehicle type :: Transit 260, Vehicle type :: Transit 280, Vehicle type :: Transit 300]

TRANSIT Van (FA_ _) 2.2 TDCi (2006 - 2014) 2198 ccm, 81 kw, 110 hp [Fitting Position :: Front Axle, Vehicle type :: 260, Vehicle type :: 280, Vehicle type :: 300]

TRANSIT Van (FA_ _) 2.2 TDCi (2006 - 2014) 2198 ccm, 96 kw, 130 hp [Fitting Position :: Front Axle, Vehicle type :: 260, Vehicle type :: 280, Vehicle type :: 300]

TRANSIT Van (FA_ _) 2.2 TDCi (2006 - 2014) 2198 ccm, 63 kw, 85 hp [Fitting Position :: Front Axle]

TRANSIT Van (FA_ _) 2.2 TDCi (2007 - 2014) 2198 ccm, 103 kw, 140 hp [Fitting Position :: Front Axle, Vehicle type :: Transit 260, Vehicle type :: Transit 280, Vehicle type :: Transit 300]

TRANSIT Van (FA_ _) 2.2 TDCi (2008 - 2014) 2198 ccm, 85 kw, 115 hp [Fitting Position :: Front Axle, Vehicle type :: 260, Vehicle type :: 280, Vehicle type :: 300]
