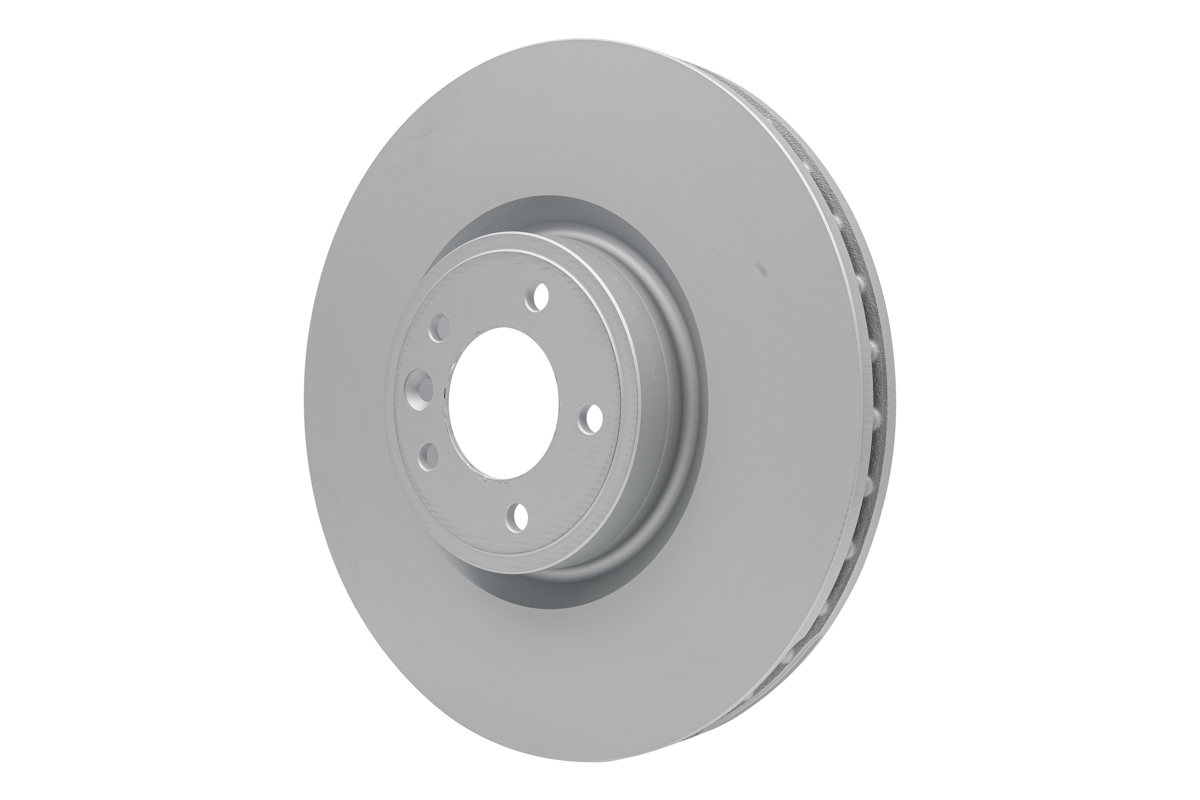

ATE 24.0134-0117.1 Brake Disc for LAND ROVER

24.0134-0117.1
LAND ROVER ➤ DEFENDER Station Wagon | DEFENDER Van | DISCOVERY V | DISCOVERY V VAN | RANGE ROVER IV | RANGE ROVER SPORT II
€120.14
€108.12 Save 10%
Tax included
Quantity

Available in warehouses
W01
8 qty
  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Product Details
24.0134-0117.1
4006633490542
24.0134-0117.1
8 Items
New

Data sheet

Number of Holes
5
Centering Diameter [mm]
79,0
Bolt Hole Circle Ø [mm]
120,0
Surface
Coated
MAPP code available
Test Mark
E1 90R-02C0115/1245
Height [mm]
62,0
Bore Diameter [mm]
14,5
Brake Disc Type
Vented
Brake Disc Thickness [mm]
34,0
Minimum thickness [mm]
32,0
Machining
Alloyed/High-carbon
Inner Diameter [mm]
165,0
Outer Diameter [mm]
380,0
AP
20153V
BENDIX - OLD
BDS2323HC
BRECO
BV9430
BREMBO
09.C820.11
DELPHI
BG9390C
FEBI BILSTEIN
108529
HELLA
8DD 355 132-951
LAND ROVER
LR098968
LAND ROVER
LR161894
MINTEX
8DD355132951
MINTEX
MDC2945C
TEXTAR
92316405
TRW
DF6957S
ZIMMERMANN
450.5212.20
ZIMMERMANN
450.5212.52
434117

DEFENDER Station Wagon (L663) D200 MHEV 4x4 (2020 - ) 2997 ccm, 147 kw, 200 hp [Brake Size :: 20", Fitting Position :: Front Axle]

DEFENDER Station Wagon (L663) D200 SD4 4x4 (2019 - ) 1999 ccm, 147 kw, 200 hp [Brake Size :: 20", Fitting Position :: Front Axle]

DEFENDER Station Wagon (L663) D240 SD4 4x4 (2019 - ) 1999 ccm, 177 kw, 241 hp [Brake Size :: 20", Fitting Position :: Front Axle]

DEFENDER Station Wagon (L663) D250 MHEV 4x4 (2020 - ) 2997 ccm, 183 kw, 249 hp [Brake Size :: 20", Fitting Position :: Front Axle]

DEFENDER Station Wagon (L663) D300 MHEV 4x4 (2020 - ) 2997 ccm, 221 kw, 300 hp [Brake Size :: 20", Fitting Position :: Front Axle]

DEFENDER Station Wagon (L663) D350 MHEV 4x4 (2024 - ) 2997 ccm, 258 kw, 350 hp [Brake Size :: 20", Fitting Position :: Front Axle]

DEFENDER Station Wagon (L663) P300 MHEV 4x4 (2022 - ) 2996 ccm, 221 kw, 300 hp [Brake Size :: 20", Fitting Position :: Front Axle]

DEFENDER Station Wagon (L663) P300 MHEV 4x4 (2023 - ) 1997 ccm, 221 kw, 300 hp [Fitting Position :: Front Axle, Rim Size [inch] :: 20.0]

DEFENDER Station Wagon (L663) P300 Si4 4x4 (2019 - ) 1997 ccm, 221 kw, 300 hp [Brake Size :: 20", Fitting Position :: Front Axle]

DEFENDER Station Wagon (L663) P300e Hybrid 4x4 (2024 - ) 1997 ccm, 221 kw, 300 hp [Brake Size :: 20", Fitting Position :: Front Axle]

DEFENDER Station Wagon (L663) P400 I6 MHEV 4x4 (2019 - ) 2996 ccm, 294 kw, 400 hp [Brake Size :: 20", Fitting Position :: Front Axle]

DEFENDER Station Wagon (L663) P400e Hybrid 4x4 (2020 - ) 1997 ccm, 297 kw, 404 hp [Brake Size :: 20", Fitting Position :: Front Axle]

DEFENDER Station Wagon (L663) P425 4x4 (2024 - ) 5000 ccm, 313 kw, 426 hp [Fitting Position :: Front Axle, Rim Size [inch] :: 20.0]

DEFENDER Station Wagon (L663) P500 4x4 (2023 - ) 5000 ccm, 368 kw, 500 hp [Fitting Position :: Front Axle, Rim Size [inch] :: 20.0]

DEFENDER Station Wagon (L663) P525 4x4 (2021 - ) 5000 ccm, 386 kw, 525 hp [Fitting Position :: Front Axle, Rim Size [inch] :: 20.0]

DEFENDER Station Wagon (L663) P635 OCTA MHEV 4x4 (2024 - ) 4395 ccm, 467 kw, 635 hp [Fitting Position :: Front Axle, Rim Size [inch] :: 20.0]

DEFENDER Van (L663) 2.0 D200 SD4 4x4 (2020 - ) 1999 ccm, 147 kw, 200 hp [Brake Size :: 20", Fitting Position :: Front Axle]

DEFENDER Van (L663) 2.0 D240 SD4 4x4 (2020 - ) 1999 ccm, 177 kw, 241 hp [Brake Size :: 20", Fitting Position :: Front Axle]

DEFENDER Van (L663) 2.0 P300 Si4 4x4 (2020 - ) 1997 ccm, 221 kw, 300 hp [Brake Size :: 20", Fitting Position :: Front Axle]

DEFENDER Van (L663) 2.0 P400e Hybrid 4x4 (2020 - ) 1997 ccm, 297 kw, 404 hp [Brake Size :: 20", Fitting Position :: Front Axle]

DEFENDER Van (L663) 3.0 D200 MHEV 4x4 (2020 - ) 2997 ccm, 147 kw, 200 hp [Brake Size :: 20", Fitting Position :: Front Axle]

DEFENDER Van (L663) 3.0 D250 MHEV 4x4 (2020 - ) 2997 ccm, 183 kw, 249 hp [Brake Size :: 20", Fitting Position :: Front Axle]

DEFENDER Van (L663) 3.0 D300 MHEV 4x4 (2020 - ) 2997 ccm, 221 kw, 300 hp [Brake Size :: 20", Fitting Position :: Front Axle]

DEFENDER Van (L663) 3.0 D350 MHEV 4x4 (2024 - ) 2997 ccm, 258 kw, 351 hp [Brake Size :: 20", Fitting Position :: Front Axle]

DEFENDER Van (L663) 3.0 P400 I6 MHEV 4x4 (2020 - ) 2996 ccm, 294 kw, 400 hp [Brake Size :: 20", Fitting Position :: Front Axle]

DISCOVERY V (L462) 2.0 Sd4 4x4 (2016 - ) 1999 ccm, 177 kw, 241 hp [Brake Size :: 20", Fitting Position :: Front Axle, Vehicle Identification Number (VIN) from :: JA000001]

DISCOVERY V (L462) 2.0 Si4 4x4 (2017 - ) 1997 ccm, 221 kw, 300 hp [Brake Size :: 20", Fitting Position :: Front Axle, Vehicle Identification Number (VIN) from :: JA000001]

DISCOVERY V (L462) 2.0 Td4 4x4 (2016 - ) 1999 ccm, 132 kw, 180 hp [Brake Size :: 20", Fitting Position :: Front Axle, Vehicle Identification Number (VIN) from :: JA000001]

DISCOVERY V (L462) 3.0 D 4x4 (2016 - ) 2993 ccm, 183 kw, 249 hp [Brake Size :: 20", Fitting Position :: Front Axle, Vehicle Identification Number (VIN) from :: JA000001]

DISCOVERY V (L462) 3.0 D 4x4 (2016 - ) 2993 ccm, 155 kw, 211 hp [Brake Size :: 20", Fitting Position :: Front Axle, Vehicle Identification Number (VIN) from :: JA000001]

DISCOVERY V (L462) 3.0 SCV6 4x4 (2016 - ) 2995 ccm, 250 kw, 340 hp [Brake Size :: 20", Fitting Position :: Front Axle, Vehicle Identification Number (VIN) from :: JA000001]

DISCOVERY V (L462) 3.0 SDV6 4x4 (2018 - ) 2993 ccm, 225 kw, 306 hp [Brake Size :: 20", Fitting Position :: Front Axle]

DISCOVERY V (L462) 3.0 Td6 4x4 (2016 - ) 2993 ccm, 190 kw, 258 hp [Brake Size :: 20", Fitting Position :: Front Axle, Vehicle Identification Number (VIN) from :: JA000001]

DISCOVERY V (L462) D250 MHEV 4x4 (2020 - ) 2997 ccm, 183 kw, 249 hp [Brake Size :: 20", Fitting Position :: Front Axle]

DISCOVERY V (L462) D300 MHEV 4x4 (2020 - ) 2997 ccm, 221 kw, 300 hp [Brake Size :: 20", Fitting Position :: Front Axle]

DISCOVERY V (L462) D350 MHEV 4x4 (2024 - ) 2997 ccm, 257 kw, 349 hp [Brake Size :: 20", Fitting Position :: Front Axle]

DISCOVERY V (L462) P360 MHEV 4x4 (2020 - ) 2996 ccm, 265 kw, 360 hp [Brake Size :: 20", Fitting Position :: Front Axle]

DISCOVERY V VAN (L462) 2.0 Sd4 4x4 (2016 - ) 1999 ccm, 177 kw, 241 hp [Brake Size :: 20", Fitting Position :: Front Axle, Vehicle Identification Number (VIN) from :: JA000001]

DISCOVERY V VAN (L462) 2.0 Si4 4x4 (2017 - ) 1997 ccm, 221 kw, 300 hp [Brake Size :: 20", Fitting Position :: Front Axle, Vehicle Identification Number (VIN) from :: JA000001]

DISCOVERY V VAN (L462) 2.0 Td4 4x4 (2016 - 2018) 1999 ccm, 132 kw, 179 hp [Brake Size :: 20", Fitting Position :: Front Axle, Vehicle Identification Number (VIN) from :: JA000001]

DISCOVERY V VAN (L462) 3.0 D300 MHEV 4x4 (2020 - ) 2997 ccm, 221 kw, 300 hp [Brake Size :: 20", Fitting Position :: Front Axle]

DISCOVERY V VAN (L462) 3.0 Scv6 4x4 (2016 - ) 2995 ccm, 250 kw, 340 hp [Brake Size :: 20", Fitting Position :: Front Axle, Vehicle Identification Number (VIN) from :: JA000001]

DISCOVERY V VAN (L462) 3.0 Sdv6 4x4 (2018 - ) 2993 ccm, 225 kw, 306 hp [Brake Size :: 20", Fitting Position :: Front Axle]

DISCOVERY V VAN (L462) 3.0 Td6 4x4 (2016 - ) 2993 ccm, 190 kw, 258 hp [Brake Size :: 20", Fitting Position :: Front Axle, Vehicle Identification Number (VIN) from :: JA000001]

RANGE ROVER IV (L405) 2.0 P400e Hybrid 4x4 (2017 - 2021) 1997 ccm, 297 kw, 404 hp [Fitting Position :: Front Axle, Rim Size [inch] :: 20.0, Vehicle Identification Number (VIN) from :: JA000001]

RANGE ROVER IV (L405) 3.0 P400 4x4 (2020 - 2021) 2996 ccm, 294 kw, 400 hp [Fitting Position :: Front Axle, Rim Size [inch] :: 20.0, Special Purpose Vehicle :: not for armoured vehicles]

RANGE ROVER IV (L405) 3.0 P400 MHEV 4x4 (2019 - 2021) 2996 ccm, 294 kw, 400 hp [Fitting Position :: Front Axle, Special Purpose Vehicle :: not for armoured vehicles]

RANGE ROVER IV (L405) 3.0 SDV6 4x4 (2012 - 2016) 2993 ccm, 183 kw, 249 hp [Fitting Position :: Front Axle, Rim Size [inch] :: 20.0, Vehicle Identification Number (VIN) from :: JA000001]

RANGE ROVER IV (L405) 3.0 SDV6 4x4 (2014 - 2021) 2993 ccm, 182 kw, 247 hp [Fitting Position :: Front Axle, Rim Size [inch] :: 20.0, Vehicle Identification Number (VIN) from :: JA000001]

RANGE ROVER IV (L405) 3.0 SDV6 4x4 (2018 - 2021) 2993 ccm, 202 kw, 275 hp [Fitting Position :: Front Axle, not for vehicle configuration line / variant :: AUTOBIOGRAPHY, Rim Size [inch] :: 20.0, Special Purpose Vehicle :: not for armoured vehicles]

RANGE ROVER IV (L405) 3.0 SDV6 4x4 (2012 - 2021) 2993 ccm, 215 kw, 292 hp [Fitting Position :: Front Axle, Rim Size [inch] :: 20.0, Vehicle Identification Number (VIN) from :: JA000001]

RANGE ROVER IV (L405) 3.0 TDV6 4x4 (2012 - 2021) 2993 ccm, 190 kw, 258 hp [Fitting Position :: Front Axle, Rim Size [inch] :: 20.0, Vehicle Identification Number (VIN) from :: JA000001]

RANGE ROVER IV (L405) 3.0 TDV6 4x4 (2013 - 2016) 2993 ccm, 155 kw, 211 hp [Fitting Position :: Front Axle, Rim Size [inch] :: 20.0, Vehicle Identification Number (VIN) from :: JA000001]

RANGE ROVER IV (L405) D250 MHEV 4x4 (2020 - 2021) 2997 ccm, 183 kw, 249 hp [Fitting Position :: Front Axle, Rim Size [inch] :: 20.0, Special Purpose Vehicle :: not for armoured vehicles]

RANGE ROVER IV (L405) D300 MHEV 4x4 (2020 - 2021) 2997 ccm, 221 kw, 300 hp [Fitting Position :: Front Axle, Rim Size [inch] :: 20.0, Special Purpose Vehicle :: not for armoured vehicles]

RANGE ROVER IV (L405) D350 MHEV 4x4 (2020 - 2021) 2997 ccm, 258 kw, 351 hp [Fitting Position :: Front Axle, Rim Size [inch] :: 20.0, Special Purpose Vehicle :: not for armoured vehicles]

RANGE ROVER IV (L405) P360 MHEV 4x4 (2019 - 2021) 2996 ccm, 265 kw, 360 hp [Fitting Position :: Front Axle, Special Purpose Vehicle :: not for armoured vehicles]

RANGE ROVER SPORT II (L494) 2.0 GTDI 4x4 (2015 - 2022) 1999 ccm, 177 kw, 241 hp [Fitting Position :: Front Axle, Rim Size [inch] :: 20.0, Vehicle Identification Number (VIN) from :: JA000001]

RANGE ROVER SPORT II (L494) 2.0 P400e PHEV 4x4 (2017 - 2022) 1997 ccm, 297 kw, 404 hp [Fitting Position :: Front Axle, Rim Size [inch] :: 20.0, Vehicle Identification Number (VIN) from :: JA000001]

RANGE ROVER SPORT II (L494) 2.0 SD4 4x4 (2016 - 2022) 1999 ccm, 177 kw, 241 hp [Fitting Position :: Front Axle, Rim Size [inch] :: 20.0, Vehicle Identification Number (VIN) from :: JA000001]

RANGE ROVER SPORT II (L494) 2.0 Si4 4x4 (2017 - 2022) 1997 ccm, 221 kw, 300 hp [Fitting Position :: Front Axle, Rim Size [inch] :: 20.0, Vehicle Identification Number (VIN) from :: JA000001]

RANGE ROVER SPORT II (L494) 3.0 4x4 (2019 - 2022) 2996 ccm, 265 kw, 360 hp [Fitting Position :: Front Axle]

RANGE ROVER SPORT II (L494) 3.0 D250 4x4 (2020 - 2022) 2997 ccm, 183 kw, 249 hp [Fitting Position :: Front Axle, Rim Size [inch] :: 20.0]

RANGE ROVER SPORT II (L494) 3.0 D250 MHEV 4x4 (2020 - 2022) 2997 ccm, 183 kw, 249 hp [Fitting Position :: Front Axle, Rim Size [inch] :: 20.0]

RANGE ROVER SPORT II (L494) 3.0 D300 4x4 (2020 - 2022) 2997 ccm, 221 kw, 300 hp [Fitting Position :: Front Axle, Rim Size [inch] :: 20.0]

RANGE ROVER SPORT II (L494) 3.0 D300 MHEV 4x4 (2020 - 2022) 2997 ccm, 221 kw, 300 hp [Fitting Position :: Front Axle, Rim Size [inch] :: 20.0]

RANGE ROVER SPORT II (L494) 3.0 D350 4x4 (2020 - 2022) 2997 ccm, 258 kw, 351 hp [Fitting Position :: Front Axle, Rim Size [inch] :: 20.0]

RANGE ROVER SPORT II (L494) 3.0 D350 MHEV 4x4 (2020 - 2022) 2997 ccm, 258 kw, 351 hp [Fitting Position :: Front Axle, Rim Size [inch] :: 20.0]

RANGE ROVER SPORT II (L494) 3.0 P360 MHEV 4x4 (2019 - 2022) 2996 ccm, 265 kw, 360 hp [Fitting Position :: Front Axle]

RANGE ROVER SPORT II (L494) 3.0 P400 MHEV 4x4 (2019 - 2022) 2996 ccm, 294 kw, 400 hp [Fitting Position :: Front Axle]
