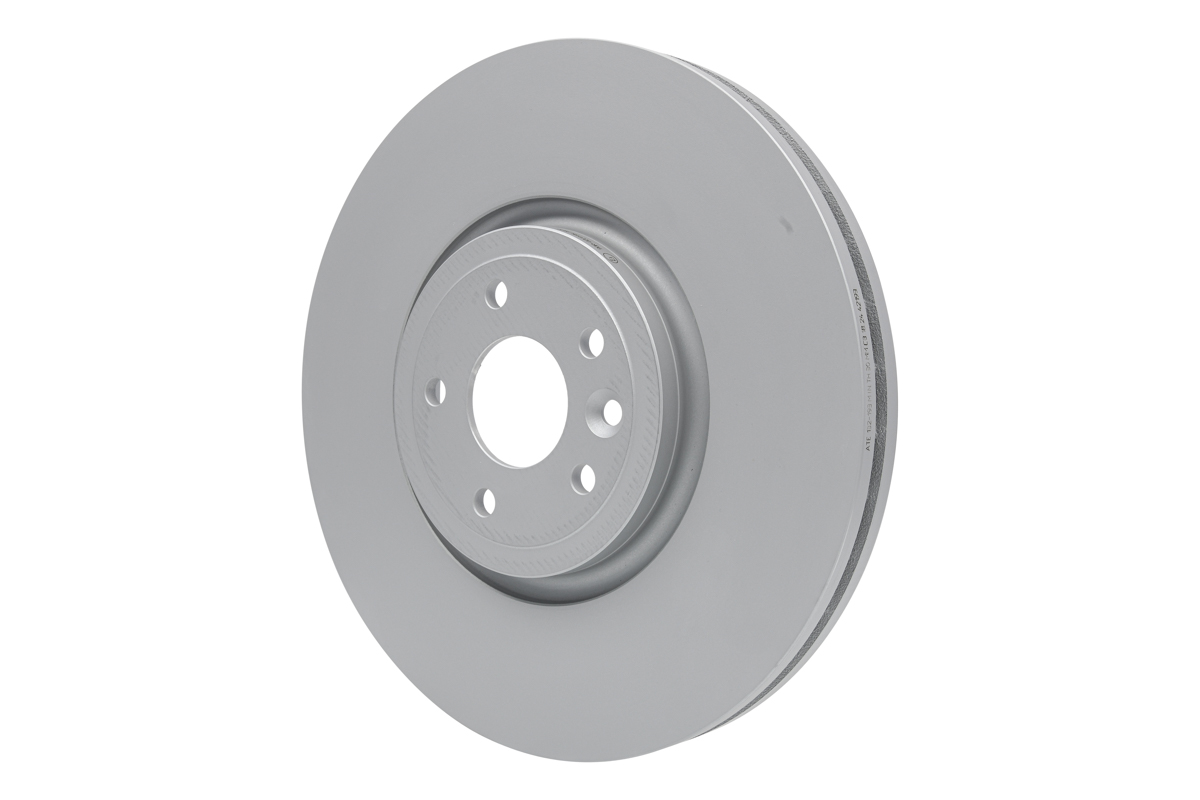

ATE 24.0132-0193.1 Brake Disc for JAGUAR

Reference 24.0132-0193.1

Brand ATE

JAGUAR ➤ XE | XF II | XF SPORTBRAKE

€112.04

€100.84 Save 10%

Tax included

Quantity

Available in warehouses

W01: 4 qty

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Product Details

Reference 24.0132-0193.1

EAN13 4006633469616

MPN 24.0132-0193.1

In stock 4 Items

Condition New

Data sheet

Test Mark: E1 90R-02C0115/1329
Height [mm]: 48,2
Bore Diameter [mm]: 13,7
Brake Disc Type: Vented
Brake Disc Thickness [mm]: 32,0
Minimum thickness [mm]: 30,0
Machining: High-carbon
Inner Diameter [mm]: 158,5
Outer Diameter [mm]: 350,0
Number of Holes: 5
Centering Diameter [mm]: 63,5
Bolt Hole Circle Ø [mm]: 108,0
Surface: Coated
MAPP code available

BENDIX - OLD: BDS1604HC
BOSCH: 0 986 479 G33
BRECO: BV9326
BREMBO: 09.D064.11
CAR: 1422002
DELPHI: BG9167C
FEBI BILSTEIN: 108677
HELLA: 8DD 355 132-471
HELLA PAGID: 8DD355132471
JAGUAR: T4N1803
MINTEX: MDC2906C
PILENGA: V1332
sbs: 1815311230
TEXTAR: 92308105
ZIMMERMANN: 290.2270.20
ZIMMERMANN: 290.2270.52
: 432193

JAGUAR

XE (X760) 2.0 (2015 - ) 1999 ccm, 147 kw, 200 hp [Brake Size :: 18", Fitting Position :: Front Axle]

XE (X760) 2.0 (2015 - ) 1999 ccm, 177 kw, 241 hp [Brake Size :: 18", Fitting Position :: Front Axle]

XE (X760) 2.0 (2017 - ) 1997 ccm, 184 kw, 250 hp [Brake Size :: 18", Fitting Position :: Front Axle]

XE (X760) 2.0 (2017 - ) 1997 ccm, 221 kw, 300 hp [Brake Size :: 18", Fitting Position :: Front Axle]

XE (X760) 2.0 (2017 - ) 1997 ccm, 147 kw, 200 hp [Brake Size :: 18", Fitting Position :: Front Axle]

XE (X760) 2.0 AWD (2017 - ) 1997 ccm, 184 kw, 250 hp [Brake Size :: 18", Fitting Position :: Front Axle]

XE (X760) 2.0 AWD (2017 - ) 1997 ccm, 221 kw, 300 hp [Brake Size :: 18", Fitting Position :: Front Axle]

XE (X760) 2.0 D (2015 - ) 1999 ccm, 120 kw, 163 hp [Brake Size :: 18", Fitting Position :: Front Axle]

XE (X760) 2.0 D (2015 - ) 1999 ccm, 132 kw, 180 hp [Brake Size :: 18", Fitting Position :: Front Axle]

XE (X760) 2.0 D AWD (2015 - ) 1999 ccm, 132 kw, 180 hp [Brake Size :: 18", Fitting Position :: Front Axle]

XE (X760) 2.0 D AWD (2017 - ) 1999 ccm, 177 kw, 241 hp [Brake Size :: 18", Fitting Position :: Front Axle]

XE (X760) 2.0 D200 MHEV (2020 - ) 1997 ccm, 150 kw, 204 hp [Brake Size :: 18", Fitting Position :: Front Axle]

XE (X760) 2.0 D200 MHEV AWD (2020 - ) 1997 ccm, 150 kw, 204 hp [Brake Size :: 18", Fitting Position :: Front Axle]

XE (X760) 3.0 S (2015 - ) 2995 ccm, 250 kw, 340 hp [Fitting Position :: Front Axle]

XE (X760) 3.0 S (2017 - ) 2995 ccm, 280 kw, 381 hp [Fitting Position :: Front Axle]

XE (X760) P250 (2022 - ) 1999 ccm, 184 kw, 250 hp [Brake Size :: 18", Fitting Position :: Front Axle]

XF II (X260) 2.0 (2017 - ) 1997 ccm, 184 kw, 250 hp [Brake Size :: 18", Fitting Position :: Front Axle]

XF II (X260) 2.0 (2017 - ) 1997 ccm, 221 kw, 300 hp [Brake Size :: 18", Fitting Position :: Front Axle]

XF II (X260) 2.0 AWD (2017 - ) 1997 ccm, 184 kw, 250 hp [Brake Size :: 18", Fitting Position :: Front Axle]

XF II (X260) 2.0 AWD (2017 - ) 1997 ccm, 221 kw, 300 hp [Brake Size :: 18", Fitting Position :: Front Axle]

XF II (X260) 2.0 D200 MHEV (2020 - ) 1997 ccm, 150 kw, 204 hp [Brake Size :: 18", Fitting Position :: Front Axle]

XF II (X260) 2.0 D200 MHEV AWD (2020 - ) 1997 ccm, 150 kw, 204 hp [Brake Size :: 18", Fitting Position :: Front Axle]

XF II (X260) 3.0 (2015 - ) 2995 ccm, 250 kw, 340 hp [Fitting Position :: Front Axle]

XF II (X260) 3.0 (2015 - ) 2995 ccm, 280 kw, 380 hp [Fitting Position :: Front Axle]

XF II (X260) 3.0 AWD (2015 - ) 2995 ccm, 250 kw, 340 hp [Fitting Position :: Front Axle]

XF II (X260) 3.0 AWD (2015 - ) 2995 ccm, 280 kw, 380 hp [Fitting Position :: Front Axle]

XF II (X260) 3.0 D (2015 - ) 2993 ccm, 221 kw, 300 hp [Brake Size :: 18", Fitting Position :: Front Axle]

XF SPORTBRAKE (X260) 2.0 (2017 - ) 1997 ccm, 184 kw, 250 hp [Brake Size :: 18", Fitting Position :: Front Axle]

XF SPORTBRAKE (X260) 2.0 AWD (2018 - ) 1997 ccm, 221 kw, 300 hp [Brake Size :: 18", Fitting Position :: Front Axle]

XF SPORTBRAKE (X260) 2.0 AWD (2020 - ) 1997 ccm, 184 kw, 250 hp [Brake Size :: 18", Fitting Position :: Front Axle]

XF SPORTBRAKE (X260) 2.0 D200 MHEV (2020 - ) 1997 ccm, 150 kw, 204 hp [Brake Size :: 18", Fitting Position :: Front Axle]

XF SPORTBRAKE (X260) 2.0 D200 MHEV AWD (2020 - ) 1997 ccm, 150 kw, 204 hp [Brake Size :: 18", Fitting Position :: Front Axle]

XF SPORTBRAKE (X260) 3.0 (2017 - ) 2995 ccm, 280 kw, 380 hp [Fitting Position :: Front Axle]

XF SPORTBRAKE (X260) 3.0 AWD (2017 - ) 2995 ccm, 280 kw, 380 hp [Fitting Position :: Front Axle]

XF SPORTBRAKE (X260) 3.0 D (2017 - ) 2993 ccm, 221 kw, 300 hp [Brake Size :: 18", Fitting Position :: Front Axle]

Reviews

No customer reviews for the moment.

8 other products in the same category:

-10% -10%

Quick view

Reference: 09.D064.11

Brand: BREMBO

BREMBO 09.D064.11 PRIME LINE - UV Coated Brake Disc for JAGUAR

Brake Disc Thickness [mm] : 32, Brake Disc Type : internally vented, Centering Diameter [mm] : 64, Height [mm] : 48, Machining : High-carbon, Minimum thickness [mm] : 30, Number of Holes : 5, Outer Diameter [mm] : 350, Surface : Coated

Review(s): 0

€145.28 €161.42

Last items in stock

-10% -10%

Quick view

Reference: 290.2270.54

Brand: ZIMMERMANN

ZIMMERMANN 290.2270.54 BLACK Z Brake Disc for JAGUAR JAGUAR (CHERY) LAND ROVER

Bolt Hole Circle Ø [mm] : 108, Brake Disc Thickness [mm] : 32, Brake Disc Type : internally vented, Brake Disc Type : slotted, Centering Diameter [mm] : 64, directional : , Height [mm] : 48, Hole Arrangement/Number : 6/5, Machining : High-carbon, Minimum thickness [mm] : 30, Outer Diameter [mm] : 350, paired article number : 290.2270.55, Rim Hole Number :...

Review(s): 0

€147.63 €164.03

Last items in stock

-10% -10%

Quick view

Reference: 0 986 479 G33

Brand: BOSCH

BOSCH 0 986 479 G33 Brake Disc for JAGUAR JAGUAR (CHERY) LAND ROVER

Bolt Hole Circle Ø [mm] : 108, Bore Diameter up to [mm] : 15,8, Brake Disc Thickness [mm] : 32, Brake Disc Type : Vented, Centering Diameter [mm] : 63,5, fulfils ECE norm : ECE-R90, Height [mm] : 48,2, Machining : High-carbon, Minimum thickness [mm] : 30, Number of Holes : 5, Outer Diameter [mm] : 350, Surface : Coated

Review(s): 0

€112.91 €125.46

In stock

-10% -10%

Quick view

Reference: 290.2270.52

Brand: ZIMMERMANN

ZIMMERMANN 290.2270.52 SPORT BRAKE DISC Z Brake Disc for JAGUAR JAGUAR (CHERY) LAND ROVER

Bolt Hole Circle Ø [mm] : 108, Brake Disc Thickness [mm] : 32, Brake Disc Type : internally vented, Brake Disc Type : Perforated, Centering Diameter [mm] : 64, Height [mm] : 48, Hole Arrangement/Number : 6/5, Machining : High-carbon, Minimum thickness [mm] : 30, Outer Diameter [mm] : 350, Rim Hole Number : 5, Surface : Coated, Test Mark : ECE R90...

Review(s): 0

€123.08 €136.76

In stock

-10% -10%

Quick view

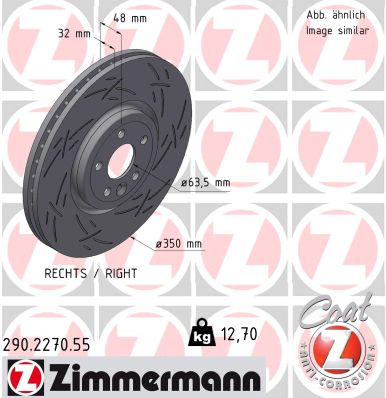

Reference: 290.2270.55
