ATE 24.0128-0286.1 Brake Disc for FORD

Reference 24.0128-0286.1

Brand ATE

FORD ➤ MONDEO V Hatchback | MONDEO V Saloon | MONDEO V Turnier

€80.48

€72.43 Save 10%

Tax included

Quantity

Available in warehouses

W01: 4 qty

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Product Details

Reference 24.0128-0286.1

EAN13 4006633420259

MPN 24.0128-0286.1

In stock 4 Items

Condition New

Data sheet

Number of Holes: 5
Centering Diameter [mm]: 63,5
Bolt Hole Circle Ø [mm]: 108,0
Surface: Coated
MAPP code available
Test Mark: E1 90R-02C0115/0650
Height [mm]: 50,9
Bore Diameter [mm]: 13,8
Brake Disc Type: Vented
Brake Disc Thickness [mm]: 28,0
Minimum thickness [mm]: 26,5
Machining: Alloyed/High-carbon
Inner Diameter [mm]: 139,7
Outer Diameter [mm]: 300,0

AP: 25648V
BENDIX - OLD: BDS1680
BOSCH: 0 986 479 D85
BRECO: BV9258
BREMBO: 09.N255.21
CAR: 1421860
CIFAM: 8001790C
DELPHI: BG4702C
FEBI BILSTEIN: 104953
FERODO: DDF2337C
FORD: 2017128
FORD: 2037502
FORD: 5202199
FORD: 5322975
FORD: DG9C1125AC
FORD: DG9C1125AD
FORD: DG9C1125AE
FORD: DG9C1125AF
HELLA: 8DD 355 123-161
HELLA PAGID: 8DD355123161
JURID: 563154JC
METELLI: 23-1790C
MINTEX: MDC2662
NK: 312599
PILENGA: V1502
QUINTON HAZELL: BDC6065
REMSA: 6160510
ROADHOUSE: 6160510
sbs: 1815312599
TEXTAR: 92268603
TRW: DF6811
ZIMMERMANN: 250.1375.20
ZIMMERMANN: 250.1375.52
: 428286

FORD

MONDEO V Hatchback (CE) 1.0 EcoBoost (2015 - ) 998 ccm, 92 kw, 125 hp [Fitting Position :: Front Axle]

MONDEO V Hatchback (CE) 1.5 EcoBoost (2014 - ) 1499 ccm, 118 kw, 160 hp [Construction Year from :: 201410, Fitting Position :: Front Axle]

MONDEO V Hatchback (CE) 1.5 EcoBoost (2018 - ) 1499 ccm, 121 kw, 165 hp [Fitting Position :: Front Axle]

MONDEO V Hatchback (CE) 1.5 TDCi (2015 - ) 1499 ccm, 88 kw, 120 hp [Fitting Position :: Front Axle]

MONDEO V Hatchback (CE) 1.6 TDCi (2014 - ) 1560 ccm, 85 kw, 115 hp [Construction Year from :: 201410, Fitting Position :: Front Axle]

MONDEO V Hatchback (CE) 2.0 EcoBlue (2019 - ) 1995 ccm, 88 kw, 120 hp [Fitting Position :: Front Axle]

MONDEO V Hatchback (CE) 2.0 EcoBlue (2019 - ) 1995 ccm, 110 kw, 150 hp [Fitting Position :: Front Axle]

MONDEO V Hatchback (CE) 2.0 EcoBlue (2019 - ) 1995 ccm, 140 kw, 190 hp [Fitting Position :: Front Axle]

MONDEO V Hatchback (CE) 2.0 EcoBlue 4x4 (2019 - ) 1995 ccm, 140 kw, 190 hp [Fitting Position :: Front Axle]

MONDEO V Hatchback (CE) 2.0 EcoBoost (2014 - ) 1999 ccm, 149 kw, 203 hp [Construction Year from :: 201410, Fitting Position :: Front Axle]

MONDEO V Hatchback (CE) 2.0 EcoBoost (2014 - ) 1999 ccm, 176 kw, 240 hp [Construction Year from :: 201410, Fitting Position :: Front Axle]

MONDEO V Hatchback (CE) 2.0 TDCi (2014 - ) 1998 ccm, 110 kw, 150 hp [Construction Year from :: 201410, Fitting Position :: Front Axle]

MONDEO V Hatchback (CE) 2.0 TDCi (2014 - ) 1998 ccm, 132 kw, 180 hp [Construction Year from :: 201410, Fitting Position :: Front Axle]

MONDEO V Hatchback (CE) 2.0 TDCi 4x4 (2015 - ) 1998 ccm, 110 kw, 150 hp [Fitting Position :: Front Axle]

MONDEO V Hatchback (CE) 2.0 TDCi 4x4 (2015 - ) 1998 ccm, 132 kw, 180 hp [Fitting Position :: Front Axle]

MONDEO V Hatchback (CE) 2.0 TDCi Bi-Turbo (2015 - ) 1998 ccm, 154 kw, 210 hp [Fitting Position :: Front Axle]

MONDEO V Saloon (CD) 1.0 EcoBoost (2015 - ) 998 ccm, 92 kw, 125 hp [Fitting Position :: Front Axle]

MONDEO V Saloon (CD) 1.5 EcoBoost (2014 - ) 1499 ccm, 118 kw, 160 hp [Construction Year from :: 201410, Fitting Position :: Front Axle]

MONDEO V Saloon (CD) 1.5 EcoBoost (2019 - ) 1499 ccm, 121 kw, 165 hp [Fitting Position :: Front Axle]

MONDEO V Saloon (CD) 1.5 TDCi (2015 - ) 1499 ccm, 88 kw, 120 hp [Fitting Position :: Front Axle]

MONDEO V Saloon (CD) 2.0 EcoBlue (2019 - ) 1995 ccm, 88 kw, 120 hp [Fitting Position :: Front Axle]

MONDEO V Saloon (CD) 2.0 EcoBlue (2019 - ) 1995 ccm, 140 kw, 190 hp [Fitting Position :: Front Axle]

MONDEO V Saloon (CD) 2.0 EcoBlue (2019 - ) 1995 ccm, 110 kw, 150 hp [Fitting Position :: Front Axle]

MONDEO V Saloon (CD) 2.0 EcoBlue 4x4 (2019 - ) 1995 ccm, 140 kw, 190 hp [Fitting Position :: Front Axle]

MONDEO V Saloon (CD) 2.0 EcoBoost (2015 - ) 1999 ccm, 176 kw, 240 hp [Fitting Position :: Front Axle]

MONDEO V Saloon (CD) 2.0 EcoBoost (2015 - ) 1999 ccm, 149 kw, 203 hp [Fitting Position :: Front Axle]

MONDEO V Saloon (CD) 2.0 EcoBoost (2015 - ) 1999 ccm, 146 kw, 199 hp [Fitting Position :: Front Axle]

MONDEO V Saloon (CD) 2.0 EcoBoost (2012 - 2016) 1999 ccm, 179 kw, 243 hp [Fitting Position :: Front Axle]

MONDEO V Saloon (CD) 2.0 Hybrid (2014 - ) 1999 ccm, 130 kw, 177 hp [Construction Year from :: 201410, Fitting Position :: Front Axle]

MONDEO V Saloon (CD) 2.0 Hybrid (2014 - ) 1999 ccm, 140 kw, 190 hp [Construction Year from :: 201410, Fitting Position :: Front Axle]

MONDEO V Saloon (CD) 2.0 Hybrid (2014 - ) 1999 ccm, 140 kw, 190 hp [Fitting Position :: Front Axle]

MONDEO V Saloon (CD) 2.0 Hybrid (2019 - ) 1999 ccm, 138 kw, 188 hp [Fitting Position :: Front Axle]

MONDEO V Saloon (CD) 2.0 TDCi (2015 - ) 1998 ccm, 132 kw, 180 hp [Fitting Position :: Front Axle]

MONDEO V Saloon (CD) 2.0 TDCi (2014 - ) 1998 ccm, 110 kw, 150 hp [Construction Year from :: 201410, Fitting Position :: Front Axle]

MONDEO V Saloon (CD) 2.0 TDCi 4x4 (2015 - ) 1998 ccm, 132 kw, 180 hp [Fitting Position :: Front Axle]

MONDEO V Saloon (CD) 2.0 TDCi 4x4 (2014 - ) 1998 ccm, 110 kw, 150 hp [Construction Year from :: 201502, Fitting Position :: Front Axle]

MONDEO V Saloon (CD) 2.0 TDCi Bi-Turbo (2015 - ) 1998 ccm, 154 kw, 210 hp [Fitting Position :: Front Axle]

MONDEO V Saloon (CD) 2.5 (2015 - ) 2489 ccm, 110 kw, 149 hp [Fitting Position :: Front Axle]

MONDEO V Turnier (CF) 1.0 EcoBoost (2015 - ) 998 ccm, 92 kw, 125 hp [Fitting Position :: Front Axle]

MONDEO V Turnier (CF) 1.5 EcoBoost (2014 - ) 1499 ccm, 118 kw, 160 hp [Construction Year from :: 201410, Fitting Position :: Front Axle]

MONDEO V Turnier (CF) 1.5 EcoBoost (2018 - ) 1499 ccm, 121 kw, 165 hp [Fitting Position :: Front Axle]

MONDEO V Turnier (CF) 1.5 TDCi (2015 - ) 1499 ccm, 88 kw, 120 hp [Fitting Position :: Front Axle]

MONDEO V Turnier (CF) 1.6 TDCi (2014 - ) 1560 ccm, 85 kw, 115 hp [Construction Year from :: 201410, Fitting Position :: Front Axle]

MONDEO V Turnier (CF) 2.0 EcoBlue (2019 - ) 1995 ccm, 88 kw, 120 hp [Fitting Position :: Front Axle]

MONDEO V Turnier (CF) 2.0 EcoBlue (2019 - ) 1995 ccm, 110 kw, 150 hp [Fitting Position :: Front Axle]

MONDEO V Turnier (CF) 2.0 EcoBlue (2019 - ) 1995 ccm, 140 kw, 190 hp [Fitting Position :: Front Axle]

MONDEO V Turnier (CF) 2.0 EcoBlue 4x4 (2019 - ) 1995 ccm, 140 kw, 190 hp [Fitting Position :: Front Axle]

MONDEO V Turnier (CF) 2.0 EcoBoost (2014 - ) 1999 ccm, 149 kw, 203 hp [Construction Year from :: 201410, Fitting Position :: Front Axle]

MONDEO V Turnier (CF) 2.0 EcoBoost (2014 - ) 1999 ccm, 176 kw, 240 hp [Construction Year from :: 201410, Fitting Position :: Front Axle]

MONDEO V Turnier (CF) 2.0 Hybrid iVCT (2019 - ) 1999 ccm, 138 kw, 188 hp [Fitting Position :: Front Axle]

MONDEO V Turnier (CF) 2.0 TDCi (2014 - ) 1998 ccm, 110 kw, 150 hp [Construction Year from :: 201410, Fitting Position :: Front Axle]

MONDEO V Turnier (CF) 2.0 TDCi (2014 - ) 1998 ccm, 132 kw, 180 hp [Construction Year from :: 201410, Fitting Position :: Front Axle]

MONDEO V Turnier (CF) 2.0 TDCi 4x4 (2015 - ) 1998 ccm, 110 kw, 150 hp [Fitting Position :: Front Axle]

MONDEO V Turnier (CF) 2.0 TDCi 4x4 (2015 - ) 1998 ccm, 132 kw, 180 hp [Fitting Position :: Front Axle]

MONDEO V Turnier (CF) 2.0 TDCi Bi-Turbo (2015 - ) 1998 ccm, 154 kw, 210 hp [Fitting Position :: Front Axle]

Reviews

No customer reviews for the moment.

10 other products in the same category:

-10% -10%

Quick view

Reference: BG4702C

Brand: DELPHI

DELPHI BG4702C Brake Disc for FORD

Brake Disc Thickness [mm] : 28, Brake Disc Type : Vented, Centering Diameter [mm] : 63,5, Height [mm] : 51,1, Minimum thickness [mm] : 26,5, Number of Holes : 5, Outer Diameter [mm] : 300, Surface : Coated, Test Mark : E4 90R-02C0703/2624

Review(s): 0

€41.96 €46.62

In stock

-10% -10%

Quick view

Reference: 23-1790C

Brand: METELLI

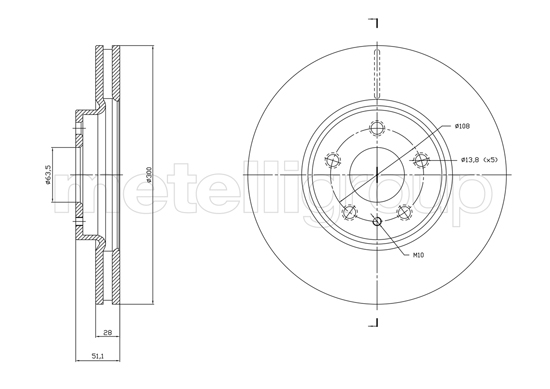

METELLI 23-1790C Brake Disc for FORD

Bolt Hole Circle Ø [mm] : 63,5, Brake Disc Thickness [mm] : 28,0, Brake Disc Type : Vented, Centering Diameter [mm] : 63,5, Height [mm] : 51,1, Number of Holes : 5, Outer Diameter [mm] : 300,0, Surface : Painted, Test Mark : ECE-R90

Review(s): 0

€38.24 €42.49

In stock

-10% -10%

Quick view

Reference: 250.1375.20

Brand: ZIMMERMANN

ZIMMERMANN 250.1375.20 COAT Z Brake Disc for FORD FORD (CHANGAN)

Bolt Hole Circle Ø [mm] : 108, Brake Disc Thickness [mm] : 28, Brake Disc Type : internally vented, Centering Diameter [mm] : 64, Height [mm] : 51, Hole Arrangement/Number : 5/5, Minimum thickness [mm] : 26,5, Outer Diameter [mm] : 300, Rim Hole Number : 5, Surface : Coated, Test Mark : ECE R90 Approved, Weight [kg] : 8,80

Review(s): 0

€63.97 €71.08

In stock

-10% -10%

Quick view

Reference: DF6811

Brand: TRW

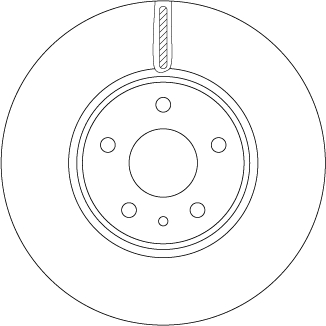

TRW DF6811 Brake Disc for FORD
