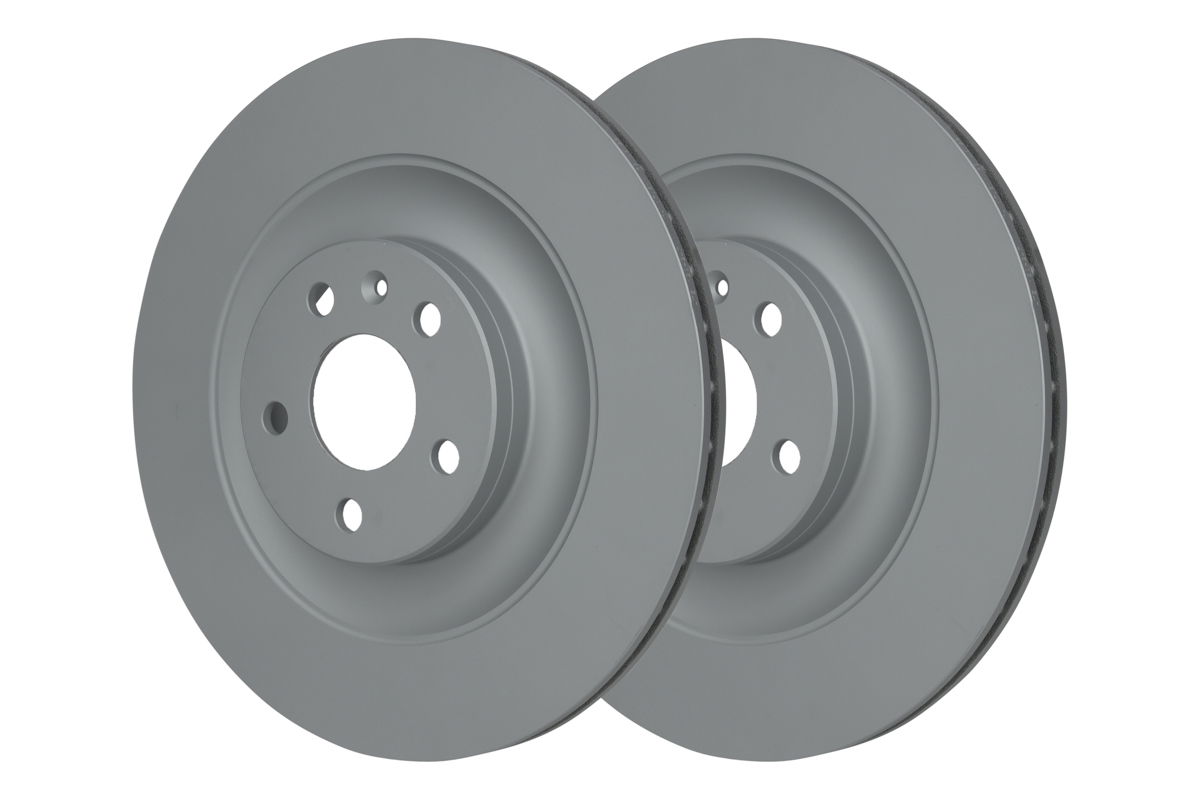

ATE 24.0120-0247.1 Brake Disc for VOLVO

24.0120-0247.1
VOLVO ➤ C40 | EC40 | EX40 | XC40 | XC90 II
€62.27
€56.04 Save 10%
Tax included
Quantity

Available in warehouses
W01
12 qty
  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Product Details
24.0120-0247.1
4006633434805
24.0120-0247.1
12 Items
New

Data sheet

Number of Holes
5
Centering Diameter [mm]
63,5
Bolt Hole Circle Ø [mm]
108,0
Surface
Coated
Supplementary Article/Info 2
with bolts/screws
MAPP code available
Test Mark
E1 90R-02C0115/1325
Height [mm]
43,0
Bore Diameter [mm]
15,8
Brake Disc Type
Vented
Brake Disc Thickness [mm]
20,0
Minimum thickness [mm]
17,5
Inner Diameter [mm]
141,0
Outer Diameter [mm]
340,0
AP
25622V
BENDIX - OLD
BDS1594
BOSCH
0 986 479 D97
BRECO
BV9232
BREMBO
09.C939.11
CAR
1422099
DELPHI
BG4948C
FEBI BILSTEIN
174754
FERODO
DDF2844C
HELLA
8DD 355 132-071
HELLA PAGID
8DD355132071
MINTEX
MDC2871C
NK
314873
sbs
1815314873
TEXTAR
92304503
VOLVO
31400779
VOLVO
31687441
ZIMMERMANN
610.3730.20
420247

C40 (539) Recharge (2022 - 2022) ccm, 170 kw, 231 hp [Brake Size :: 18", Fitting Position :: Rear Axle]

C40 (539) Recharge (2023 - ) ccm, 175 kw, 238 hp [Brake Size :: 18", Fitting Position :: Rear Axle]

C40 (539) Recharge (2023 - ) ccm, 185 kw, 252 hp [Brake Size :: 18", Fitting Position :: Rear Axle]

C40 (539) Recharge AWD (2021 - ) ccm, 300 kw, 408 hp [Brake Size :: 18", Fitting Position :: Rear Axle]

C40 (539) Recharge AWD (2022 - ) ccm, 300 kw, 408 hp [Brake Size :: 18", Fitting Position :: Rear Axle]

EC40 (539) EV (2024 - ) ccm, 175 kw, 238 hp [Brake Size :: 18", Fitting Position :: Rear Axle]

EC40 (539) EV (2024 - ) ccm, 185 kw, 252 hp [Brake Size :: 18", Fitting Position :: Rear Axle]

EC40 (539) EV AWD (2024 - ) ccm, 325 kw, 442 hp [Brake Size :: 18", Fitting Position :: Rear Axle]

EC40 (539) EV AWD (2024 - ) ccm, 300 kw, 408 hp [Brake Size :: 18", Fitting Position :: Rear Axle]

EX40 (536) EV (2024 - ) ccm, 175 kw, 238 hp [Brake Size :: 18", Fitting Position :: Rear Axle]

EX40 (536) EV (2024 - ) ccm, 185 kw, 252 hp [Brake Size :: 18", Fitting Position :: Rear Axle]

EX40 (536) EV AWD (2024 - ) ccm, 325 kw, 442 hp [Brake Size :: 18", Fitting Position :: Rear Axle]

EX40 (536) EV AWD (2024 - ) ccm, 300 kw, 408 hp [Brake Size :: 18", Fitting Position :: Rear Axle]

XC40 (536) Recharge (2022 - 2022) ccm, 170 kw, 231 hp [Brake Size :: 18", Fitting Position :: Rear Axle]

XC40 (536) Recharge (2023 - ) ccm, 175 kw, 238 hp [Brake Size :: 18", Fitting Position :: Rear Axle]

XC40 (536) Recharge (2023 - ) ccm, 185 kw, 252 hp [Brake Size :: 18", Fitting Position :: Rear Axle]

XC40 (536) Recharge AWD (2020 - ) ccm, 300 kw, 408 hp [Brake Size :: 18", Fitting Position :: Rear Axle]

XC40 (536) Recharge AWD (2020 - ) ccm, 300 kw, 408 hp [Brake Size :: 18", Fitting Position :: Rear Axle]

XC90 II (256) B5 Mild-Hybrid (2022 - ) 1969 ccm, 183 kw, 249 hp [Brake Size :: 18", Fitting Position :: Rear Axle]

XC90 II (256) B5 Mild-Hybrid (2022 - ) 1969 ccm, 184 kw, 250 hp [Brake Size :: 18", Fitting Position :: Rear Axle]

XC90 II (256) B5 Mild-Hybrid AWD (2019 - ) 1969 ccm, 173 kw, 235 hp [Brake Size :: 18", Fitting Position :: Rear Axle]

XC90 II (256) B5 Mild-Hybrid AWD (2020 - ) 1969 ccm, 184 kw, 250 hp [Brake Size :: 18", Fitting Position :: Rear Axle]

XC90 II (256) B5 Mild-Hybrid AWD (2022 - ) 1969 ccm, 183 kw, 249 hp [Brake Size :: 18", Fitting Position :: Rear Axle]

XC90 II (256) B5 Mild-Hybrid Polestar AWD (2021 - ) 1969 ccm, 180 kw, 245 hp [Brake Size :: 18", Fitting Position :: Rear Axle]

XC90 II (256) B6 Mild-Hybrid AWD (2020 - ) 1969 ccm, 220 kw, 299 hp [Brake Size :: 18", Fitting Position :: Rear Axle]

XC90 II (256) D4 (2015 - 2018) 1969 ccm, 140 kw, 190 hp [Brake Size :: 18", Fitting Position :: Rear Axle]

XC90 II (256) D4 AWD (2015 - 2018) 1969 ccm, 140 kw, 190 hp [Brake Size :: 18", Fitting Position :: Rear Axle]

XC90 II (256) D5 AWD (2014 - 2016) 1969 ccm, 165 kw, 224 hp [Brake Size :: 18", Fitting Position :: Rear Axle]

XC90 II (256) D5 AWD (2016 - 2019) 1969 ccm, 173 kw, 235 hp [Brake Size :: 18", Fitting Position :: Rear Axle]

XC90 II (256) D5 DRIVe Polestar AWD (2016 - 2021) 1969 ccm, 176 kw, 239 hp [Brake Size :: 18", Fitting Position :: Rear Axle]

XC90 II (256) D5 Polestar AWD (2018 - 2021) 1969 ccm, 177 kw, 240 hp [Brake Size :: 18", Fitting Position :: Rear Axle]

XC90 II (256) T5 AWD (2015 - 2021) 1969 ccm, 187 kw, 254 hp [Brake Size :: 18", Fitting Position :: Rear Axle]

XC90 II (256) T5 AWD (2016 - 2018) 1969 ccm, 183 kw, 249 hp [Brake Size :: 18", Fitting Position :: Rear Axle]

XC90 II (256) T5 AWD (2017 - 2020) 1969 ccm, 184 kw, 250 hp [Brake Size :: 18", Fitting Position :: Rear Axle]

XC90 II (256) T5 Drive-E Polestar AWD (2017 - 2020) 1969 ccm, 176 kw, 239 hp [Brake Size :: 18", Fitting Position :: Rear Axle]

XC90 II (256) T5 Drive-E Polestar AWD (2017 - 2021) 1969 ccm, 192 kw, 261 hp [Brake Size :: 18", Fitting Position :: Rear Axle]

XC90 II (256) T5 Polestar AWD (2019 - 2020) 1969 ccm, 186 kw, 253 hp [Brake Size :: 18", Fitting Position :: Rear Axle]

XC90 II (256) T6 AWD (2014 - 2018) 1969 ccm, 235 kw, 320 hp [Brake Size :: 18", Fitting Position :: Rear Axle]

XC90 II (256) T6 AWD (2017 - 2021) 1969 ccm, 228 kw, 310 hp [Brake Size :: 18", Fitting Position :: Rear Axle]

XC90 II (256) T6 Polestar AWD (2017 - 2021) 1969 ccm, 246 kw, 334 hp [Brake Size :: 18", Fitting Position :: Rear Axle]

XC90 II (256) T6 Polestar AWD (2017 - 2021) 1969 ccm, 240 kw, 326 hp [Brake Size :: 18", Fitting Position :: Rear Axle]

XC90 II (256) T8 Hybrid AWD (2015 - 2018) 1969 ccm, 299 kw, 407 hp [Brake Size :: 18", Fitting Position :: Rear Axle]

XC90 II (256) T8 Hybrid AWD (2015 - 2022) 1969 ccm, 298 kw, 405 hp [Brake Size :: 18", Fitting Position :: Rear Axle]

XC90 II (256) T8 Hybrid Polestar AWD (2019 - 2022) 1969 ccm, 233 kw, 317 hp [Brake Size :: 18", Fitting Position :: Rear Axle]

XC90 II (256) T8 Hybrid Polestar AWD (2020 - 2022) 1969 ccm, 310 kw, 421 hp [Brake Size :: 18", Fitting Position :: Rear Axle]

XC90 II (256) T8 Plug-in Hybrid AWD (2022 - ) 1969 ccm, 335 kw, 455 hp [Brake Size :: 18", Fitting Position :: Rear Axle]

XC90 II (256) T8 Plug-in Hybrid Polestar AWD (2015 - 2022) 1969 ccm, 246 kw, 334 hp [Brake Size :: 18", Fitting Position :: Rear Axle]

XC90 II (256) T8 Twin Engine AWD (2018 - 2022) 1969 ccm, 287 kw, 390 hp [Brake Size :: 18", Fitting Position :: Rear Axle]
