ATE 24.0116-0126.1 Brake Disc for FORD

Reference 24.0116-0126.1

Brand ATE

FORD ➤ TRANSIT Bus | TRANSIT Platform/Chassis | TRANSIT Van

€51.29

€46.16 Save 10%

Tax included

Quantity

Last items in stock

Available in warehouses

W01: 2 qty

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Product Details

Reference 24.0116-0126.1

EAN13 4006633314671

MPN 24.0116-0126.1

In stock 2 Items

Condition New

Data sheet

Bolt Hole Circle Ø [mm]: 124,0
Surface: Coated
No. of holes 2: 10
MAPP code available
Test Mark: E1 90R-02C0165/0548
Height [mm]: 16,3
Bore Diameter [mm]: 10,7
Brake Disc Type: solid
Brake Disc Thickness [mm]: 16,0
Minimum thickness [mm]: 13,0
Inner Diameter [mm]: 144,5
Outer Diameter [mm]: 280,0
Number of Holes: 5
Centering Diameter [mm]: 107,5

AP: 14965
BARUM: BAR16126
BENDIX - OLD: 562537BC
BENDIX - OLD: BDS1408
BOSCH: 0 986 479 390
BRECO: BS7756
BREMBO: 08.A530.10
DELPHI: BG4075
FERODO: DDF1537
FERODO: DDF1537C
FORD: 1371420
FORD: 1464031
FORD: 2262937
GALFER: B1G21601261
GALFER: G2116126
HELLA: 8DD 355 113-291
HELLA PAGID: 8DD355113291
MINTEX: MDC1811
MINTEX: MDC1811C
NK: 202577
NK: 312577
PAGID: 54520
TEXTAR: 92152000
TEXTAR: 92152003
TEXTAR: 98200152001
TRW: DF6049
VALEO: 187152
VALEO: 297995
ZIMMERMANN: 250.1359.20
ZIMMERMANN: 250135900
: 416126

FORD

TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.2 TDCi RWD (2011 - 2014) 2198 ccm, 74 kw, 100 hp [Fitting Position :: Rear Axle]

TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.2 TDCi RWD (2011 - 2014) 2198 ccm, 92 kw, 125 hp [Fitting Position :: Rear Axle]

TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.2 TDCi RWD (2011 - 2014) 2198 ccm, 100 kw, 135 hp [Fitting Position :: Rear Axle]

TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.2 TDCi RWD (2011 - 2014) 2198 ccm, 114 kw, 155 hp [Fitting Position :: Rear Axle]

TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.4 TDCi (2006 - 2014) 2402 ccm, 85 kw, 115 hp [Fitting Position :: Rear Axle]

TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.4 TDCi (2006 - 2014) 2402 ccm, 103 kw, 140 hp [Construction Year from :: 200605, Construction Year to :: 201404, Fitting Position :: Rear Axle]

TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.4 TDCi (2006 - 2014) 2402 ccm, 74 kw, 100 hp [Fitting Position :: Rear Axle]

TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.4 TDCi 4x4 (2006 - 2014) 2402 ccm, 103 kw, 140 hp [Fitting Position :: Rear Axle]

TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 3.2 TDCi (2008 - 2014) 3199 ccm, 147 kw, 200 hp [Fitting Position :: Rear Axle]

TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) 2.2 TDCi 4x4 (2011 - 2014) 2198 ccm, 92 kw, 125 hp [Fitting Position :: Rear Axle]

TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) 2.2 TDCi RWD (2011 - 2014) 2198 ccm, 74 kw, 100 hp [Fitting Position :: Rear Axle]

TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) 2.2 TDCi RWD (2011 - 2014) 2198 ccm, 92 kw, 125 hp [Fitting Position :: Rear Axle]

TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) 2.2 TDCi RWD (2011 - 2014) 2198 ccm, 114 kw, 155 hp [Fitting Position :: Rear Axle]

TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) 2.3 16V CNG RWD (2006 - 2014) 2261 ccm, 100 kw, 136 hp [Fitting Position :: Rear Axle, Tyres :: for single tyres]

TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) 2.3 16V LPG RWD (2006 - 2014) 2261 ccm, 107 kw, 145 hp [Fitting Position :: Rear Axle, Tyres :: for single tyres]

TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) 2.3 16V RWD (2006 - 2014) 2261 ccm, 107 kw, 145 hp [Fitting Position :: Rear Axle, Tyres :: for single tyres]

TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) 2.4 TDCi 4x4 (2006 - 2014) 2402 ccm, 103 kw, 140 hp [Fitting Position :: Rear Axle]

TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) 2.4 TDCi RWD (2006 - 2014) 2402 ccm, 74 kw, 100 hp [Fitting Position :: Rear Axle]

TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) 2.4 TDCi RWD (2006 - 2014) 2402 ccm, 85 kw, 115 hp [Fitting Position :: Rear Axle]

TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) 2.4 TDCi RWD (2006 - 2014) 2402 ccm, 103 kw, 140 hp [Fitting Position :: Rear Axle, Tyres :: for dual tyres]

TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) 3.2 TDCi RWD (2007 - 2014) 3199 ccm, 147 kw, 200 hp [Fitting Position :: Rear Axle]

TRANSIT Van (FA_ _) 2.2 TDCi 4x4 (2011 - 2014) 2198 ccm, 92 kw, 125 hp [Fitting Position :: Rear Axle]

TRANSIT Van (FA_ _) 2.2 TDCi RWD (2011 - 2014) 2198 ccm, 74 kw, 100 hp [Fitting Position :: Rear Axle, Tyres :: for single tyres]

TRANSIT Van (FA_ _) 2.2 TDCi RWD (2011 - 2014) 2198 ccm, 92 kw, 125 hp [Fitting Position :: Rear Axle]

TRANSIT Van (FA_ _) 2.2 TDCi RWD (2011 - 2014) 2198 ccm, 114 kw, 155 hp [Fitting Position :: Rear Axle]

TRANSIT Van (FA_ _) 2.2 TDCi RWD (2011 - 2014) 2198 ccm, 100 kw, 136 hp [Fitting Position :: Rear Axle]

TRANSIT Van (FA_ _) 2.3 16V CNG RWD (2006 - 2014) 2261 ccm, 100 kw, 136 hp [Fitting Position :: Rear Axle, Tyres :: for single tyres]

TRANSIT Van (FA_ _) 2.3 16V LPG RWD (2006 - 2014) 2261 ccm, 107 kw, 145 hp [Fitting Position :: Rear Axle, Tyres :: for single tyres]

TRANSIT Van (FA_ _) 2.3 16V RWD (2006 - 2014) 2261 ccm, 107 kw, 145 hp [Fitting Position :: Rear Axle, Tyres :: for single tyres]

TRANSIT Van (FA_ _) 2.4 TDCi 4x4 (2006 - 2014) 2402 ccm, 103 kw, 140 hp [Fitting Position :: Rear Axle]

TRANSIT Van (FA_ _) 2.4 TDCi RWD (2006 - 2014) 2402 ccm, 85 kw, 115 hp [Fitting Position :: Rear Axle]

TRANSIT Van (FA_ _) 2.4 TDCi RWD (2006 - 2014) 2402 ccm, 103 kw, 140 hp [Fitting Position :: Rear Axle]

TRANSIT Van (FA_ _) 2.4 TDCi RWD (2006 - 2014) 2402 ccm, 74 kw, 100 hp [Fitting Position :: Rear Axle]

TRANSIT Van (FA_ _) 3.2 TDCi RWD (2007 - 2014) 3199 ccm, 147 kw, 200 hp [Fitting Position :: Rear Axle]

Reviews

No customer reviews for the moment.

10 other products in the same category:

-10% -10%

Quick view

Reference: 92152003

Brand: TEXTAR

TEXTAR 92152003 PRO Brake Disc for FORD FORD (JMC) FORD AUSTRALIA JMC

Bolt Hole Circle Ø [mm] : 124, Brake Disc Thickness [mm] : 16, Brake Disc Type : solid, Centering Diameter [mm] : 107,5, Height [mm] : 16,3, Hole Arrangement/Number : 05/10, Inner Diameter [mm] : 144,2, Minimum thickness [mm] : 13, Outer Diameter [mm] : 280, Packaging height [cm] : 6,5, Packaging length [cm] : 29,3, Packaging width [cm] : 29,3,...

Review(s): 0

€35.72 €39.69

In stock

-10% -10%

Quick view

Reference: 103202

Brand: KAMOKA

KAMOKA 103202 Brake Disc Rear Axle for FORD

Fitting Position : Rear Axle, Bolt Hole Circle Ø [mm] : 160, Brake Disc Thickness [mm] : 16, Brake Disc Type : solid, Centering Diameter [mm] : 96, Height [mm] : 69, Number of Holes : 5, Outer Diameter [mm] : 280, Surface : Coated

Review(s): 0

€31.24 €34.71

In stock

-10% -10%

Quick view

Reference: 250.1359.20

Brand: ZIMMERMANN

ZIMMERMANN 250.1359.20 COAT Z Brake Disc for FORD

Bolt Hole Circle Ø [mm] : 124, Brake Disc Thickness [mm] : 16, Brake Disc Type : solid, Centering Diameter [mm] : 108, Height [mm] : 16, Hole Arrangement/Number : 10/10, Minimum thickness [mm] : 15, Outer Diameter [mm] : 280, Registration Type : permitted for vehicles of Class M1/N1, Rim Hole Number : 10, Surface : Coated, Test Mark : ECE R90 Approved,...

Review(s): 0

€44.34 €49.26

Last items in stock

-10% -10%

Quick view

Reference: 40779

Brand: FEBI BILSTEIN

FEBI BILSTEIN 40779 Brake Disc Rear Axle for FORD

Fitting Position : Rear Axle, Bolt Hole Circle Ø [mm] : 124, Brake Disc Thickness [mm] : 16, Brake Disc Type : solid, Centering Diameter [mm] : 107,5, Minimum thickness [mm] : 13, Observe service information : , Outer Diameter [mm] : 280, Rim Hole Number : 10, Surface : Coated, Thickness [mm] : 16, Weight [kg] : 5,538

Review(s): 0

€23.04 €25.60

In stock

-10% -10%

Quick view

Reference: 08.A530.10

Brand: BREMBO

BREMBO 08.A530.10 PRIME LINE Brake Disc for FORD FORD (JMC)

Brake Disc Thickness [mm] : 16, Brake Disc Type : solid, Centering Diameter [mm] : 108, Height [mm] : 16, Minimum thickness [mm] : 13, Number of Holes : 5, Outer Diameter [mm] : 280, Tightening Torque [Nm] : 100

Review(s): 0

€29.29 €32.54

In stock

-10% -10%

Quick view

Reference: 23-0998C

Brand: METELLI

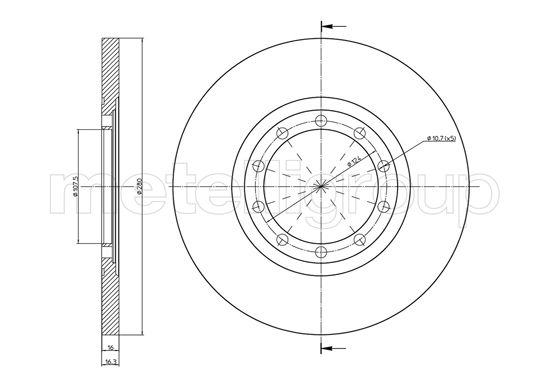

METELLI 23-0998C Brake Disc for FORD

Bolt Hole Circle Ø [mm] : 107,5, Brake Disc Thickness [mm] : 16,0, Brake Disc Type : solid, Centering Diameter [mm] : 107,5, Height [mm] : 16,3, Number of Holes : 5, Outer Diameter [mm] : 280,0, Surface : Painted, Test Mark : ECE-R90

Review(s): 0

€28.25 €31.39

In stock

-10% -10%

Quick view

Reference: ADF124317

Brand: BLUE PRINT

BLUE PRINT ADF124317 Brake Disc Rear Axle for FORD

Review(s): 0

€24.15 €26.83

In stock

-10% -10%

Quick view

Reference: BG4075

Brand: DELPHI

DELPHI BG4075 Brake Disc for FORD

Brake Disc Thickness [mm] : 16, Brake Disc Type : solid, Centering Diameter [mm] : 107,5, Height [mm] : 16, Minimum thickness [mm] : 15, Number of Holes : 10, Outer Diameter [mm] : 280, Surface : Oiled, Test Mark : E1 90R-02C0967/2518

Review(s): 0

€26.15 €29.05

Last items in stock

-10% -10%

Quick view

Reference: B130430

Brand: DENCKERMANN

DENCKERMANN B130430 Brake Disc for FORD

Bolt Hole Circle Ø [mm] : 124, Bore Diameter [mm] : 10,7, Brake Disc Thickness [mm] : 16, Brake Disc Type : solid, Centering Diameter [mm] : 107,5, Height [mm] : 16,3, Inner Diameter [mm] : 144,5, Minimum thickness [mm] : 13,0, No. of holes 2 : 10, Number of Holes : 5, Outer Diameter [mm] : 280

Review(s): 0

€17.67 €19.63

Last items in stock

-10% -10%

Quick view

Reference: 0 986 479 390

Brand: BOSCH

BOSCH 0 986 479 390 Brake Disc for FORD FORD AUSTRALIA

Bolt Hole Circle Ø [mm] : 124, Bore Diameter up to [mm] : 10,7, Brake Disc Thickness [mm] : 16, Brake Disc Type : solid, Centering Diameter [mm] : 107,5, fulfils ECE norm : ECE-R90, Height [mm] : 16,3, Minimum thickness [mm] : 13, Number of Holes : 10, Outer Diameter [mm] : 280, Surface : Oiled

Review(s): 0

€30.00 €33.34

In stock
