ATE 24.0110-0366.1 Brake Disc for SUBARU TOYOTA

Reference 24.0110-0366.1

Brand ATE

€39.66

€35.69 Save 10%

Tax included

Quantity

Available in warehouses

W01: 8 qty

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Product Details

Reference 24.0110-0366.1

EAN13 4006633385572

MPN 24.0110-0366.1

In stock 8 Items

Condition New

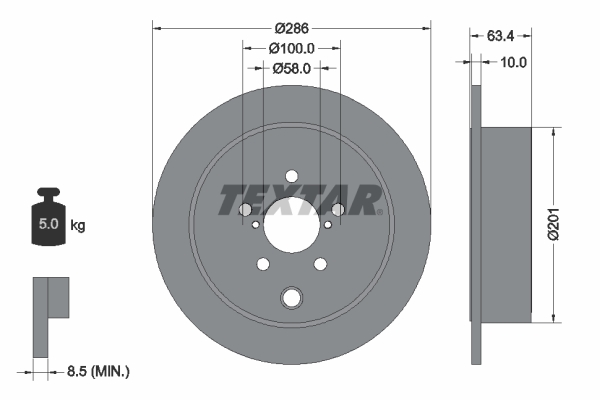

Data sheet

Surface: Coated
MAPP code available
Test Mark: E1 90R-02C0248/0976
Height [mm]: 63,5
Bore Diameter [mm]: 13,0
Brake Disc Type: solid
Brake Disc Thickness [mm]: 10,0
Minimum thickness [mm]: 8,5
Inner Diameter [mm]: 190,0
Outer Diameter [mm]: 286,0
Number of Holes: 5
Centering Diameter [mm]: 58,0
Bolt Hole Circle Ø [mm]: 100,0

AP: 15074
AP: 15074V
BENDIX - OLD: BDS1645
BOSCH: 0 986 479 A10
BRECO: BS6066
BRECO: BV6066
BREMBO: 08.C252.10
BREMBO: 08.C252.11
CIFAM: 8001337C
DELPHI: BG4158
FEBI BILSTEIN: 108410
FERODO: DDF1883C
FTE: BS7605B
GALFER: B1G21003661
GALFER: G2110366
HELLA: 8DD 355 116-421
HELLA PAGID: 8DD355116421
HERTH+BUSS JAKOPARTS: J3317007
METELLI: 23-1337C
MINTEX: MDC2209
NIPPARTS: 55000
NIPPARTS: N3317008
NK: 314418
PAGID: 55000
REMSA: 6141500
ROADHOUSE: 6141500
sbs: 1815314418
SUBARU: 26700FG000
TEXTAR: 92200000
TEXTAR: 98200200001
TOYOTA: SU00300639
TRW: DF6306
VALEO: 197570
ZIMMERMANN: 530.2465.20
: 410366

SUBARU

BRZ (ZC6) 2.0 (ZC6) (2012 - ) 1998 ccm, 147 kw, 200 hp [Fitting Position :: Rear Axle, Suspension :: for vehicles with lowered suspension]

FORESTER (SH_) 2.0 AWD (SH5) (2008 - 2013) 1994 ccm, 110 kw, 150 hp [Construction Year to :: 201302, Fitting Position :: Rear Axle]

FORESTER (SH_) 2.0 AWD (SHJ) (2010 - ) 1995 ccm, 110 kw, 150 hp [Construction Year to :: 201302, Fitting Position :: Rear Axle]

FORESTER (SH_) 2.0 BiFuel AWD (2009 - 2011) 1994 ccm, 110 kw, 150 hp [Fitting Position :: Rear Axle]

FORESTER (SH_) 2.0 D AWD (SHH, SHD, SHN) (2008 - 2013) 1998 ccm, 108 kw, 147 hp [Construction Year to :: 201302, Fitting Position :: Rear Axle]

FORESTER (SH_) 2.5 AWD (SH9) (2009 - 2013) 2457 ccm, 126 kw, 171 hp [Fitting Position :: Rear Axle]

FORESTER (SH_) 2.5 AWD (SH9) (2008 - 2013) 2457 ccm, 169 kw, 230 hp [Construction Year to :: 201302, Fitting Position :: Rear Axle]

FORESTER (SH_) 2.5 AWD (SHM) (2011 - 2013) 2498 ccm, 126 kw, 171 hp [Fitting Position :: Rear Axle]

FORESTER (SH_) 2.5 Turbo AWD (SH9) (2011 - 2013) 2457 ccm, 193 kw, 262 hp [Fitting Position :: Rear Axle]

IMPREZA Hatchback (GR, GH, G3) 1.5 AWD (2008 - 2011) 1498 ccm, 85 kw, 116 hp [Fitting Position :: Rear Axle]

IMPREZA Hatchback (GR, GH, G3) 1.5 AWD (GH3) (2008 - 2012) 1498 ccm, 79 kw, 107 hp [Fitting Position :: Rear Axle]

IMPREZA Hatchback (GR, GH, G3) 1.5 BiFuel AWD (2010 - 2012) 1498 ccm, 79 kw, 107 hp [Fitting Position :: Rear Axle]

IMPREZA Hatchback (GR, GH, G3) 1.5 F (GH2) (2007 - 2012) 1498 ccm, 79 kw, 107 hp [Fitting Position :: Rear Axle]

IMPREZA Hatchback (GR, GH, G3) 2.0 AWD (GH7) (2007 - 2009) 1994 ccm, 103 kw, 140 hp [Fitting Position :: Rear Axle]

IMPREZA Hatchback (GR, GH, G3) 2.0 D AWD (2011 - 2011) 1998 ccm, 80 kw, 109 hp [Fitting Position :: Rear Axle]

IMPREZA Hatchback (GR, GH, G3) 2.0 D AWD (2009 - 2012) 1998 ccm, 110 kw, 150 hp [Construction Year to :: 201112, Fitting Position :: Rear Axle]

IMPREZA Hatchback (GR, GH, G3) 2.0 R AWD (GH7) (2008 - 2012) 1994 ccm, 110 kw, 150 hp [Construction Year from :: 200802, Construction Year to :: 201112, Fitting Position :: Rear Axle]

IMPREZA Hatchback (GR, GH, G3) 2.0 R BiFuel AWD (2009 - 2012) 1994 ccm, 110 kw, 150 hp [Fitting Position :: Rear Axle]

IMPREZA Hatchback (GR, GH, G3) 2.5 AWD (2010 - 2013) 2457 ccm, 228 kw, 310 hp [Fitting Position :: Rear Axle]

IMPREZA Hatchback (GR, GH, G3) 2.5 AWD (GHE) (2008 - 2011) 2457 ccm, 169 kw, 230 hp [Construction Year from :: 200802, Fitting Position :: Rear Axle]

IMPREZA Hatchback (GR, GH, G3) 2.5 WRX SE AWD (GRE) (2010 - 2013) 2457 ccm, 195 kw, 265 hp [Fitting Position :: Rear Axle]

IMPREZA Hatchback (GR, GH, G3) 2.5 WRX STI 330S AWD (2009 - 2010) 2457 ccm, 243 kw, 330 hp [Fitting Position :: Rear Axle]

IMPREZA Hatchback (GR, GH, G3) 2.5 WRX STI AWD (2012 - 2013) 2457 ccm, 224 kw, 305 hp [Fitting Position :: Rear Axle]

IMPREZA Saloon (GE, GV) 1.5 (GE2) (2008 - ) 1498 ccm, 79 kw, 107 hp [Fitting Position :: Rear Axle]

IMPREZA Saloon (GE, GV) 1.5 AWD (GE3) (2008 - ) 1498 ccm, 79 kw, 107 hp [Fitting Position :: Rear Axle]

IMPREZA Saloon (GE, GV) 2.0 i AWD (GE7) (2011 - ) 1994 ccm, 110 kw, 150 hp [Construction Year to :: 201112, Fitting Position :: Rear Axle]

IMPREZA Saloon (GE, GV) 2.5 AWD (2008 - ) 2457 ccm, 169 kw, 230 hp [Construction Year to :: 201112, Fitting Position :: Rear Axle]

IMPREZA Saloon (GE, GV) 2.5 AWD (2007 - ) 2457 ccm, 199 kw, 270 hp [Fitting Position :: Rear Axle]

IMPREZA Saloon (GE, GV) 2.5 WRX SE AWD (GVE, GEE) (2009 - 2014) 2457 ccm, 195 kw, 265 hp [Fitting Position :: Rear Axle]

LEGACY V (BM) 2.0 D AWD (BMD) (2009 - 2014) 1998 ccm, 110 kw, 150 hp [Fitting Position :: Rear Axle]

LEGACY V (BM) 2.0 i AWD (2009 - 2015) 1994 ccm, 118 kw, 160 hp [Fitting Position :: Rear Axle]

LEGACY V (BM) 2.0 i AWD (BM5) (2009 - 2014) 1994 ccm, 110 kw, 150 hp [Fitting Position :: Rear Axle]

LEGACY V (BM) 2.0 i LPG AWD (2009 - 2011) 1994 ccm, 108 kw, 147 hp [Fitting Position :: Rear Axle]

LEGACY V (BM) 2.5 i AWD (BM9) (2009 - 2014) 2457 ccm, 123 kw, 167 hp [Fitting Position :: Rear Axle]

LEGACY V (BM) 2.5 i AWD (BM9) (2012 - 2014) 2457 ccm, 125 kw, 170 hp [Fitting Position :: Rear Axle]

LEGACY V (BM) 2.5 i AWD (BMM) (2012 - 2014) 2498 ccm, 127 kw, 173 hp [Fitting Position :: Rear Axle]

LEGACY V Estate (BR) 2.0 D AWD (2013 - 2014) 1998 ccm, 108 kw, 147 hp [Fitting Position :: Rear Axle]

LEGACY V Estate (BR) 2.0 D AWD (BRD) (2009 - 2014) 1998 ccm, 110 kw, 150 hp [Fitting Position :: Rear Axle]

LEGACY V Estate (BR) 2.0 i AWD (2009 - 2014) 1994 ccm, 110 kw, 150 hp [Fitting Position :: Rear Axle]

LEGACY V Estate (BR) 2.0 i AWD (2012 - 2014) 1995 ccm, 110 kw, 150 hp [Fitting Position :: Rear Axle]

LEGACY V Estate (BR) 2.0 i LPG AWD (2009 - 2011) 1994 ccm, 108 kw, 147 hp [Fitting Position :: Rear Axle]

LEGACY V Estate (BR) 2.5 CNG AWD (2013 - 2014) 2498 ccm, 127 kw, 173 hp [Fitting Position :: Rear Axle]

LEGACY V Estate (BR) 2.5 i AWD (BR9) (2009 - 2014) 2457 ccm, 123 kw, 167 hp [Fitting Position :: Rear Axle]

LEGACY V Estate (BR) 2.5 i AWD (BR9) (2009 - 2014) 2457 ccm, 125 kw, 170 hp [Fitting Position :: Rear Axle]

LEGACY V Estate (BR) 2.5 i AWD (BRM) (2012 - 2014) 2498 ccm, 127 kw, 173 hp [Fitting Position :: Rear Axle]

OUTBACK (BR) 2.0 D AWD (2013 - ) 1998 ccm, 108 kw, 147 hp [Fitting Position :: Rear Axle]

OUTBACK (BR) 2.0 D AWD (BRD) (2009 - ) 1998 ccm, 110 kw, 150 hp [Fitting Position :: Rear Axle]

OUTBACK (BR) 2.5 BiFuel AWD (2013 - 2014) 2498 ccm, 127 kw, 173 hp [Fitting Position :: Rear Axle]

OUTBACK (BR) 2.5 BiFuel AWD (2010 - 2014) 2457 ccm, 123 kw, 167 hp [Fitting Position :: Rear Axle, Rim Size [inch] :: 15.0]

OUTBACK (BR) 2.5 CNG AWD (2014 - 2014) 2498 ccm, 127 kw, 173 hp [Fitting Position :: Rear Axle]

OUTBACK (BR) 2.5 i AWD (2012 - ) 2457 ccm, 125 kw, 170 hp [Fitting Position :: Rear Axle]

OUTBACK (BR) 2.5 i AWD (2014 - ) 2498 ccm, 130 kw, 177 hp [Fitting Position :: Rear Axle]

OUTBACK (BR) 2.5 i AWD (2012 - 2014) 2457 ccm, 129 kw, 175 hp [Fitting Position :: Rear Axle]

OUTBACK (BR) 2.5 i AWD (BR9) (2009 - ) 2457 ccm, 123 kw, 167 hp [Fitting Position :: Rear Axle]

OUTBACK (BR) 2.5 i AWD (BRM) (2013 - ) 2498 ccm, 127 kw, 173 hp [Fitting Position :: Rear Axle]

OUTBACK (BR) 3.6 R AWD (BRF) (2009 - ) 3630 ccm, 191 kw, 260 hp [Fitting Position :: Rear Axle]

TOYOTA

GT 86 Coupe (ZN6_) 2.0 (ZN6) (2012 - ) 1998 ccm, 149 kw, 203 hp [Fitting Position :: Rear Axle, Vehicle configuration line / variant :: Base]

GT 86 Coupe (ZN6_) 2.0 (ZN6AC_, ZN6BC_, ZN6K) (2012 - ) 1998 ccm, 147 kw, 200 hp [Fitting Position :: Rear Axle, Vehicle configuration line / variant :: Base]
