ATE 24.0110-0335.1 Brake Disc for LEXUS TOYOTA

Reference 24.0110-0335.1

Brand ATE

LEXUS, TOYOTA ➤ CROWN | IS II | IS III | MARK X I | MARK X II

€44.84

€40.36 Save 10%

Tax included

Quantity

Available in warehouses

W01: 4 qty

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Product Details

Reference 24.0110-0335.1

EAN13 4006633319942

MPN 24.0110-0335.1

In stock 4 Items

Condition New

Data sheet

Test Mark: E1 90R-02C0248/0754
Height [mm]: 61,3
Bore Diameter [mm]: 14,5
Brake Disc Type: solid
Brake Disc Thickness [mm]: 10,0
Minimum thickness [mm]: 8,5
Inner Diameter [mm]: 190,0
Outer Diameter [mm]: 291,0
Number of Holes: 5
Centering Diameter [mm]: 62,0
Bolt Hole Circle Ø [mm]: 114,3
Surface: Coated
MAPP code available

AP: 14996
AP: 14996V
BOSCH: 0 986 479 657
BRECO: BS7788
BRECO: BV7788
BREMBO: 08.A635.10
BREMBO: 08.A635.11
CAR: 1421288
DELPHI: BG4178
FERODO: DDF1815
HELLA: 8DD 355 115-711
HELLA PAGID: 8DD355115711
LEXUS: 4243130280
LEXUS: 4243130300
LPR: T2016P
MINTEX: MDC1956
PAGID: 54798PRO
PILENGA: 5490
REMSA: 6107500
ROADHOUSE: 6107500
TEXTAR: 92179803
TRW: DF6052
TRW: DF7395
VALEO: 197526
: 410335

LEXUS

IS II (_E2_) 220d (ALE20) (2005 - 2012) 2231 ccm, 130 kw, 177 hp [Construction Year from :: 200510, Construction Year to :: 200606, Fitting Position :: Rear Axle]

IS II (_E2_) 250 (GSE20) (2005 - 2013) 2499 ccm, 153 kw, 208 hp [Construction Year from :: 200510, Construction Year to :: 200606, Fitting Position :: Rear Axle]

IS II (_E2_) 250 (GSE20) (2006 - 2013) 2499 ccm, 149 kw, 203 hp [Fitting Position :: Rear Axle]

IS II (_E2_) 250 AWD (GSE25_) (2005 - 2013) 2499 ccm, 153 kw, 208 hp [Construction Year to :: 200606, Fitting Position :: Rear Axle]

IS II (_E2_) 300 (GSE22_) (2006 - 2013) 2994 ccm, 170 kw, 231 hp [Fitting Position :: Rear Axle]

IS II (_E2_) 350 (GSE21) (2008 - 2013) 3456 ccm, 234 kw, 318 hp [Fitting Position :: Rear Axle]

IS II (_E2_) 350 (GSE21_, GSE21R) (2005 - 2013) 3456 ccm, 228 kw, 310 hp [Construction Year from :: 200510, Construction Year to :: 200606, Fitting Position :: Rear Axle]

IS II (_E2_) 350 AWD (GSE26) (2010 - 2013) 3456 ccm, 228 kw, 310 hp [Fitting Position :: Rear Axle]

IS III (_E3_) 250 (GSE30_, GSE30R) (2013 - 2015) 2499 ccm, 153 kw, 208 hp [Fitting Position :: Rear Axle]

IS III (_E3_) 250 AWD (GSE35_) (2013 - ) 2499 ccm, 153 kw, 208 hp [Fitting Position :: Rear Axle]

IS III (_E3_) 300h (AVE30_, AVE30R) (2013 - 2020) 2494 ccm, 164 kw, 223 hp [Fitting Position :: Rear Axle]

IS III (_E3_) 300h (AVE30_, AVE30R) (2013 - 2020) 2494 ccm, 162 kw, 220 hp [Fitting Position :: Rear Axle]

TOYOTA

CROWN (CRS_, JZS_, GRS18_, UZS_) 3.0 (GRS182) (2003 - 2008) 2994 ccm, 188 kw, 256 hp [Fitting Position :: Rear Axle]

CROWN (CRS_, JZS_, GRS18_, UZS_) 3.0 (GRS182) (2004 - 2008) 2994 ccm, 170 kw, 231 hp [Fitting Position :: Rear Axle]

CROWN (CRS_, JZS_, GRS18_, UZS_) 3.0 4WD (GRS183) (2003 - 2008) 2995 ccm, 188 kw, 256 hp [Fitting Position :: Rear Axle]

MARK X I (GRX12_) 2.5 VVTi (GRX120_, GRX120) (2004 - 2009) 2499 ccm, 158 kw, 215 hp [Fitting Position :: Rear Axle, not for rim size [inch] :: 18.0]

MARK X I (GRX12_) 3.0 VVTi (GRX121) (2004 - 2009) 2995 ccm, 188 kw, 256 hp [Fitting Position :: Rear Axle, not for rim size [inch] :: 18.0]

MARK X II (GRX13_) 2.5 (GRX130) (2009 - ) 2499 ccm, 149 kw, 203 hp [Fitting Position :: Rear Axle]

MARK X II (GRX13_) 2.5 4WD (GRX135) (2009 - ) 2499 ccm, 149 kw, 203 hp [Fitting Position :: Rear Axle]

Reviews

No customer reviews for the moment.

12 other products in the same category:

-10% -10%

Quick view

Reference: DF6052

Brand: TRW

TRW DF6052 Brake Disc for LEXUS TOYOTA

Bolt Hole Circle Ø [mm] : 114,3, Brake Disc Thickness [mm] : 10, Brake Disc Type : solid, Centering Diameter [mm] : 62, Colour : black, Drum diameter [mm] : 190, Height [mm] : 61,3, Minimum thickness [mm] : 8,5, Number of Holes : 5, Outer Diameter [mm] : 291, Surface : Painted, Test Mark : E1 90R-02 C0204/0559, Thread Size : 14,5

Review(s): 0

€29.35 €32.61

In stock

-10% -10%

Quick view

Reference: 92179803

Brand: TEXTAR

TEXTAR 92179803 PRO Brake Disc for LEXUS TOYOTA TOYOTA (FAW)

Bolt Hole Circle Ø [mm] : 114,3, Brake Disc Thickness [mm] : 10, Brake Disc Type : solid, Centering Diameter [mm] : 62, Height [mm] : 61,2, Hole Arrangement/Number : 05/08, Inner Diameter [mm] : 190, Minimum thickness [mm] : 8,5, Outer Diameter [mm] : 291, Packaging height [cm] : 14, Packaging length [cm] : 31,3, Packaging width [cm] : 31,3, Supplementary...

Review(s): 0

€39.65 €44.06

Last items in stock

-10% -10%

Quick view

Reference: BG4178

Brand: DELPHI

DELPHI BG4178 Brake Disc for LEXUS TOYOTA

Brake Disc Thickness [mm] : 10, Brake Disc Type : solid, Centering Diameter [mm] : 62, Height [mm] : 61,1, Minimum thickness [mm] : 8,5, Number of Holes : 5, Outer Diameter [mm] : 291, Surface : Oiled, Test Mark : E1 90R-02C0241/1553

Review(s): 0

€23.72 €26.36

In stock

-10% -10%

Quick view

Reference: BR-9530-C

Brand: KAVO PARTS

KAVO PARTS BR-9530-C Brake Disc for LEXUS

Bolt Hole Circle Ø [mm] : 114, Brake Disc Thickness [mm] : 10, Brake Disc Type : solid, Centering Diameter [mm] : 62,1, Height [mm] : 61, Number of Holes : 5, Outer Diameter [mm] : 290, Surface : Coated

Review(s): 0

€21.57 €23.97

In stock

-10% -10%

Quick view

Reference: 108562

Brand: FEBI BILSTEIN

FEBI BILSTEIN 108562 Brake Disc Rear Axle for LEXUS TOYOTA

Fitting Position : Rear Axle, Bolt Hole Circle Ø [mm] : 114,3, Brake Disc Thickness [mm] : 10, Brake Disc Type : solid, Centering Diameter [mm] : 62, Minimum thickness [mm] : 8,5, Number of mounting bores : 1, Observe service information : , Outer Diameter [mm] : 291, Rim Hole Number : 5, Surface : Coated, Thickness [mm] : 61,2,...

Review(s): 0

€25.96 €28.85

In stock

-10% -10%

Quick view

Reference: 103399

Brand: KAMOKA

KAMOKA 103399 Brake Disc Rear Axle for LEXUS

Fitting Position : Rear Axle, Brake Disc Thickness [mm] : 10, Brake Disc Type : solid, Centering Diameter [mm] : 62, Outer Diameter [mm] : 291

Review(s): 0

€22.29 €24.77

In stock

-10% -10%

Quick view

Reference: 08.A635.11

Brand: BREMBO

BREMBO 08.A635.11 PRIME LINE - UV Coated Brake Disc for LEXUS TOYOTA TOYOTA (FAW)

Brake Disc Thickness [mm] : 10, Brake Disc Type : solid, Centering Diameter [mm] : 62, Height [mm] : 61, Minimum thickness [mm] : 8,5, Number of Holes : 5, Outer Diameter [mm] : 291, Surface : Coated, Tightening Torque [Nm] : 103

Review(s): 0

€30.93 €34.37

In stock

-10% -10%

Quick view

Reference: B130546

Brand: DENCKERMANN

DENCKERMANN B130546 Brake Disc for LEXUS

Bolt Hole Circle Ø [mm] : 114,3, Bore Diameter [mm] : 14,5, Brake Disc Thickness [mm] : 10, Brake Disc Type : solid, Centering Diameter [mm] : 62, Height [mm] : 61,3, Inner Diameter [mm] : 190,0, Minimum thickness [mm] : 8,5, Number of Holes : 5, Outer Diameter [mm] : 291

Review(s): 0

€22.41 €24.90

In stock

-10% -10%

Quick view

Reference: BR-9483-C

Brand: KAVO PARTS

KAVO PARTS BR-9483-C Brake Disc for LEXUS TOYOTA

Bolt Hole Circle Ø [mm] : 114, Brake Disc Thickness [mm] : 10, Brake Disc Type : solid, Centering Diameter [mm] : 62, Height [mm] : 61, Number of Holes : 5, Outer Diameter [mm] : 291, Surface : Coated, Test Mark : R90

Review(s): 0

€24.36 €27.07

Last items in stock

-10% -10%

Quick view

Reference: 23-1545C

Brand: METELLI

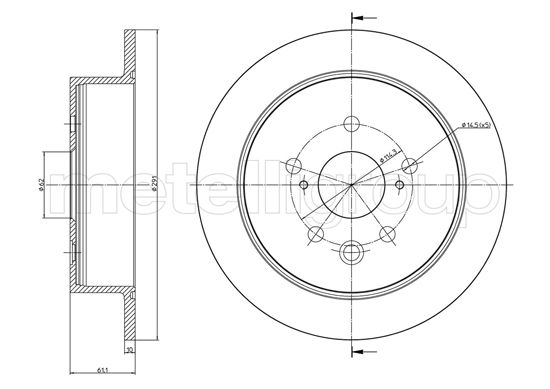

METELLI 23-1545C Brake Disc for LEXUS
