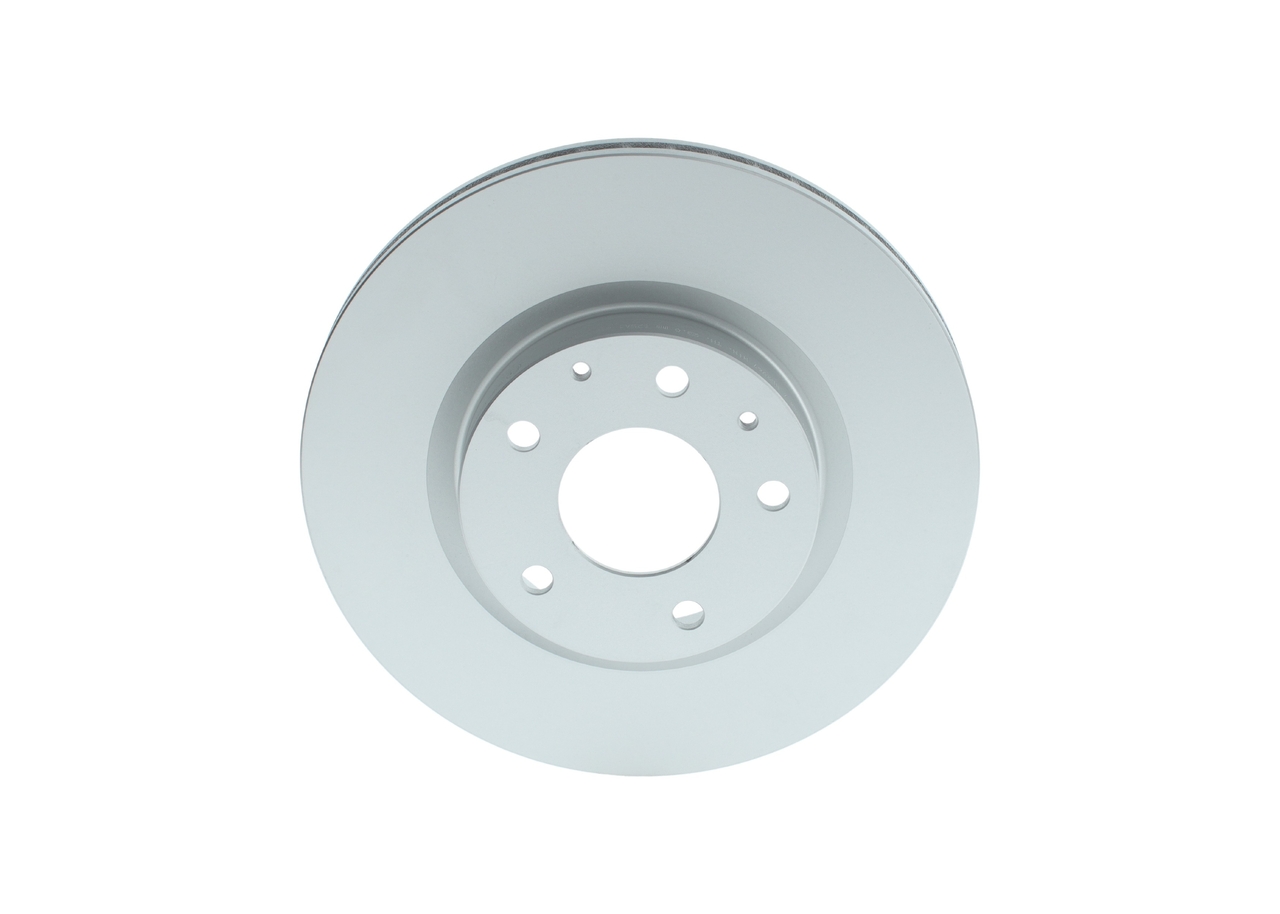

BOSCH 0 986 479 H23 Brake Disc for MAZDA

0 986 479 H23
MAZDA ➤ 3 Hatchback | 3 Saloon | CX-30
€55.43
€49.88 Save 10%
Tax included
Quantity

Available in warehouses
W01
10 qty
  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Product Details
0 986 479 H23
4047023067135
0 986 479 H23
10 Items
New

Data sheet

Height [mm]
46,5
Brake Disc Type
Vented
Brake Disc Thickness [mm]
25
Minimum thickness [mm]
23
Machining
High-carbon
Outer Diameter [mm]
295
Number of Holes
5
Centering Diameter [mm]
68
Bolt Hole Circle Ø [mm]
114,3
Surface
Coated
fulfils ECE norm
ECE-R90
Bore Diameter up to [mm]
13,3
APEC
DSK3615
ATE
24.0125-0233.1
BREMBO
09.E836.11
BREMBO
PAD1046
DELPHI
BG5055C
FERODO
DDF3035C
JURID
563678JC
JURID
563678JC1
MAZDA
BEET33251
MINTEX
BDS2184
MINTEX
MDC2996C
NK
313289
OPTIMAL GERMANY
BS1004HC
PAGID
56262
sbs
370440820
TEXTAR
92326203
TRW
DF6575
TRW
DF6575S
VALEO
673553
ZIMMERMANN
370.4408.20
BD2967
E190R02C03390736

3 Hatchback (BP) 1.5 SKYACTIV-G (BP5H, BP6H) (2019 - ) 1496 ccm, 88 kw, 120 hp [Construction Year to :: 202312, Fitting Position :: Front Axle]

3 Hatchback (BP) 1.8 SKYACTIV-D (2019 - ) 1759 ccm, 85 kw, 116 hp [Construction Year to :: 202112, Fitting Position :: Front Axle]

3 Hatchback (BP) 2.0 SKYACTIV-G (BP2H) (2018 - ) 1998 ccm, 114 kw, 155 hp [Construction Year from :: 201904, Construction Year to :: 202312, Fitting Position :: Front Axle, TecDoc Engine Number :: 36899]

3 Hatchback (BP) 2.0 SKYACTIV-G (BP2H) (2019 - ) 1998 ccm, 121 kw, 165 hp [Construction Year to :: 202312, Fitting Position :: Front Axle]

3 Hatchback (BP) 2.0 SKYACTIV-G (BP5H, BP6H) (2018 - ) 1998 ccm, 110 kw, 150 hp [Construction Year to :: 202312, Fitting Position :: Front Axle, TecDoc Engine Number :: 36899]

3 Hatchback (BP) 2.0 SKYACTIV-G M Hybrid (2018 - ) 1998 ccm, 90 kw, 122 hp [Block Separation :: , Construction Year from :: 202304, Construction Year to :: 202303, Fitting Position :: Front Axle, for model code :: BP, for model code :: BR]

3 Hatchback (BP) 2.0 SKYACTIV-G M Hybrid (2020 - ) 1998 ccm, 110 kw, 150 hp [Block Separation :: , Construction Year from :: 202304, Construction Year to :: 202303, Fitting Position :: Front Axle, for model code :: BP, for model code :: BR]

3 Hatchback (BP) 2.5 e-SKYACTIV-G (BP5H) (2024 - ) 2488 ccm, 103 kw, 140 hp [Engine Code :: PXY5, Fitting Position :: Front Axle]

3 Hatchback (BP) SKYACTIV-X M Hybrid (2021 - ) 1998 ccm, 137 kw, 186 hp [Fitting Position :: Front Axle]

3 Hatchback (BP) SKYACTIV-X M Hybrid (BP2H) (2019 - ) 1998 ccm, 132 kw, 179 hp [Construction Year to :: 202312, Fitting Position :: Front Axle]

3 Hatchback (BP) SKYACTIV-X M Hybrid AWD (2021 - ) 1998 ccm, 137 kw, 186 hp [Engine Code :: HFY9, Fitting Position :: Front Axle, TecDoc Engine Number :: 44248]

3 Hatchback (BP) SKYACTIV-X M Hybrid AWD (BP2H) (2019 - ) 1998 ccm, 132 kw, 179 hp [Construction Year to :: 202312, Fitting Position :: Front Axle]

3 Saloon (BP_) 1.5 SKYACTIV-G (2019 - ) 1496 ccm, 82 kw, 111 hp [Fitting Position :: Front Axle, TecDoc Engine Number :: 31273]

3 Saloon (BP_) 1.5 SKYACTIV-G (BP5S, BP6S) (2018 - ) 1496 ccm, 88 kw, 120 hp [Construction Year to :: 202312, Fitting Position :: Front Axle]

3 Saloon (BP_) 1.8 SKYACTIV-D (BP8P) (2019 - ) 1759 ccm, 85 kw, 116 hp [Construction Year to :: 202112, Fitting Position :: Front Axle]

3 Saloon (BP_) 2.0 AWD (BPEP, BPEK3R) (2019 - ) 1997 ccm, 140 kw, 190 hp [Fitting Position :: Front Axle]

3 Saloon (BP_) 2.0 SKYACTIV-G (BP2S) (2018 - ) 1998 ccm, 114 kw, 155 hp [Construction Year from :: 201904, Construction Year to :: 202312, Fitting Position :: Front Axle, TecDoc Engine Number :: 36899]

3 Saloon (BP_) 2.0 SKYACTIV-G (BP2S) (2019 - ) 1998 ccm, 121 kw, 165 hp [Construction Year to :: 202312, Fitting Position :: Front Axle]

3 Saloon (BP_) 2.0 SKYACTIV-G M Hybrid (2018 - ) 1998 ccm, 90 kw, 122 hp [Block Separation :: , Construction Year from :: 201901, Construction Year from :: 202304, Construction Year to :: 202303, Fitting Position :: Front Axle, for model code :: BP, for model code :: BR]

3 Saloon (BP_) 2.0 SKYACTIV-G M Hybrid (BP5S, BP6S) (2020 - ) 1998 ccm, 110 kw, 150 hp [Block Separation :: , Construction Year from :: 202304, Construction Year to :: 202303, Fitting Position :: Front Axle, for model code :: BP, for model code :: BR]

3 Saloon (BP_) 2.0 SKYACTIV-X M Hybrid (2021 - ) 1998 ccm, 137 kw, 186 hp [Engine Code :: HFY9, Fitting Position :: Front Axle, TecDoc Engine Number :: 44248]

3 Saloon (BP_) 2.0 SKYACTIV-X M Hybrid (BP2S) (2019 - ) 1998 ccm, 132 kw, 179 hp [Construction Year to :: 202312, Fitting Position :: Front Axle]

3 Saloon (BP_) 2.5 e-SKYACTIV-G (BP5S) (2024 - ) 2488 ccm, 103 kw, 140 hp [Engine Code :: PXY5, Fitting Position :: Front Axle]

CX-30 (DM) 1.8 SKYACTIV-D (2019 - ) 1759 ccm, 85 kw, 116 hp [Construction Year to :: 202112, Fitting Position :: Front Axle]

CX-30 (DM) 1.8 SKYACTIV-D AWD (2019 - ) 1759 ccm, 85 kw, 116 hp [Construction Year to :: 202112, Fitting Position :: Front Axle]

CX-30 (DM) 2.0 SKYACTIV-G (2019 - ) 1998 ccm, 121 kw, 165 hp [Fitting Position :: Front Axle, TecDoc Engine Number :: 36899]

CX-30 (DM) 2.0 SKYACTIV-G (DM2W7) (2019 - ) 1998 ccm, 114 kw, 155 hp [Construction Year from :: 202101, Construction Year to :: 202305, Fitting Position :: Front Axle, TecDoc Engine Number :: 31274, TecDoc Engine Number :: 36899]

CX-30 (DM) 2.5 e-SKYACTIV-G (DM5W) (2024 - ) 2488 ccm, 103 kw, 140 hp [Fitting Position :: Front Axle, TecDoc Engine Number :: 52986]

CX-30 (DM) 2.5 SKYACTIV-G (2019 - ) 2488 ccm, 143 kw, 194 hp [Fitting Position :: Front Axle]

CX-30 (DM) 2.5 SKYACTIV-G (DM2WL) (2019 - ) 2488 ccm, 139 kw, 189 hp [Fitting Position :: Front Axle, TecDoc Engine Number :: 31251, TecDoc Engine Number :: 35757]

CX-30 (DM) e-SKYACTIV-X M Hybrid (2021 - ) 1998 ccm, 137 kw, 186 hp [Construction Year to :: 202305, Fitting Position :: Front Axle]

CX-30 (DM) e-SKYACTIV-X M Hybrid AWD (2021 - ) 1998 ccm, 137 kw, 186 hp [Construction Year to :: 202305, Fitting Position :: Front Axle]

CX-30 (DM) SKYACTIV-G M Hybrid (2019 - ) 1998 ccm, 90 kw, 122 hp [Construction Year to :: 202305, Fitting Position :: Front Axle]

CX-30 (DM) SKYACTIV-G M Hybrid (DM5W, DM6W) (2020 - ) 1998 ccm, 110 kw, 150 hp [Block Separation :: , Construction Year from :: 202306, Construction Year to :: 202404, Engine Code :: PEXN, Left-/right-hand drive vehicles :: for right-hand drive vehicles, TecDoc Engine Number :: 39832]

CX-30 (DM) SKYACTIV-G M Hybrid AWD (2019 - ) 1998 ccm, 90 kw, 122 hp [Construction Year to :: 202305, Fitting Position :: Front Axle]

CX-30 (DM) SKYACTIV-G M Hybrid AWD (DMEW, DMFW) (2020 - ) 1998 ccm, 110 kw, 150 hp [Block Separation :: , Construction Year from :: 202306, Construction Year to :: 202404, Engine Code :: PEXN, Left-/right-hand drive vehicles :: for right-hand drive vehicles, TecDoc Engine Number :: 39832]

CX-30 (DM) SKYACTIV-X M Hybrid (DMFP) (2019 - ) 1998 ccm, 132 kw, 179 hp [Construction Year to :: 202009, Fitting Position :: Front Axle]

CX-30 (DM) SKYACTIV-X M Hybrid AWD (DM4W7, DMFP) (2019 - ) 1998 ccm, 132 kw, 179 hp [Construction Year to :: 202012, Fitting Position :: Front Axle]

Reviews

No customer reviews for the moment.

Write your review

BOSCH 0 986 479 H23 Brake Disc for MAZDA

BOSCH 0 986 479 H23 Brake Disc for MAZDA

MAZDA ➤ 3 Hatchback | 3 Saloon | CX-30
Write your review
6 other products in the same category:

Reference: 103053

Brand: KAMOKA

KAMOKA 103053 Brake Disc Front Axle for MAZDA

Fitting Position : Front Axle, Bolt Hole Circle Ø [mm] : 114,3, Brake Disc Thickness [mm] : 25, Brake Disc Type : Vented, Height [mm] : 46,5, Material : Grey Cast Iron, Outer Diameter [mm] : 295, Rim Hole Number : 5, Surface : Coated
Review(s): 0
Price €31.97 Regular price €35.52
More
In stock

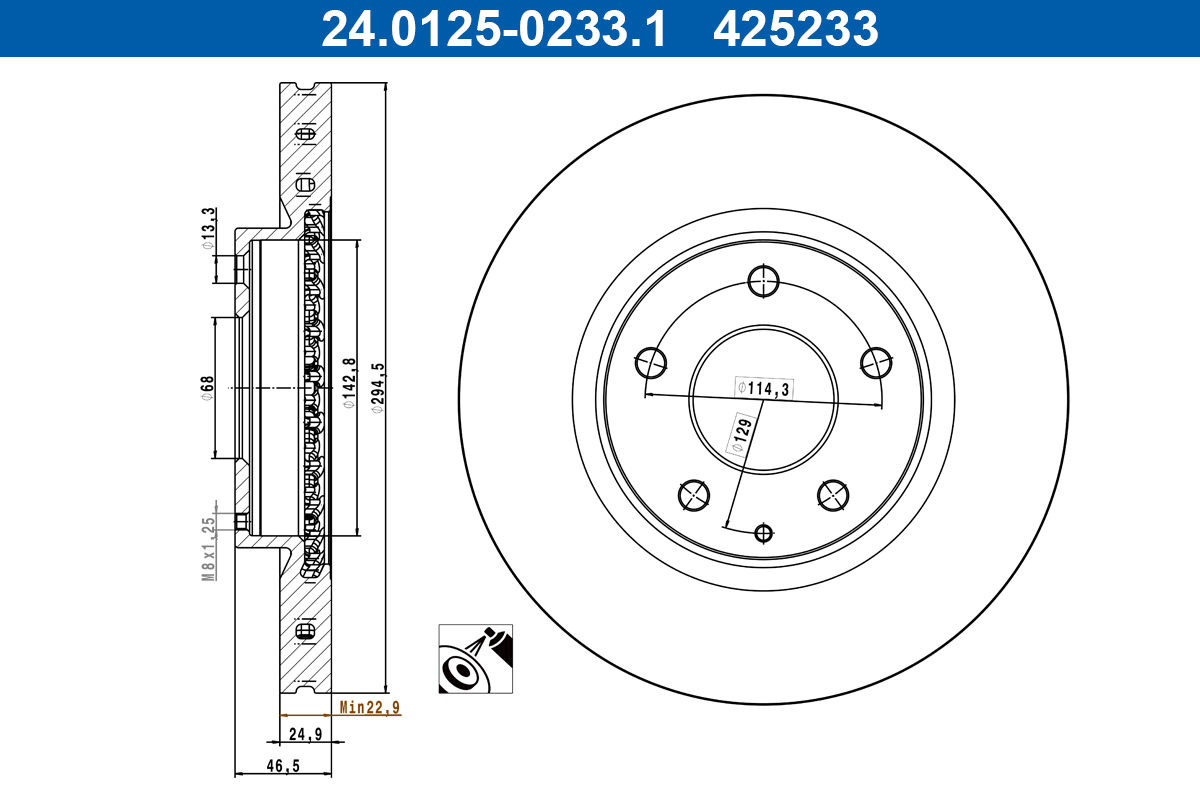

Reference: 24.0125-0233.1

Brand: ATE

ATE 24.0125-0233.1 Brake Disc for MAZDA

Bolt Hole Circle Ø [mm] : 114,3, Bore Diameter [mm] : 13,3, Brake Disc Thickness [mm] : 24,9, Brake Disc Type : Vented, Centering Diameter [mm] : 68,0, Height [mm] : 46,5, Inner Diameter [mm] : 142,8, MAPP code available : , Minimum thickness [mm] : 22,9, Number of Holes : 5, Outer Diameter [mm] : 294,5, Surface : Coated, Test Mark : E1 90R-02C0115/1127
Review(s): 0
Price €62.33 Regular price €69.25
More
In stock

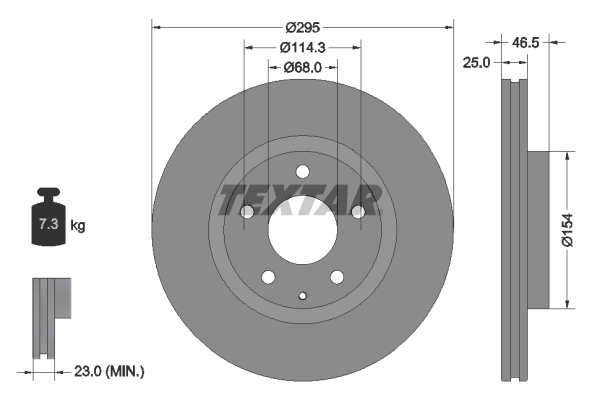

Reference: 92326203
