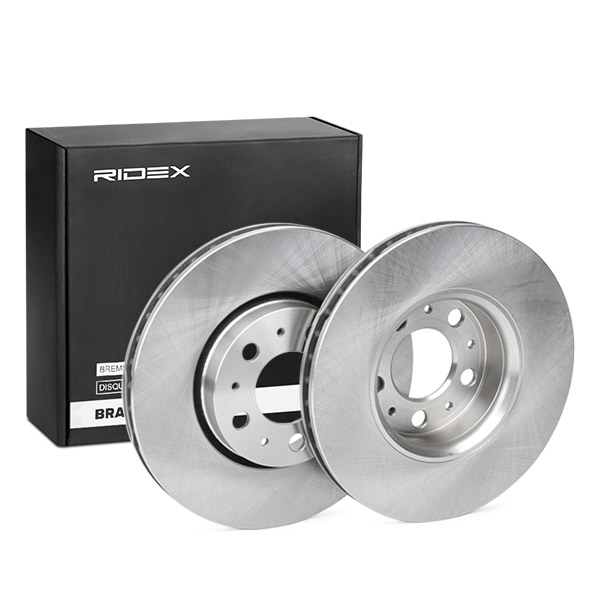

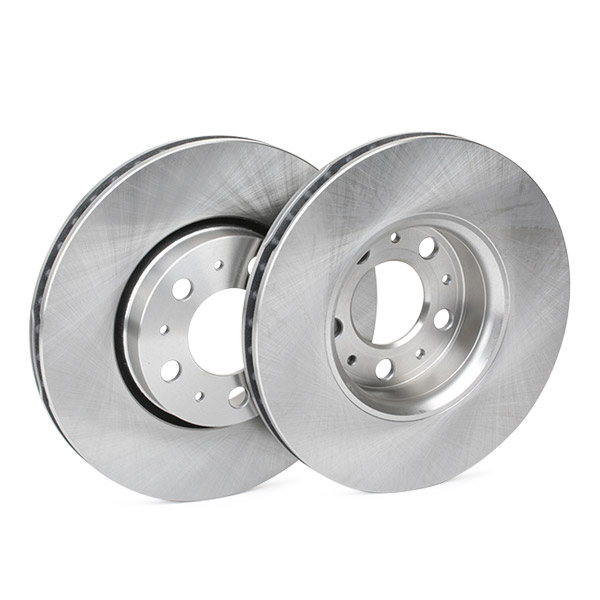

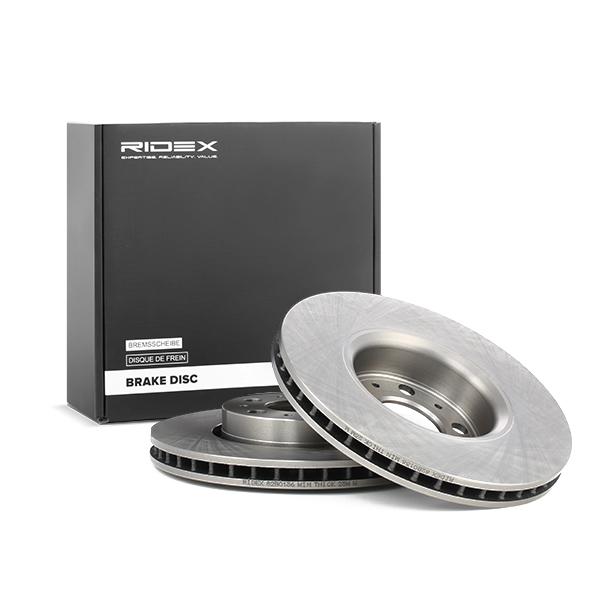

RIDEX 82B0136 Brake Disc Front Axle for VOLVO

Reference 82B0136

Brand RIDEX

Front Axle ➤ VOLVO ➤ S60 I | S70 | S80 I | V70 I | V70 II | XC70 I Cross Country

€22.99

€20.69 Save 10%

Tax included

Quantity

Available in warehouses

W01: 4 qty

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Product Details

Reference 82B0136

EAN13 4059191313754

MPN 82B0136

In stock 4 Items

Condition New

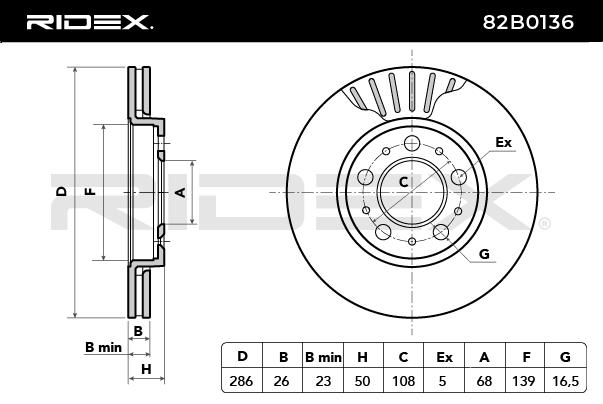

Data sheet

Bolt Hole Circle Ø [mm]: 108
108,0
Surface: Uncoated
Supplementary Article/Info 2: without wheel hub
without wheel studs
Fitting Position: Front Axle
Height [mm]: 50
Bore Diameter [mm]: 16,5

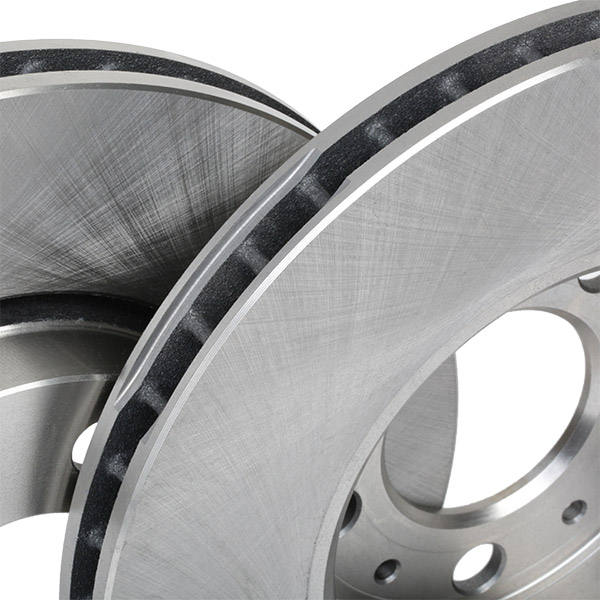

Brake Disc Type: Externally Vented
Vented
Brake Disc Thickness [mm]: 26
Minimum thickness [mm]: 23
Hole Arrangement/Number: 05/10
Inner Diameter [mm]: 139
139,0
Outer Diameter [mm]: 286
Number of Holes: 5
Centering Diameter [mm]: 68

A.B.S.: 09863311
A.B.S.: 17404
A.B.S.: 17404OE
ABE: C3V019ABE
ASHIKA: 60-00-0350
ATE: 24.0126-0122.1
BARUM: BAR26122
BLUE PRINT: ADF124361
BOSCH: 0 986 479 210
BRECK: BR388VA100
BREMBO: 09.8633.10
BREMBO: 09.8633.11
CHAMPION: 562244CH
CIFAM: 800560C
DELPHI: BG3513
DELPHI: BG3513C
DENCKERMANN: B130395
DJ PARTS: BD2008
DON: PCD11982
Dr!ve+: DP1010110334
FEBI BILSTEIN: 18044
FERODO: DDF1163
FERODO: DDF11631
FERODO: DDF1163C
FREMAX: BD4046
FTE: BS5226
FTE: BS5226B
HELLA: 8DD 355 107-051
HELLA PAGID: 8DD355107051
JP GROUP: 4963100700
JP GROUP: 4963100709
JPN: 30H9121JPN
JURID: 562244J
JURID: 562244JC
KAMOKA: 1032326
KRAFT AUTOMOTIVE: 6046391
LPR: V1484V
MAGNETI MARELLI: 360406052100
MAGNETI MARELLI: 360406052101
MAGNETI MARELLI: 360406052102
MAGNETI MARELLI: 360406052105
MAGNETI MARELLI: 361302040410
MAPCO: 15999
MASTER-SPORT GERMANY: 24012601221PCSMS
MASTER-SPORT GERMANY: 24012601221SETMS
MAXGEAR: 19-1296
MAXGEAR: 19-1296MAX
METELLI: 23-0560C
METZGER: 24795V
METZGER: 6110561
MEYLE: 515 521 5023
MINTEX: MDC1432
MINTEX: MDC1432C
NK: 204841
NK: 314841
NK: 344841
OPTIMAL: BS6330
OPTIMAL: BS6330HC
PAGID: 50282
QUARO: QD6482
QUARO: QD6482HC
QUINTON HAZELL: BDC5226
REMSA: 661910
ROADHOUSE: 661910
sbs: 1815204841
sbs: 1815314841
SWAG: 55918044
TEXTAR: 92100500
TEXTAR: 92100503
TRISCAN: 812027132
TRISCAN: 812027132C
TRW: DF4238
VAICO: V9580004
VALEO: 186789
VOLVO: 272403
VOLVO: 2724032
VOLVO: 2724037
VOLVO: 31262706
VOLVO: 31400739
VOLVO: 31471830
VOLVO: 946133
ZIMMERMANN: 610.3701.20

VOLVO

S60 I (384) 2.0 T (2000 - 2010) 1984 ccm, 132 kw, 180 hp [Rim Size [inch] :: 15]

S60 I (384) 2.4 (2000 - 2010) 2435 ccm, 103 kw, 140 hp [Rim Size [inch] :: 15]

S60 I (384) 2.4 (2000 - 2010) 2435 ccm, 125 kw, 170 hp [Rim Size [inch] :: 15]

S60 I (384) 2.4 (2005 - 2006) 2435 ccm, 132 kw, 180 hp

S60 I (384) 2.4 Bifuel (CNG) (2001 - 2010) 2435 ccm, 103 kw, 140 hp [Rim Size [inch] :: 15]

S60 I (384) 2.4 Bifuel (LPG) (2001 - 2010) 2435 ccm, 103 kw, 140 hp

S60 I (384) 2.4 CDI (2003 - 2005) 2401 ccm, 85 kw, 116 hp

S60 I (384) 2.4 D (2001 - 2010) 2401 ccm, 96 kw, 130 hp [Rim Size [inch] :: 15]

S60 I (384) 2.4 D (2005 - 2010) 2400 ccm, 93 kw, 126 hp

S60 I (384) 2.4 D (2005 - 2006) 2401 ccm, 90 kw, 122 hp

S60 I (384) 2.4 T (2000 - 2010) 2435 ccm, 147 kw, 200 hp [Rim Size [inch] :: 15]

S60 I (384) 2.4 T AWD (2001 - 2010) 2435 ccm, 147 kw, 200 hp [Rim Size [inch] :: 15]

S60 I (384) 2.5 T (2003 - 2010) 2521 ccm, 154 kw, 210 hp

S60 I (384) 2.5 T AWD (2002 - 2010) 2521 ccm, 154 kw, 210 hp

S60 I (384) D5 (2001 - 2010) 2400 ccm, 120 kw, 163 hp [Rim Size [inch] :: 15]

S60 I (384) D5 (2005 - 2010) 2401 ccm, 136 kw, 185 hp

S60 I (384) R 2,5 T AWD (2003 - 2010) 2521 ccm, 221 kw, 300 hp

S60 I (384) T5 (2000 - 2010) 2319 ccm, 184 kw, 250 hp [Rim Size [inch] :: 15]

S60 I (384) T5 (2004 - 2010) 2401 ccm, 191 kw, 260 hp

S60 I (384) T5 (2000 - 2002) 2319 ccm, 195 kw, 265 hp

S70 (874) 2.0 (1997 - 2000) 1984 ccm, 93 kw, 126 hp

S70 (874) 2.0 (1997 - 2000) 1984 ccm, 132 kw, 180 hp

S70 (874) 2.0 (1997 - 2000) 1984 ccm, 120 kw, 163 hp

S70 (874) 2.0 Turbo (1997 - 2000) 1984 ccm, 166 kw, 226 hp

S70 (874) 2.3 (1999 - 2000) 2319 ccm, 195 kw, 265 hp

S70 (874) 2.3 Turbo (1997 - 2000) 2319 ccm, 184 kw, 250 hp

S70 (874) 2.4 (1997 - 2000) 2435 ccm, 106 kw, 144 hp

S70 (874) 2.4 (1997 - 2000) 2435 ccm, 125 kw, 170 hp

S70 (874) 2.4 (1998 - 2000) 2435 ccm, 121 kw, 165 hp

S70 (874) 2.4 (1999 - 2000) 2435 ccm, 103 kw, 140 hp

S70 (874) 2.4 AWD (1999 - 2000) 2435 ccm, 103 kw, 140 hp

S70 (874) 2.4 AWD (1996 - 1999) 2435 ccm, 106 kw, 144 hp

S70 (874) 2.4 AWD (1998 - 1999) 2435 ccm, 121 kw, 165 hp

S70 (874) 2.4 AWD (1999 - 2000) 2435 ccm, 125 kw, 170 hp

S70 (874) 2.4 Bifuel (1998 - 2000) 2435 ccm, 106 kw, 144 hp

S70 (874) 2.4 Bifuel (1999 - 2000) 2435 ccm, 103 kw, 140 hp

S70 (874) 2.4 Blu-Fuel (1997 - 2000) 2435 ccm, 103 kw, 140 hp

S70 (874) 2.4 T5 AWD (1996 - 1999) 2435 ccm, 142 kw, 193 hp

S70 (874) 2.4 Turbo (1997 - 2000) 2435 ccm, 142 kw, 193 hp

S70 (874) 2.5 TDI (1997 - 2000) 2460 ccm, 103 kw, 140 hp

S70 (874) 2.5 TDi AWD (1999 - 2000) 2460 ccm, 103 kw, 140 hp

S70 (874) T5 (1997 - 2000) 2319 ccm, 176 kw, 239 hp

S80 I (184) 2.0 (1998 - 2006) 1984 ccm, 120 kw, 163 hp [Rim Size [inch] :: 15]

S80 I (184) 2.0 T (1998 - 2006) 1984 ccm, 166 kw, 226 hp [Rim Size [inch] :: 15]

S80 I (184) 2.0 T (1999 - 2006) 1984 ccm, 132 kw, 180 hp [Rim Size [inch] :: 15]

S80 I (184) 2.4 (1999 - 2006) 2435 ccm, 103 kw, 140 hp [Rim Size [inch] :: 15]

S80 I (184) 2.4 (1999 - 2006) 2435 ccm, 125 kw, 170 hp [Rim Size [inch] :: 15]

S80 I (184) 2.4 Bifuel (CNG) (2001 - 2006) 2435 ccm, 103 kw, 140 hp [Rim Size [inch] :: 15]

S80 I (184) 2.4 Bifuel (LPG) (2001 - 2006) 2435 ccm, 103 kw, 140 hp

S80 I (184) 2.4 D (2001 - 2006) 2401 ccm, 96 kw, 131 hp [Rim Size [inch] :: 15]

S80 I (184) 2.4 T (2000 - 2006) 2435 ccm, 147 kw, 200 hp [Rim Size [inch] :: 15]

S80 I (184) 2.5 T (2003 - 2006) 2521 ccm, 154 kw, 210 hp

S80 I (184) 2.5 T AWD (2003 - 2006) 2521 ccm, 154 kw, 210 hp

S80 I (184) 2.5 TDI (1999 - 2006) 2460 ccm, 103 kw, 140 hp [Rim Size [inch] :: 15]

S80 I (184) 2.9 (1998 - 2006) 2922 ccm, 150 kw, 204 hp [Rim Size [inch] :: 15]

S80 I (184) 2.9 (1999 - 2006) 2922 ccm, 147 kw, 200 hp [Rim Size [inch] :: 15]

S80 I (184) 2.9 (1998 - 2008) 2922 ccm, 144 kw, 196 hp

S80 I (184) 3.0 (2001 - 2006) 2922 ccm, 144 kw, 196 hp [Rim Size [inch] :: 15]

S80 I (184) D5 (2001 - 2006) 2401 ccm, 120 kw, 163 hp [Rim Size [inch] :: 15]

S80 I (184) T5 AWD (2000 - 2003) 2435 ccm, 147 kw, 200 hp

S80 I (184) T6 (1998 - 2001) 2783 ccm, 200 kw, 272 hp [Rim Size [inch] :: 15]

S80 I (184) T6 (2001 - 2006) 2922 ccm, 200 kw, 272 hp [Rim Size [inch] :: 15]

V70 I (875, 876) 2.0 (1995 - 2000) 1984 ccm, 93 kw, 126 hp

V70 I (875, 876) 2.0 (1996 - 2000) 1984 ccm, 132 kw, 180 hp

V70 I (875, 876) 2.0 (1997 - 2000) 1984 ccm, 120 kw, 163 hp

V70 I (875, 876) 2.0 Turbo (1996 - 2000) 1984 ccm, 166 kw, 226 hp

V70 I (875, 876) 2.0 Turbo AWD (1996 - 2000) 1984 ccm, 166 kw, 226 hp

V70 I (875, 876) 2.3 AWD (1998 - 2000) 2319 ccm, 195 kw, 265 hp

V70 I (875, 876) 2.3 T-5 (1996 - 2000) 2319 ccm, 176 kw, 239 hp

V70 I (875, 876) 2.4 (1995 - 2000) 2435 ccm, 125 kw, 170 hp

V70 I (875, 876) 2.4 (1998 - 1999) 2435 ccm, 121 kw, 165 hp

V70 I (875, 876) 2.4 (1999 - 2000) 2435 ccm, 103 kw, 140 hp

V70 I (875, 876) 2.4 Bifuel (1998 - 1999) 2435 ccm, 106 kw, 144 hp

V70 I (875, 876) 2.4 Bifuel (1999 - 2000) 2435 ccm, 103 kw, 140 hp

V70 I (875, 876) 2.4 Turbo (1996 - 2000) 2435 ccm, 142 kw, 193 hp

V70 I (875, 876) 2.4 Turbo AWD (1996 - 2000) 2435 ccm, 142 kw, 193 hp

V70 I (875, 876) 2.4 Turbo AWD (1999 - 2000) 2435 ccm, 195 kw, 265 hp

V70 I (875, 876) 2.5 TDI (1995 - 2000) 2460 ccm, 103 kw, 140 hp

V70 I (875, 876) 2.5 TDi AWD (1996 - 2000) 2460 ccm, 103 kw, 140 hp

V70 II (285) 2.0 T (1999 - 2007) 1984 ccm, 132 kw, 180 hp [Rim Size [inch] :: 15]

V70 II (285) 2.3 (2000 - 2004) 2319 ccm, 195 kw, 265 hp

V70 II (285) 2.4 (2000 - 2007) 2435 ccm, 103 kw, 140 hp [Rim Size [inch] :: 15]

V70 II (285) 2.4 (2000 - 2007) 2435 ccm, 125 kw, 170 hp [Rim Size [inch] :: 15]

V70 II (285) 2.4 Bifuel (CNG) (2001 - 2007) 2435 ccm, 103 kw, 140 hp [Rim Size [inch] :: 15]

V70 II (285) 2.4 Bifuel (LPG) (2001 - 2007) 2435 ccm, 103 kw, 140 hp

V70 II (285) 2.4 CDI (2005 - 2008) 2401 ccm, 90 kw, 122 hp

V70 II (285) 2.4 D (2001 - 2007) 2401 ccm, 96 kw, 131 hp [Rim Size [inch] :: 15]

V70 II (285) 2.4 D (2005 - 2008) 2400 ccm, 93 kw, 126 hp

V70 II (285) 2.4 T (1999 - 2003) 2435 ccm, 147 kw, 200 hp [Rim Size [inch] :: 15]

V70 II (285) 2.4 T AWD (2001 - 2002) 2435 ccm, 147 kw, 200 hp [Rim Size [inch] :: 15]

V70 II (285) 2.5 T (2001 - 2007) 2521 ccm, 154 kw, 209 hp

V70 II (285) 2.5 T AWD (2002 - 2007) 2521 ccm, 154 kw, 209 hp

V70 II (285) 2.5 TDI (1999 - 2007) 2460 ccm, 103 kw, 140 hp [Rim Size [inch] :: 15]

V70 II (285) D5 (2001 - 2008) 2401 ccm, 120 kw, 163 hp [Rim Size [inch] :: 15]

V70 II (285) D5 (2005 - 2008) 2401 ccm, 136 kw, 185 hp

V70 II (285) D5 AWD (2002 - 2007) 2401 ccm, 120 kw, 163 hp [Rim Size [inch] :: 15]

V70 II (285) D5 AWD (2005 - 2007) 2401 ccm, 136 kw, 185 hp

V70 II (285) T5 (1999 - 2004) 2319 ccm, 184 kw, 250 hp [Rim Size [inch] :: 15]

V70 II (285) T5 (2004 - 2007) 2401 ccm, 191 kw, 260 hp

XC70 I Cross Country (295) 2.4 T XC AWD (2000 - 2002) 2435 ccm, 147 kw, 200 hp

XC70 I Cross Country (295) 2.4 T XC AWD (1997 - 2002) 2435 ccm, 142 kw, 193 hp

XC70 I Cross Country (295) 2.5 T XC AWD (2002 - 2007) 2521 ccm, 154 kw, 209 hp

XC70 I Cross Country (295) D5 AWD (2005 - 2007) 2401 ccm, 136 kw, 185 hp

XC70 I Cross Country (295) D5 XC AWD (2002 - 2007) 2401 ccm, 120 kw, 163 hp

Reviews

No customer reviews for the moment.
