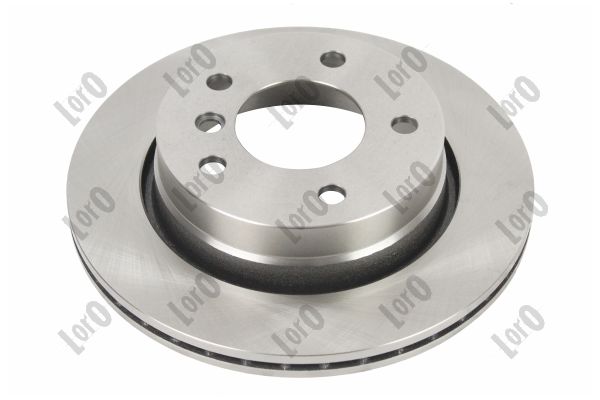

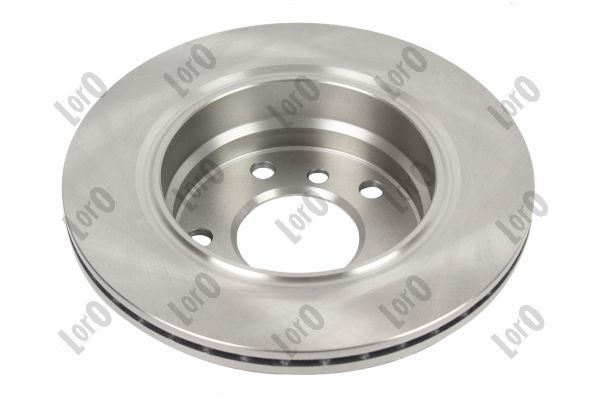

ABAKUS 231-04-014 Brake Disc for BMW

Reference 231-04-014

Brand ABAKUS

BMW ➤ 3 | 3 Compact | 3 Convertible | 3 Coupe | 3 Touring

€24.14

€21.73 Save 10%

Tax included

Quantity

Available in warehouses

W01: 9 qty

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Product Details

Reference 231-04-014

MPN 231-04-014

In stock 9 Items

Condition New

Data sheet

Test Mark: ECE R90
Height [mm]: 60,3
Required quantity: 2
Brake Disc Type: Vented
Brake Disc Thickness [mm]: 19
Outer Diameter [mm]: 276
Number of Holes: 5
Centering Diameter [mm]: 75
Bolt Hole Circle Ø [mm]: 120
Replace in pairs only
Assy./disassy. by qualified personnel required!

ABE: C4B002ABE
ASHIKA: 61-00-0111
ATE: 24.0119-0107.1
BARUM: BAR19107
BENDIX - OLD: 562003B
BMW: 34211162315
BMW: 34211165211
BMW: 34216855155
BMW: 34216864903
BOSCH: 0 986 478 642
BREMBO: 09.7727.10
BREMBO: 09.7727.11
BREMBO: 09.7727.75
BREMBO: RD141000
CAR: 142096
CIFAM: 800450
DELPHI: BG3041
DENCKERMANN: B130314
FEBI BILSTEIN: 12324
FERODO: DDF831
FERODO: DRF831
FTE: BS4536
GALFER: B1G21901071
GALFER: G2119107
GRAF: DF29450
HART: 215373
HELLA PAGID: 8DD355104271
HELLA PAGID: 8DD355104281
JURID: 562003J
JURID: 562003JC
KAMOKA: 1031662
MAXGEAR: 19-0846
METELLI: 23-0450C
METELLI: 230450
MGA: D1250
MINTEX: MDC1053
NK: 201535
PAGID: 50436
PAGID: 50436PRO
PEX: 140111
PEX: 140111N
PILENGA: V127
QUINTON HAZELL: BDC4536
QUINTON HAZELL: BSF4536
ROADHOUSE: 645810
ROULUNDS BRAKING: D2409
SEBRO: 2414
TEXTAR: 92072400
TEXTAR: 92072403
TEXTAR: 98200072401
TEXTAR: 98200072401PRO
TRW: DF2767
VALEO: 186559
ZIMMERMANN: 150.1283.20
ZIMMERMANN: 150128300
ZIMMERMANN: 150128350

BMW

3 (E36) 323 i (1995 - 1998) 2494 ccm, 125 kw, 170 hp [Fitting Position :: Rear Axle]

3 (E36) 328 i (1995 - 1998) 2793 ccm, 142 kw, 193 hp [Fitting Position :: Rear Axle]

3 (E46) 316 i (1998 - 2002) 1895 ccm, 77 kw, 105 hp [Fitting Position :: Rear Axle, Payload :: for increased payload]

3 (E46) 316 i (2002 - 2005) 1796 ccm, 85 kw, 115 hp [Fitting Position :: Rear Axle, Payload :: for increased payload]

3 (E46) 316 i (2002 - 2005) 1596 ccm, 85 kw, 115 hp [Fitting Position :: Rear Axle, Payload :: for increased payload]

3 (E46) 318 d (2001 - 2003) 1951 ccm, 85 kw, 116 hp [Fitting Position :: Rear Axle]

3 (E46) 318 d (2003 - 2005) 1995 ccm, 85 kw, 116 hp [Fitting Position :: Rear Axle]

3 (E46) 318 i (1997 - 2001) 1895 ccm, 87 kw, 118 hp [Fitting Position :: Rear Axle, Payload :: for increased payload]

3 (E46) 318 i (2001 - 2005) 1995 ccm, 105 kw, 143 hp [Fitting Position :: Rear Axle, Payload :: not for increased payload]

3 (E46) 318 i (2001 - 2005) 1995 ccm, 100 kw, 136 hp [Fitting Position :: Rear Axle, Payload :: not for increased payload]

3 (E46) 320 d (1998 - 2001) 1951 ccm, 100 kw, 136 hp [Fitting Position :: Rear Axle]

3 (E46) 320 d (1998 - 2001) 1951 ccm, 95 kw, 129 hp [Fitting Position :: Rear Axle]

3 (E46) 320 i (1998 - 2000) 1990 ccm, 110 kw, 150 hp [Fitting Position :: Rear Axle, Payload :: not for increased payload]

3 (E46) 320 i (2000 - 2005) 2171 ccm, 125 kw, 170 hp [Fitting Position :: Rear Axle, Payload :: not for increased payload]

3 (E46) 320 i (2000 - 2005) 2171 ccm, 120 kw, 163 hp [Fitting Position :: Rear Axle, Payload :: not for increased payload]

3 (E46) 323 i (1998 - 2000) 2494 ccm, 125 kw, 170 hp [Fitting Position :: Rear Axle, Payload :: not for increased payload]

3 (E46) 323 i (1998 - 2000) 2494 ccm, 120 kw, 163 hp [Fitting Position :: Rear Axle, Payload :: not for increased payload]

3 Compact (E46) 316 ti (2001 - 2005) 1796 ccm, 85 kw, 115 hp [Fitting Position :: Rear Axle, Payload :: for increased payload]

3 Compact (E46) 316 ti (2002 - 2005) 1596 ccm, 85 kw, 115 hp [Fitting Position :: Rear Axle, Payload :: for increased payload]

3 Compact (E46) 318 td (2003 - 2005) 1995 ccm, 85 kw, 115 hp [Fitting Position :: Rear Axle]

3 Compact (E46) 318 ti (2001 - 2004) 1995 ccm, 105 kw, 143 hp [Construction Year from :: 200109, Fitting Position :: Rear Axle]

3 Compact (E46) 318 ti (2001 - 2004) 1995 ccm, 100 kw, 136 hp [Construction Year from :: 200109, Fitting Position :: Rear Axle]

3 Convertible (E36) 323 i (1995 - 1999) 2494 ccm, 125 kw, 170 hp [Fitting Position :: Rear Axle]

3 Convertible (E36) 328 i (1995 - 1999) 2793 ccm, 142 kw, 193 hp [Fitting Position :: Rear Axle]

3 Convertible (E46) 318 Ci (2001 - 2007) 1995 ccm, 105 kw, 143 hp [Construction Year to :: 200609, Fitting Position :: Rear Axle]

3 Convertible (E46) 318 Ci (2004 - 2006) 1995 ccm, 110 kw, 150 hp [Fitting Position :: Rear Axle]

3 Convertible (E46) 318 Ci (2000 - 2006) 1995 ccm, 100 kw, 136 hp [Construction Year from :: 200109, Fitting Position :: Rear Axle]

3 Coupe (E36) 323 i (1995 - 1999) 2494 ccm, 125 kw, 170 hp [Fitting Position :: Rear Axle]

3 Coupe (E36) 328 i (1995 - 1999) 2793 ccm, 142 kw, 193 hp [Fitting Position :: Rear Axle]

3 Coupe (E46) 318 Ci (2001 - 2004) 1995 ccm, 105 kw, 143 hp [Fitting Position :: Rear Axle]

3 Coupe (E46) 318 Ci (2004 - 2006) 1995 ccm, 110 kw, 150 hp [Fitting Position :: Rear Axle]

3 Coupe (E46) 318 Ci (2000 - 2006) 1995 ccm, 100 kw, 136 hp [Construction Year from :: 200109, Fitting Position :: Rear Axle]

3 Coupe (E46) 320 Ci (1999 - 2001) 1990 ccm, 110 kw, 150 hp [Construction Year from :: 199908, Construction Year to :: 200009, Fitting Position :: Rear Axle]

3 Coupe (E46) 320 Ci (2000 - 2006) 2171 ccm, 125 kw, 170 hp [Construction Year from :: 200009, Fitting Position :: Rear Axle]

3 Coupe (E46) 320 Ci (2000 - 2006) 2171 ccm, 120 kw, 163 hp [Construction Year from :: 200009, Fitting Position :: Rear Axle]

3 Coupe (E46) 323 Ci (1999 - 2000) 2494 ccm, 125 kw, 170 hp [Fitting Position :: Rear Axle]

3 Coupe (E46) 323 Ci (1999 - 2000) 2494 ccm, 120 kw, 163 hp [Fitting Position :: Rear Axle]

3 Touring (E36) 323 i (1995 - 1999) 2494 ccm, 125 kw, 170 hp [Fitting Position :: Rear Axle]

3 Touring (E36) 328 i (1995 - 1999) 2793 ccm, 142 kw, 193 hp [Fitting Position :: Rear Axle]

3 Touring (E46) 316 i (2002 - 2005) 1796 ccm, 85 kw, 115 hp [Fitting Position :: Rear Axle]

3 Touring (E46) 318 d (2002 - 2003) 1951 ccm, 85 kw, 115 hp [Fitting Position :: Rear Axle, Payload :: not for increased payload]

3 Touring (E46) 318 d (2003 - 2005) 1995 ccm, 85 kw, 116 hp [Fitting Position :: Rear Axle, Payload :: not for increased payload]

3 Touring (E46) 318 i (1999 - 2001) 1895 ccm, 87 kw, 118 hp [Fitting Position :: Rear Axle]

3 Touring (E46) 318 i (2001 - 2005) 1995 ccm, 105 kw, 143 hp [Fitting Position :: Rear Axle]

3 Touring (E46) 318 i (1999 - 2001) 1895 ccm, 85 kw, 116 hp [Fitting Position :: Rear Axle]

3 Touring (E46) 320 d (2000 - 2001) 1951 ccm, 100 kw, 136 hp [Fitting Position :: Rear Axle]

3 Touring (E46) 320 i (1999 - 2000) 1990 ccm, 110 kw, 150 hp [Fitting Position :: Rear Axle]

Reviews

No customer reviews for the moment.

16 other products in the same category:

-10% -10%

Quick view

Reference: 92072403

Brand: TEXTAR

TEXTAR 92072403 PRO Brake Disc for BMW BMW (BRILLIANCE)

Bolt Hole Circle Ø [mm] : 120, Brake Disc Thickness [mm] : 19, Brake Disc Type : Externally Vented, Centering Diameter [mm] : 75, Height [mm] : 60,1, Hole Arrangement/Number : 05/06, Inner Diameter [mm] : 160,8, Minimum thickness [mm] : 17,4, Outer Diameter [mm] : 276, Packaging height [cm] : 14, Packaging length [cm] : 31,3, Packaging width [cm] : 31,3,...

Review(s): 0

€37.61 €41.79

In stock

-10% -10%

Quick view

Reference: 09.7727.75

Brand: BREMBO

BREMBO 09.7727.75 XTRA LINE - Max Brake Disc for BMW BMW (BRILLIANCE)

Brake Disc Thickness [mm] : 19, Brake Disc Type : internally vented, Brake Disc Type : slotted, Centering Diameter [mm] : 75, Height [mm] : 60, Machining : High-carbon, Minimum thickness [mm] : 17,4, Number of Holes : 5, Outer Diameter [mm] : 276, Supplementary Article/Info 2 : with bolts/screws, Surface : Coated, Tightening Torque [Nm] : 120

Review(s): 0

€46.01 €51.12

In stock

-10% -10%

Quick view

Reference: 315 523 0041

Brand: MEYLE

MEYLE 315 523 0041 MEYLE-ORIGINAL: True to OE. Brake Disc Rear Axle for BMW

Fitting Position : Rear Axle, Bolt Hole Circle Ø [mm] : 120, Brake Disc Thickness [mm] : 19, Brake Disc Type : Vented, Centering Diameter [mm] : 75, Height [mm] : 60, Minimum thickness [mm] : 17,4, Number of Holes : 5, Outer Diameter [mm] : 276, Required quantity : 2, Wheel Bolt Bore Diameter [mm] : 14,5

Review(s): 0

€25.00 €27.78

In stock

-10% -10%

Quick view

Reference: 1031662

Brand: KAMOKA

KAMOKA 1031662 Brake Disc Rear Axle for BMW

Fitting Position : Rear Axle, Bolt Hole Circle Ø [mm] : 120, Brake Disc Thickness [mm] : 19, Brake Disc Type : Vented, Centering Diameter [mm] : 75, Height [mm] : 60, Number of Holes : 5, Outer Diameter [mm] : 276, Surface : Coated

Review(s): 0

€21.82 €24.24

In stock

-10% -10%

Quick view

Reference: 09.7727.1X

Brand: BREMBO

BREMBO 09.7727.1X XTRA LINE - Xtra Brake Disc for BMW BMW (BRILLIANCE)

Brake Disc Thickness [mm] : 19, Brake Disc Type : perforated/vented, Centering Diameter [mm] : 75, Height [mm] : 60, Machining : High-carbon, Minimum thickness [mm] : 17,6, Number of Holes : 5, Outer Diameter [mm] : 276, Supplementary Article/Info 2 : with bolts/screws, Surface : Coated

Review(s): 0

€63.88 €70.98

In stock

-10% -10%

Quick view

Reference: 82B0097

Brand: RIDEX

RIDEX 82B0097 Brake Disc Rear Axle for BMW

Fitting Position : Rear Axle, Bolt Hole Circle Ø [mm] : 104, Brake Disc Thickness [mm] : 19, Brake Disc Type : Externally Vented, Centering Diameter [mm] : 75, Diameter [mm] : 276, Height [mm] : 60,1, Minimum thickness [mm] : 17,4, Number of Holes : 5, Outer Diameter [mm] : 276, Quantity Unit : Set, Supplementary Article/Info 2...

Review(s): 0

€21.62 €24.02

Last items in stock

-10% -10%

Quick view

Reference: 0 986 478 642

Brand: BOSCH

BOSCH 0 986 478 642 Brake Disc for BMW BMW (BRILLIANCE)

Bolt Hole Circle Ø [mm] : 120, Bore Diameter up to [mm] : 14,8, Brake Disc Thickness [mm] : 19, Brake Disc Type : Vented, Centering Diameter [mm] : 75, fulfils ECE norm : ECE-R90, Height [mm] : 60, Machining : High-carbon, Minimum thickness [mm] : 17,4, Number of Holes : 5, Outer Diameter [mm] : 276, Supplementary Article/Info 2 : with bolts/screws,...

Review(s): 0

€35.97 €39.96

In stock

-10% -10%

Quick view

Reference: 24.0119-0107.1

Brand: ATE

ATE 24.0119-0107.1 Brake Disc for BMW

Bolt Hole Circle Ø [mm] : 120,0, Bore Diameter [mm] : 14,5, Brake Disc Thickness [mm] : 19,0, Brake Disc Type : Vented, Centering Diameter [mm] : 75,0, Height [mm] : 60,3, Inner Diameter [mm] : 160,8, Machining : High-carbon, MAPP code available : , Minimum thickness [mm] : 17,4, Number of Holes : 5, Outer Diameter [mm] : 276,0, Supplementary Article/Info...

Review(s): 0

€39.44 €43.82

In stock

-10% -10%

Quick view

Reference: 24.0319-0107.1

Brand: ATE

ATE 24.0319-0107.1 PowerDisc Brake Disc for BMW

Bolt Hole Circle Ø [mm] : 120,0, Bore Diameter [mm] : 14,5, Brake Disc Thickness [mm] : 19,0, Brake Disc Type : Vented, Centering Diameter [mm] : 75,0, Height [mm] : 60,3, Inner Diameter [mm] : 160,8, Machining : High-carbon, MAPP code available : , Minimum thickness [mm] : 16,6, Number of Holes : 5, Outer Diameter [mm] : 276,0, Supplementary Article/Info...

Review(s): 0

€46.64 €51.82

In stock

-10% -10%

Quick view

Reference: 09.7727.11

Brand: BREMBO

BREMBO 09.7727.11 PRIME LINE - UV Coated Brake Disc for BMW BMW (BRILLIANCE)

Brake Disc Thickness [mm] : 19, Brake Disc Type : internally vented, Centering Diameter [mm] : 75, Height [mm] : 60, Machining : High-carbon, Minimum thickness [mm] : 17,4, Number of Holes : 5, Outer Diameter [mm] : 276, Supplementary Article/Info 2 : with bolts/screws, Surface : Coated, Tightening Torque [Nm] : 120

Review(s): 0

€30.84 €34.27

In stock

-10% -10%

Quick view

Reference: 23-0450C

Brand: METELLI

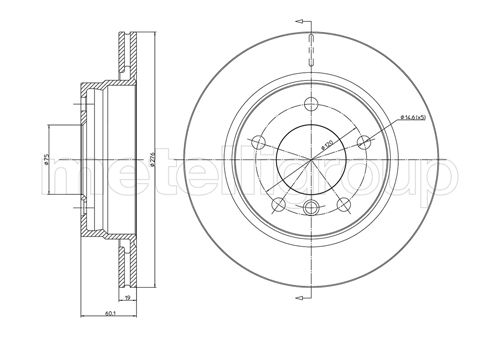

METELLI 23-0450C Brake Disc for BMW BMW (BRILLIANCE)
