ABAKUS 231-03-234 Brake Disc for RENAULT

Reference 231-03-234

Brand ABAKUS

RENAULT ➤ LAGUNA II | LAGUNA II Grandtour

€30.46

€27.41 Save 10%

Tax included

Quantity

Last items in stock

Available in warehouses

W01: 2 qty

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Product Details

Reference 231-03-234

MPN 231-03-234

In stock 2 Items

Condition New

Data sheet

Test Mark: ECE R90
Height [mm]: 46,9
Required quantity: 2
Brake Disc Type: Vented
Brake Disc Thickness [mm]: 24
Outer Diameter [mm]: 280
Number of Holes: 5
Centering Diameter [mm]: 61
Bolt Hole Circle Ø [mm]: 108
Replace in pairs only
Assy./disassy. by qualified personnel required!

ABE: C3R027ABE
ATE: 24.0124-0169.1
BENDIX - OLD: 562182B
BOSCH: 0 986 478 743
BOSCH: 0 986 479 743
BREMBO: 09.8936.10
BREMBO: 09.8936.11
CAR: 142365
CIFAM: 800676
DELPHI: BG3733
DENCKERMANN: B130378
FEBI BILSTEIN: 23332
FERODO: DDF1182
FERODO: DDF11821
FTE: BS5431
GALFER: B1G22401691
GALFER: G2124169
GRAF: DF29676
HART: 231745
HELLA PAGID: 8DD355109271
HELLA PAGID: 8DD355109281
JURID: 562182J
MAXGEAR: 19-1299
METELLI: 23-0676C
METELLI: 230676
MGA: D1425
MINTEX: MDC1533
PAGID: 54189
PAGID: 54189PRO
PILENGA: V134
QUINTON HAZELL: BDC5431
QUINTON HAZELL: BSF5431
RENAULT: 7701206613
RENAULT: 8200007121
RENAULT: 8671017410
ROADHOUSE: 669710
ROULUNDS BRAKING: D2606
TEXTAR: 92118900
TEXTAR: 92118903
TEXTAR: 98200118901
TRW: DF4179
VALEO: 186715
VALEO: 197328
ZIMMERMANN: 470241300
ZIMMERMANN: 470241350

RENAULT

LAGUNA II (BG0/1_) 1.6 (2001 - 2005) 1598 ccm, 76 kw, 103 hp [Fitting Position :: Front Axle]

LAGUNA II (BG0/1_) 1.6 16V (BG0A, BG0L) (2001 - 2005) 1598 ccm, 79 kw, 107 hp [Fitting Position :: Front Axle]

LAGUNA II (BG0/1_) 1.6 16V (BG1G, BG1H) (2005 - 2007) 1598 ccm, 82 kw, 112 hp [Construction Year to :: 200706, Fitting Position :: Front Axle]

LAGUNA II (BG0/1_) 1.6 LPG (2001 - 2005) 1598 ccm, 79 kw, 107 hp [Fitting Position :: Front Axle]

LAGUNA II (BG0/1_) 1.8 16V (BG04, BG0B, BG0C, BG0V) (2001 - 2005) 1783 ccm, 86 kw, 117 hp [Fitting Position :: Front Axle]

LAGUNA II (BG0/1_) 1.8 16V (BG06, BG0J, BG0M) (2001 - 2007) 1783 ccm, 85 kw, 116 hp [Construction Year to :: 200706, Fitting Position :: Front Axle]

LAGUNA II (BG0/1_) 1.8 16V (BG0B, BG0C, BG0J, BG0M, BG0V) (2001 - 2005) 1783 ccm, 89 kw, 121 hp [Fitting Position :: Front Axle]

LAGUNA II (BG0/1_) 1.8 16V (BG0B, BG0M) (2001 - 2007) 1783 ccm, 88 kw, 120 hp [Construction Year to :: 200706, Fitting Position :: Front Axle]

LAGUNA II (BG0/1_) 1.9 dCi (2001 - 2007) 1870 ccm, 79 kw, 107 hp [Construction Year to :: 200706, Fitting Position :: Front Axle]

LAGUNA II (BG0/1_) 1.9 dCi (2005 - 2007) 1870 ccm, 92 kw, 125 hp [Construction Year to :: 200706, Fitting Position :: Front Axle]

LAGUNA II (BG0/1_) 1.9 dCi (BG05) (2004 - 2005) 1870 ccm, 68 kw, 92 hp [Fitting Position :: Front Axle]

LAGUNA II (BG0/1_) 1.9 dCi (BG08, BG0G) (2001 - 2007) 1870 ccm, 88 kw, 120 hp [Construction Year to :: 200706, Fitting Position :: Front Axle]

LAGUNA II (BG0/1_) 1.9 dCI (BG0E) (2001 - 2005) 1870 ccm, 77 kw, 105 hp [Fitting Position :: Front Axle]

LAGUNA II (BG0/1_) 1.9 dCi (BG0R, BG0E) (2001 - 2005) 1870 ccm, 74 kw, 100 hp [Fitting Position :: Front Axle]

LAGUNA II (BG0/1_) 1.9 dCi (BG12) (2005 - 2007) 1870 ccm, 85 kw, 116 hp [Construction Year to :: 200706, Fitting Position :: Front Axle]

LAGUNA II (BG0/1_) 1.9 dCi (BG1A, BG1V) (2005 - 2007) 1870 ccm, 96 kw, 130 hp [Construction Year to :: 200706, Fitting Position :: Front Axle]

LAGUNA II (BG0/1_) 1.9 dCi (BG1A, BG1W, BG0G) (2005 - 2007) 1870 ccm, 81 kw, 110 hp [Construction Year to :: 200706, Fitting Position :: Front Axle]

LAGUNA II (BG0/1_) 2.0 16V (BG00, BG0K, BG0P, BG0W) (2002 - 2007) 1998 ccm, 99 kw, 135 hp [Construction Year to :: 200706, Fitting Position :: Front Axle]

LAGUNA II (BG0/1_) 2.0 16V (BG00, BG0W, BG0K, BG0P) (2002 - 2006) 1998 ccm, 98 kw, 133 hp [Fitting Position :: Front Axle]

LAGUNA II (BG0/1_) 2.0 16V IDE (BG0N) (2001 - 2007) 1998 ccm, 103 kw, 140 hp [Construction Year to :: 200706, Fitting Position :: Front Axle]

LAGUNA II Grandtour (KG0/1_) 1.6 (2001 - 2005) 1598 ccm, 76 kw, 103 hp [Fitting Position :: Front Axle]

LAGUNA II Grandtour (KG0/1_) 1.6 16V (2005 - 2007) 1598 ccm, 82 kw, 112 hp [Construction Year to :: 200706, Fitting Position :: Front Axle]

LAGUNA II Grandtour (KG0/1_) 1.6 16V (KG0A, KG0L) (2001 - 2007) 1598 ccm, 79 kw, 107 hp [Construction Year to :: 200706, Fitting Position :: Front Axle]

LAGUNA II Grandtour (KG0/1_) 1.6 Bifuel (2005 - 2007) 1598 ccm, 79 kw, 107 hp [Construction Year to :: 200706, Fitting Position :: Front Axle]

LAGUNA II Grandtour (KG0/1_) 1.8 16V (2001 - 2005) 1783 ccm, 89 kw, 121 hp [Fitting Position :: Front Axle]

LAGUNA II Grandtour (KG0/1_) 1.8 16V (2001 - 2005) 1783 ccm, 86 kw, 117 hp [Fitting Position :: Front Axle]

LAGUNA II Grandtour (KG0/1_) 1.8 16V (KG0B, KG0M) (2001 - 2005) 1783 ccm, 88 kw, 120 hp [Fitting Position :: Front Axle]

LAGUNA II Grandtour (KG0/1_) 1.8 16V (KG0J) (2001 - 2005) 1783 ccm, 85 kw, 116 hp [Fitting Position :: Front Axle]

LAGUNA II Grandtour (KG0/1_) 1.9 dCi (2001 - 2007) 1870 ccm, 79 kw, 107 hp [Construction Year to :: 200706, Fitting Position :: Front Axle]

LAGUNA II Grandtour (KG0/1_) 1.9 dCi (2005 - 2007) 1870 ccm, 92 kw, 125 hp [Construction Year to :: 200706, Fitting Position :: Front Axle]

LAGUNA II Grandtour (KG0/1_) 1.9 dCi (2003 - 2007) 1870 ccm, 66 kw, 90 hp [Construction Year from :: 200403, Construction Year to :: 200706, Fitting Position :: Front Axle]

LAGUNA II Grandtour (KG0/1_) 1.9 dCi (KG05) (2004 - 2005) 1870 ccm, 68 kw, 92 hp [Fitting Position :: Front Axle]

LAGUNA II Grandtour (KG0/1_) 1.9 dCI (KG0E) (2001 - 2005) 1870 ccm, 77 kw, 105 hp [Fitting Position :: Front Axle]

LAGUNA II Grandtour (KG0/1_) 1.9 dCi (KG0E, KG0R) (2001 - 2005) 1870 ccm, 74 kw, 100 hp [Fitting Position :: Front Axle]

LAGUNA II Grandtour (KG0/1_) 1.9 dCi (KG0G) (2001 - 2007) 1870 ccm, 88 kw, 120 hp [Construction Year to :: 200706, Fitting Position :: Front Axle]

LAGUNA II Grandtour (KG0/1_) 1.9 dCi (KG12) (2005 - 2007) 1870 ccm, 85 kw, 116 hp [Construction Year to :: 200706, Fitting Position :: Front Axle]

LAGUNA II Grandtour (KG0/1_) 1.9 dCi (KG1A, KG1W, KG0G) (2005 - 2007) 1870 ccm, 81 kw, 110 hp [Construction Year to :: 200706, Fitting Position :: Front Axle]

LAGUNA II Grandtour (KG0/1_) 1.9 dCi (KG1V) (2005 - 2007) 1870 ccm, 96 kw, 130 hp [Construction Year to :: 200706, Fitting Position :: Front Axle]

LAGUNA II Grandtour (KG0/1_) 2.0 16V (KG00, KG0K, KG0W, KG0P) (2002 - 2007) 1998 ccm, 99 kw, 135 hp [Construction Year to :: 200706, Fitting Position :: Front Axle]

LAGUNA II Grandtour (KG0/1_) 2.0 16V (KG00, KG0K, KG0W, KG0P) (2004 - 2007) 1998 ccm, 98 kw, 133 hp [Construction Year to :: 200706, Fitting Position :: Front Axle]

LAGUNA II Grandtour (KG0/1_) 2.0 16V IDE (KG0N) (2001 - 2007) 1998 ccm, 103 kw, 140 hp [Construction Year to :: 200706, Fitting Position :: Front Axle]

Reviews

No customer reviews for the moment.

9 other products in the same category:

-10% -10%

Quick view

Reference: 23-0676C

Brand: METELLI

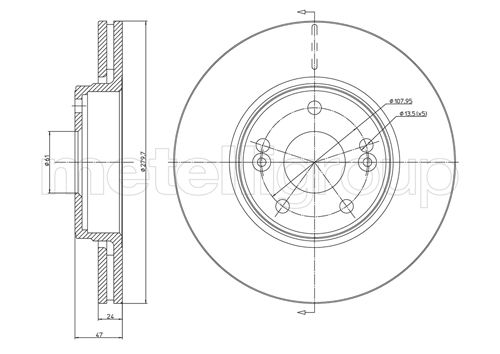

METELLI 23-0676C Brake Disc for RENAULT

Bolt Hole Circle Ø [mm] : 61,0, Brake Disc Thickness [mm] : 24,0, Brake Disc Type : Vented, Centering Diameter [mm] : 61,0, Height [mm] : 47,0, Number of Holes : 5, Outer Diameter [mm] : 280,0, Surface : Painted, Test Mark : ECE-R90

Review(s): 0

€34.70 €38.56

In stock

-10% -10%

Quick view

Reference: B130378

Brand: DENCKERMANN

DENCKERMANN B130378 Brake Disc for RENAULT

Bolt Hole Circle Ø [mm] : 108, Bore Diameter [mm] : 13,5, Brake Disc Thickness [mm] : 24, Brake Disc Type : Vented, Centering Diameter [mm] : 61, Height [mm] : 46,9, Inner Diameter [mm] : 139,8, Minimum thickness [mm] : 21,8, Number of Holes : 5, Outer Diameter [mm] : 280

Review(s): 0

€29.00 €32.22

In stock

-10% -10%

Quick view

Reference: 0 986 479 743

Brand: BOSCH

BOSCH 0 986 479 743 Brake Disc for RENAULT

Bolt Hole Circle Ø [mm] : 107,95, Bore Diameter up to [mm] : 13,5, Brake Disc Thickness [mm] : 24, Brake Disc Type : Vented, Centering Diameter [mm] : 61,01, fulfils ECE norm : ECE-R90, Height [mm] : 47, Machining : High-carbon, Manufacturer Restriction : Bosch, Minimum thickness [mm] : 21,8, Number of Holes : 5, Outer Diameter [mm] : 280, Supplementary...

Review(s): 0

€44.37 €49.30

In stock

-10% -10%

Quick view

Reference: 103078

Brand: KAMOKA

KAMOKA 103078 Brake Disc Front Axle for RENAULT

Fitting Position : Front Axle, Bolt Hole Circle Ø [mm] : 108, Brake Disc Thickness [mm] : 24, Brake Disc Type : Vented, Centering Diameter [mm] : 61, Height [mm] : 46, Machining : High-carbon, Number of Holes : 5, Outer Diameter [mm] : 280, Surface : Coated

Review(s): 0

€33.50 €37.22

Last items in stock

-10% -10%

Quick view

Reference: BG3733

Brand: DELPHI

DELPHI BG3733 Brake Disc for RENAULT

Brake Disc Thickness [mm] : 24, Brake Disc Type : Vented, Centering Diameter [mm] : 61, Height [mm] : 47, Minimum thickness [mm] : 21,8, Number of Holes : 5, Outer Diameter [mm] : 280, Surface : Oiled, Test Mark : E1 90R-02C0289/1616

Review(s): 0

€38.91 €43.23

In stock

-10% -10%

Quick view

Reference: 24.0124-0169.1

Brand: ATE

ATE 24.0124-0169.1 Brake Disc for RENAULT

Bolt Hole Circle Ø [mm] : 108,0, Bore Diameter [mm] : 13,5, Brake Disc Thickness [mm] : 24,0, Brake Disc Type : Vented, Centering Diameter [mm] : 61,0, Height [mm] : 46,9, Inner Diameter [mm] : 139,8, Machining : High-carbon, MAPP code available : , Minimum thickness [mm] : 21,8, Number of Holes : 5, Outer Diameter [mm] : 280,0, Surface : Coated, Test...

Review(s): 0

€61.64 €68.49

Last items in stock

-10% -10%

Quick view

Reference: DF4179

Brand: TRW

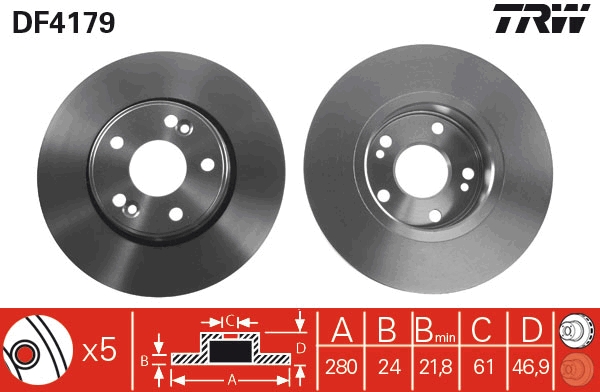

TRW DF4179 Brake Disc for RENAULT
