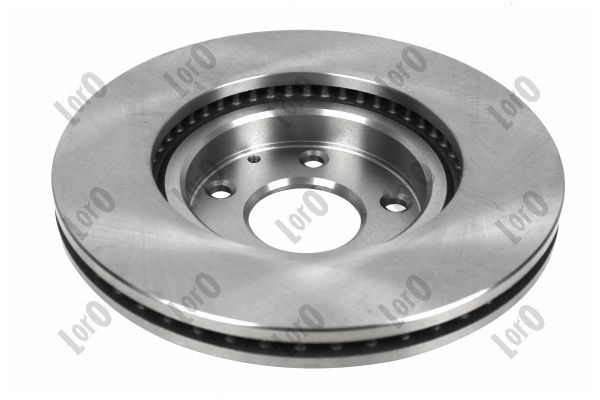

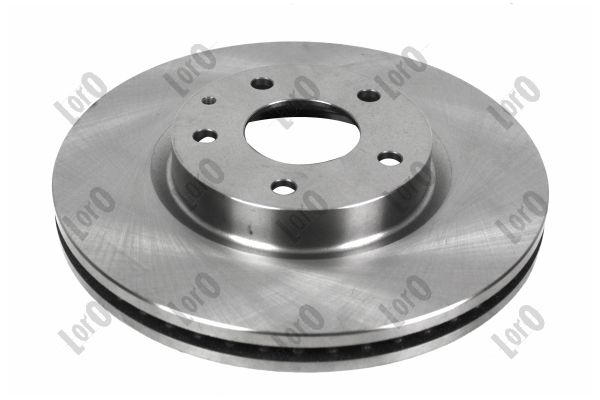

ABAKUS 231-03-199 Brake Disc for MAZDA

231-03-199
MAZDA ➤ 6 Estate | 6 Saloon | CX-5 | CX-5 Van
€32.98
€29.68 Save 10%
Tax included
Quantity
Last items in stock

Available in warehouses
W01
2 qty
  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Product Details
231-03-199
231-03-199
2 Items
New

Data sheet

Test Mark
ECE R90
Height [mm]
51,5
Required quantity
2
Brake Disc Type
Vented
Brake Disc Thickness [mm]
28
Outer Diameter [mm]
297
Number of Holes
5
Centering Diameter [mm]
68
Bolt Hole Circle Ø [mm]
114,3
Replace in pairs only
Assy./disassy. by qualified personnel required!
ABE
C33090ABE
ATE
24.0128-0277.1
BREMBO
09.C421.11
DELPHI
BG4562
DENCKERMANN
B130803
GALFER
B1G22802771
GALFER
G2128277
HART
250378
HELLA PAGID
8DD355119581
KAMOKA
103613
LPR
M5032V
MAXGEAR
19-2215
MAZDA
K01133251A
MAZDA
K01133251B
METELLI
23-1455C
MINTEX
MDC2536
NIPPARTS
N3303097
NK
203278
NK
313278
ROADHOUSE
6152010
sbs
1815203278
sbs
1815313278
TEXTAR
92257403

6 Estate (GJ, GL) 2.0 (GJEFW) (2013 - ) 1998 ccm, 107 kw, 146 hp [Fitting Position :: Front Axle]

6 Estate (GJ, GL) 2.0 (GJEFW) (2013 - ) 1998 ccm, 121 kw, 165 hp [Fitting Position :: Front Axle]

6 Estate (GJ, GL) 2.2 D (2012 - 2020) 2191 ccm, 110 kw, 150 hp [Construction Year from :: 201301, Fitting Position :: Front Axle]

6 Estate (GJ, GL) 2.2 D (GJ2FW, GJ692) (2012 - 2018) 2191 ccm, 129 kw, 175 hp [Fitting Position :: Front Axle]

6 Estate (GJ, GL) 2.2 D AWD (2015 - ) 2191 ccm, 129 kw, 175 hp [Fitting Position :: Front Axle]

6 Estate (GJ, GL) 2.2 D AWD (2012 - 2020) 2191 ccm, 110 kw, 150 hp [Fitting Position :: Front Axle]

6 Saloon (GJ, GL) 2.0 (GJ2, GL2, GL6) (2013 - ) 1998 ccm, 107 kw, 146 hp [Fitting Position :: Front Axle]

6 Saloon (GJ, GL) 2.0 (GJEFP) (2013 - ) 1998 ccm, 121 kw, 165 hp [Fitting Position :: Front Axle]

6 Saloon (GJ, GL) 2.2 D (GJ2FP) (2012 - 2020) 2191 ccm, 110 kw, 150 hp [Fitting Position :: Front Axle]

6 Saloon (GJ, GL) 2.2 D (GJ2FP, GJ1021, GJ1022, GL1021) (2012 - ) 2191 ccm, 129 kw, 175 hp [Fitting Position :: Front Axle]

6 Saloon (GJ, GL) 2.2 D 4WD (GJ2AP) (2014 - ) 2188 ccm, 129 kw, 175 hp [Fitting Position :: Front Axle]

CX-5 (KE, GH) 2.0 (2012 - 2017) 1998 ccm, 110 kw, 150 hp [Construction Year to :: 201508, Fitting Position :: Front Axle]

CX-5 (KE, GH) 2.0 (KE107) (2012 - 2017) 1998 ccm, 115 kw, 156 hp [Construction Year to :: 201508, Fitting Position :: Front Axle]

CX-5 (KE, GH) 2.0 (KE107, KEEFW) (2012 - 2017) 1998 ccm, 114 kw, 155 hp [Construction Year to :: 201508, Fitting Position :: Front Axle]

CX-5 (KE, GH) 2.0 (KEEFW) (2011 - 2017) 1998 ccm, 121 kw, 165 hp [Construction Year to :: 201508, Fitting Position :: Front Axle]

CX-5 (KE, GH) 2.0 AWD (2012 - 2017) 1998 ccm, 110 kw, 150 hp [Construction Year to :: 201508, Fitting Position :: Front Axle]

CX-5 (KE, GH) 2.0 AWD (KE107) (2012 - 2017) 1998 ccm, 115 kw, 156 hp [Fitting Position :: Front Axle]

CX-5 (KE, GH) 2.0 AWD (KE107, KEEAW) (2012 - 2017) 1998 ccm, 113 kw, 154 hp [Construction Year to :: 201508, Fitting Position :: Front Axle]

CX-5 (KE, GH) 2.0 AWD (KEEAW) (2011 - 2017) 1998 ccm, 118 kw, 160 hp [Construction Year to :: 201508, Fitting Position :: Front Axle]

CX-5 (KE, GH) 2.2 D (KE2FW) (2012 - 2017) 2191 ccm, 110 kw, 150 hp [Construction Year to :: 201508, Fitting Position :: Front Axle]

CX-5 (KE, GH) 2.2 D AWD (KE102) (2012 - 2017) 2191 ccm, 129 kw, 175 hp [Construction Year to :: 201508, Fitting Position :: Front Axle]

CX-5 (KE, GH) 2.2 D AWD (KE2AW) (2012 - 2017) 2191 ccm, 110 kw, 150 hp [Construction Year to :: 201508, Fitting Position :: Front Axle]

CX-5 (KE, GH) 2.5 AWD (2015 - 2017) 2488 ccm, 141 kw, 192 hp [Construction Year to :: 201508, Fitting Position :: Front Axle]

CX-5 Van (KE_) SKYACTIV-D (KEF9) (2015 - 2017) 2191 ccm, 110 kw, 150 hp [Construction Year to :: 201508, Fitting Position :: Front Axle]

CX-5 Van (KE_) SKYACTIV-D AWD (KEN9) (2015 - 2017) 2191 ccm, 110 kw, 150 hp [Construction Year to :: 201508, Fitting Position :: Front Axle]

CX-5 Van (KE_) SKYACTIV-D AWD (KEN9, KE2AW) (2015 - 2017) 2191 ccm, 129 kw, 175 hp [Construction Year to :: 201508, Fitting Position :: Front Axle]

CX-5 Van (KE_) SKYACTIV-G (KEC9) (2015 - 2017) 1998 ccm, 121 kw, 165 hp [Construction Year to :: 201508, Fitting Position :: Front Axle]

CX-5 Van (KE_) SKYACTIV-G AWD (KEK9) (2015 - 2017) 1998 ccm, 118 kw, 160 hp [Construction Year to :: 201508, Fitting Position :: Front Axle]

CX-5 Van (KE_) SKYACTIV-G AWD (KEN9) (2015 - 2017) 2488 ccm, 141 kw, 192 hp [Construction Year to :: 201508, Fitting Position :: Front Axle]
