ABAKUS 231-03-054 Brake Disc for TOYOTA

Reference 231-03-054

Brand ABAKUS

TOYOTA ➤ COROLLA | COROLLA Estate | COROLLA Saloon | COROLLA Verso

€19.75

€17.78 Save 10%

Tax included

Quantity

Available in warehouses

W01: 4 qty

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Product Details

Reference 231-03-054

MPN 231-03-054

In stock 4 Items

Condition New

Data sheet

Test Mark: ECE R90
Height [mm]: 49,3
Required quantity: 2
Brake Disc Type: Vented
Brake Disc Thickness [mm]: 25
Outer Diameter [mm]: 255
Number of Holes: 4
Centering Diameter [mm]: 55
Bolt Hole Circle Ø [mm]: 100
Replace in pairs only
Assy./disassy. by qualified personnel required!

ABE: C32134ABE
ATE: 24.0125-0155.1
BARUM: BAR25155
BENDIX - OLD: 562414B
BOSCH: 0 986 479 084
BOSCH: 0 986 479 085
BOSCH: 0 986 479 935
BREMBO: 09.5844.21
BREMBO: 09.5844.24
BREMBO: 09.9798.10
BREMBO: 09.9824.10
BREMBO: 09.9824.11
CAR: 1421139
CIFAM: 800637
CIFAM: 800640
DELPHI: BG3781
DENCKERMANN: B130271
FEBI BILSTEIN: 26185
FERODO: DDF1294
FERODO: DDF1309
FERODO: DDF13091
FERODO: DDF1314
FERODO: DDF13141
FTE: BS5379
FTE: BS5497
GALFER: B1G22501551
GALFER: G2125155
GRAF: DF29637
GRAF: DF29640
HART: 218277
HELLA PAGID: 8DD355110411
HELLA PAGID: 8DD355110421
HELLA PAGID: 8DD355110431
HELLA PAGID: 8DD355118621
KAMOKA: 1032588
LPR: T2001V
MAXGEAR: 19-0777
METELLI: 230637
METELLI: 230640
MINTEX: MDC1586
MINTEX: MDC1587
NIPPARTS: J3302135
NIPPARTS: J3302140
NIPPARTS: J3302142
NK: 204582
PAGID: 54258
PAGID: 54259
PAGID: 54259PRO
PEX: 140724
QUINTON HAZELL: BDC5379
QUINTON HAZELL: BSF5379
TEXTAR: 92125800
TEXTAR: 92125900
TEXTAR: 92125903
TEXTAR: 98200125801
TEXTAR: 98200125901
TOYOTA: 4351202070
TOYOTA: 4351213030
TOYOTA: 4351247020
TRW: DF4367
TRW: DF4403
TRW: DF7143
VALEO: 186877
VALEO: 197370
VALEO: 297257
VALEO: 297877
ZIMMERMANN: 590257400
ZIMMERMANN: 590257450
ZIMMERMANN: 590257500

TOYOTA

COROLLA (_E12_) 1.4 VVT-i (ZZE120_, ZZE120R) (2001 - 2007) 1398 ccm, 71 kw, 97 hp [Construction Year from :: 200406, Construction Year to :: 200405, Construction Year to :: 200610, Fitting Position :: Front Axle]

COROLLA (_E12_) 1.6 VVT-i (ZZE121_, ZZE121R) (2002 - 2006) 1598 ccm, 81 kw, 110 hp [Construction Year from :: 200406, Construction Year to :: 200405, Construction Year to :: 200610, Fitting Position :: Front Axle]

COROLLA (_E12_) 1.8 4WD (ZZE124) (2001 - 2007) 1794 ccm, 100 kw, 136 hp [Fitting Position :: Front Axle]

COROLLA Estate (_E12_) 1.3 (NZE120) (2002 - 2007) 1299 ccm, 65 kw, 88 hp [Construction Year from :: 200406, Construction Year to :: 200405, Fitting Position :: Front Axle]

COROLLA Estate (_E12_) 1.4 VVT-i (ZZE120_, ZZE120R) (2002 - 2007) 1398 ccm, 71 kw, 97 hp [Construction Year from :: 200406, Construction Year to :: 200405, Fitting Position :: Front Axle]

COROLLA Estate (_E12_) 1.6 VVT-i (ZZE121_, ZZE121R) (2002 - 2007) 1598 ccm, 81 kw, 110 hp [Construction Year from :: 200406, Construction Year to :: 200405, Construction Year to :: 200610, Fitting Position :: Front Axle]

COROLLA Saloon (_E12_) 1.4 VVT-i (ZZE120_, ZZE120R) (2001 - 2006) 1398 ccm, 71 kw, 97 hp [Construction Year from :: 200406, Construction Year to :: 200405, Fitting Position :: Front Axle]

COROLLA Saloon (_E12_) 1.6 VVT-i (ZZE121_, ZZE121R) (2001 - 2008) 1598 ccm, 81 kw, 110 hp [Construction Year from :: 200201, Construction Year from :: 200406, Construction Year to :: 200405, Construction Year to :: 200610, Fitting Position :: Front Axle]

COROLLA Verso (ZER_, ZZE12_, R1_) 1.6 (ZNR10_, ZNR10R) (2004 - 2009) 1598 ccm, 81 kw, 110 hp [Fitting Position :: Front Axle]

COROLLA Verso (_E12_) 1.6 VVT-i (ZZE121_, ZZE121R) (2001 - 2004) 1598 ccm, 81 kw, 110 hp [Fitting Position :: Front Axle]

Reviews

No customer reviews for the moment.

22 other products in the same category:

-10% -10%

Quick view

Reference: 60-02-207C

Brand: ASHIKA

ASHIKA 60-02-207C Brake Disc Front Axle for LIFAN TOYOTA

Fitting Position : Front Axle, Bolt Hole Circle Ø [mm] : 55, Brake Disc Thickness [mm] : 25, Brake Disc Type : Vented, for OE number : 4351202071, Height [mm] : 49, Minimum thickness [mm] : 23, Number of bores : 4, Outer Diameter [mm] : 255, Surface : Painted, Test Mark : ECE R90 Approved, Tightening Torque [Nm] : 103

Review(s): 0

€21.97 €24.41

In stock

-10% -10%

Quick view

Reference: 590.2575.20

Brand: ZIMMERMANN

ZIMMERMANN 590.2575.20 COAT Z Brake Disc for LIFAN TOYOTA TOYOTA (FAW)

Bolt Hole Circle Ø [mm] : 100, Brake Disc Thickness [mm] : 25, Brake Disc Type : internally vented, Centering Diameter [mm] : 55, Height [mm] : 49, Hole Arrangement/Number : 6/4, Machining : High-carbon, Minimum thickness [mm] : 23, Number of Holes : 6, Outer Diameter [mm] : 255, Rim Hole Number : 4, Surface : Coated, Test Mark : ECE R90 Approved, Weight...

Review(s): 0

€41.00 €45.55

In stock

-10% -10%

Quick view

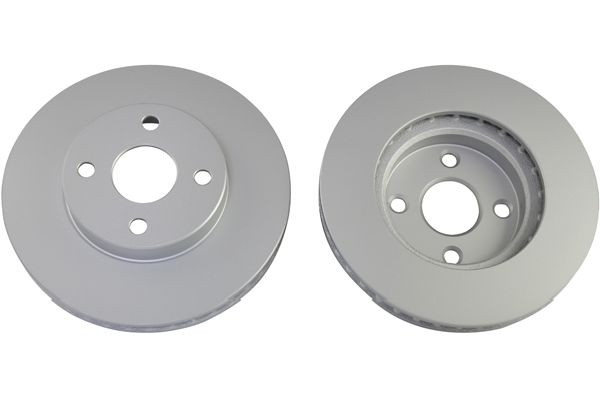

Reference: BR-9416-C
