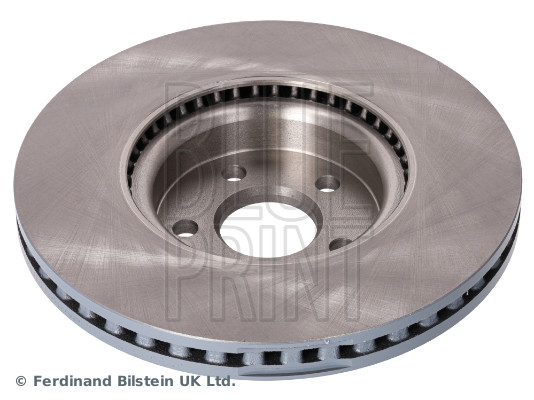

BLUE PRINT ADBP430166 Brake Disc Front Axle for FORD

Reference ADBP430166

Brand BLUE PRINT

Front Axle ➤ FORD ➤ TOURNEO CONNECT / GRAND TOURNEO CONNECT V408 MPV | TRANSIT CONNECT MPV | TRANSIT CONNECT V408 Box Body/MPV

€46.89

€42.20 Save 10%

Tax included

Quantity

Last items in stock

Available in warehouses

W01: 2 qty

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Product Details

Reference ADBP430166

EAN13 5057746394134

MPN ADBP430166

In stock 2 Items

Condition New

Data sheet

Rim Hole Number: 5
Fitting Position: Front Axle
Thickness [mm]: 49
Weight [kg]: 8,9
Brake Disc Type: Vented
Brake Disc Thickness [mm]: 25
Minimum thickness [mm]: 23
Outer Diameter [mm]: 320
Centering Diameter [mm]: 64
Bolt Hole Circle Ø [mm]: 108
Surface: Coated
Observe service information

0AMS: RUF308
A.B.S.: 18835
ABTEX: BD2146V
ALLIED NIPPON: AND7368
AP: 20414V
APEC: DSK3627
ATE: 24.0125-0224.1
BENDIX Braking: BDS2252
BRECO: BV9674
BREMBO: 09.C542.31
BREMSI: CD9053V
BREMSI: CD9066V
Burig: B011394
CAR: 1422135
COMLINE: ADC5083V
COMLINE: AND7368
DANAHER: DR14254
DELPHI: BG5216C
DON: PCD21812
EUROBRAKE: 58153125119
FAI AutoParts: FPBD1421
FEBI BILSTEIN: 184688
FERODO: DDF3053C
FERODO: DDF3066C
FORD: 2252905
FORD: 2252907
FORD: 2279489
FORD: 2279490
FORD MOTOR COMPANY: KV6C1125FB
FORD MOTOR COMPANY: KV6C1125FC
FORD MOTOR COMPANY: KV6C1125GB
FORD MOTOR COMPANY: KV6C1125GC
HELLA: 8DD 355 133-561
HELLA PAGID: 8DD355133561
JURATEK: FOR206
JURID: 563697JC1
KEY PARTS: KBD5348
MAXGEAR: 194865
MGA: D2285
MINTEX: MDC2995C
MOTAQUIP: LVBD2067
NAPA: NBD5975
National: NBD2234
NK: 3125119
OPEN PARTS: BDA289620
OPTIMAL: BS1046HC
PAGID: 56261
PAGID: 56261NC
PAGID: T1436N56261N00
PAGID: T2262N56261N00
PEMEBLA: BNXBDS2252
QUINTON HAZELL: BDC6266
QUINTON HAZELL: MBD6266
RAP BRAKES: RD1284
REMSA: 6254910
ROADHOUSE: 6254910
SIGMAUTO: DBD053V
SIGMAUTO: DBD066V
SKF: VKBD 81277 V1
SWAG: 33109508
TEXTAR: 2372301-3261-00
TEXTAR: 2573601-3261-00
TEXTAR: 92326103
TRISCAN: 8120161002C
VALEO: 673704
WOKING: D6254910
ZIMMERMANN: 250.5706.20

FORD

TOURNEO CONNECT / GRAND TOURNEO CONNECT V408 MPV 1.0 EcoBoost (2013 - 2022) 998 ccm, 74 kw, 100 hp

TOURNEO CONNECT / GRAND TOURNEO CONNECT V408 MPV 1.5 EcoBlue (2018 - 2022) 1499 ccm, 88 kw, 120 hp

TOURNEO CONNECT / GRAND TOURNEO CONNECT V408 MPV 1.5 EcoBlue (2018 - 2022) 1499 ccm, 74 kw, 101 hp

TOURNEO CONNECT / GRAND TOURNEO CONNECT V408 MPV 1.5 EcoBlue (2018 - 2022) 1499 ccm, 55 kw, 75 hp

TOURNEO CONNECT / GRAND TOURNEO CONNECT V408 MPV 1.5 TDCi (2015 - 2022) 1499 ccm, 74 kw, 101 hp

TOURNEO CONNECT / GRAND TOURNEO CONNECT V408 MPV 1.5 TDCi (2015 - 2022) 1499 ccm, 55 kw, 75 hp

TOURNEO CONNECT / GRAND TOURNEO CONNECT V408 MPV 1.5 TDCi (2015 - 2022) 1499 ccm, 88 kw, 120 hp

TOURNEO CONNECT / GRAND TOURNEO CONNECT V408 MPV 1.5 TDCi (2016 - 2022) 1499 ccm, 70 kw, 95 hp

TOURNEO CONNECT / GRAND TOURNEO CONNECT V408 MPV 1.6 EcoBoost (2013 - 2022) 1596 ccm, 110 kw, 150 hp

TOURNEO CONNECT / GRAND TOURNEO CONNECT V408 MPV 1.6 TDCi (2013 - 2022) 1560 ccm, 70 kw, 95 hp

TOURNEO CONNECT / GRAND TOURNEO CONNECT V408 MPV 1.6 TDCi (2013 - 2022) 1560 ccm, 85 kw, 115 hp

TOURNEO CONNECT / GRAND TOURNEO CONNECT V408 MPV 1.6 TDCi (2013 - 2022) 1560 ccm, 55 kw, 75 hp

TRANSIT CONNECT MPV 1.5 EcoBlue (2018 - ) 1499 ccm, 74 kw, 101 hp

TRANSIT CONNECT MPV 1.5 EcoBlue (2018 - ) 1499 ccm, 88 kw, 120 hp

TRANSIT CONNECT MPV 1.5 EcoBlue (2018 - ) 1499 ccm, 55 kw, 75 hp

TRANSIT CONNECT MPV 1.5 TDCi (2015 - ) 1499 ccm, 74 kw, 101 hp

TRANSIT CONNECT MPV 1.5 TDCi (2015 - ) 1499 ccm, 88 kw, 120 hp

TRANSIT CONNECT MPV 1.5 TDCi (2015 - ) 1499 ccm, 55 kw, 75 hp

TRANSIT CONNECT MPV 1.6 EcoBoost (2013 - ) 1596 ccm, 133 kw, 181 hp

TRANSIT CONNECT MPV 1.6 TDCi (2013 - ) 1560 ccm, 55 kw, 75 hp

TRANSIT CONNECT MPV 1.6 TDCi (2013 - ) 1560 ccm, 70 kw, 95 hp

TRANSIT CONNECT MPV 1.6 TDCi (2013 - ) 1560 ccm, 85 kw, 115 hp

TRANSIT CONNECT MPV 2.0 Flexifuel (2020 - ) 1999 ccm, 121 kw, 165 hp

TRANSIT CONNECT MPV 2.0 GDi (2020 - ) 1999 ccm, 121 kw, 165 hp

TRANSIT CONNECT MPV 2.0 GDi (2019 - 2019) 1999 ccm, 112 kw, 152 hp

TRANSIT CONNECT MPV 2.5 CNG (2013 - ) 2488 ccm, 126 kw, 171 hp

TRANSIT CONNECT MPV 2.5 Duratec (2013 - ) 2488 ccm, 126 kw, 171 hp

TRANSIT CONNECT MPV 2.5 LPG (2013 - ) 2488 ccm, 126 kw, 171 hp

TRANSIT CONNECT V408 Box Body/MPV 1.0 EcoBoost (2013 - ) 998 ccm, 74 kw, 100 hp

TRANSIT CONNECT V408 Box Body/MPV 1.0 Flexifuel (2021 - ) 998 ccm, 74 kw, 100 hp

TRANSIT CONNECT V408 Box Body/MPV 1.5 EcoBlue (2018 - ) 1499 ccm, 74 kw, 101 hp

TRANSIT CONNECT V408 Box Body/MPV 1.5 EcoBlue (2018 - ) 1499 ccm, 88 kw, 120 hp

TRANSIT CONNECT V408 Box Body/MPV 1.5 EcoBlue (2018 - ) 1499 ccm, 55 kw, 75 hp

TRANSIT CONNECT V408 Box Body/MPV 1.5 TDCi (2015 - ) 1499 ccm, 74 kw, 101 hp

TRANSIT CONNECT V408 Box Body/MPV 1.5 TDCi (2015 - ) 1499 ccm, 88 kw, 120 hp

TRANSIT CONNECT V408 Box Body/MPV 1.5 TDCi (2015 - ) 1499 ccm, 55 kw, 75 hp

TRANSIT CONNECT V408 Box Body/MPV 1.5 TDCi (2016 - ) 1499 ccm, 70 kw, 95 hp

TRANSIT CONNECT V408 Box Body/MPV 1.6 EcoBoost (2013 - ) 1596 ccm, 110 kw, 150 hp

TRANSIT CONNECT V408 Box Body/MPV 1.6 EcoBoost (2013 - ) 1596 ccm, 133 kw, 181 hp

TRANSIT CONNECT V408 Box Body/MPV 1.6 TDCi (2013 - ) 1560 ccm, 85 kw, 115 hp

TRANSIT CONNECT V408 Box Body/MPV 1.6 TDCi (2013 - ) 1560 ccm, 70 kw, 95 hp

TRANSIT CONNECT V408 Box Body/MPV 1.6 TDCi (2013 - ) 1560 ccm, 55 kw, 75 hp

TRANSIT CONNECT V408 Box Body/MPV 2.0 Flexifuel (2020 - ) 1999 ccm, 121 kw, 165 hp

TRANSIT CONNECT V408 Box Body/MPV 2.0 GDi (2020 - ) 1999 ccm, 121 kw, 165 hp

TRANSIT CONNECT V408 Box Body/MPV 2.0 GDi (2019 - 2019) 1999 ccm, 112 kw, 152 hp

TRANSIT CONNECT V408 Box Body/MPV 2.5 CNG (2013 - 2023) 2488 ccm, 126 kw, 171 hp

TRANSIT CONNECT V408 Box Body/MPV 2.5 Duratec (2013 - ) 2488 ccm, 126 kw, 171 hp

TRANSIT CONNECT V408 Box Body/MPV 2.5 LPG (2013 - 2023) 2488 ccm, 126 kw, 171 hp
